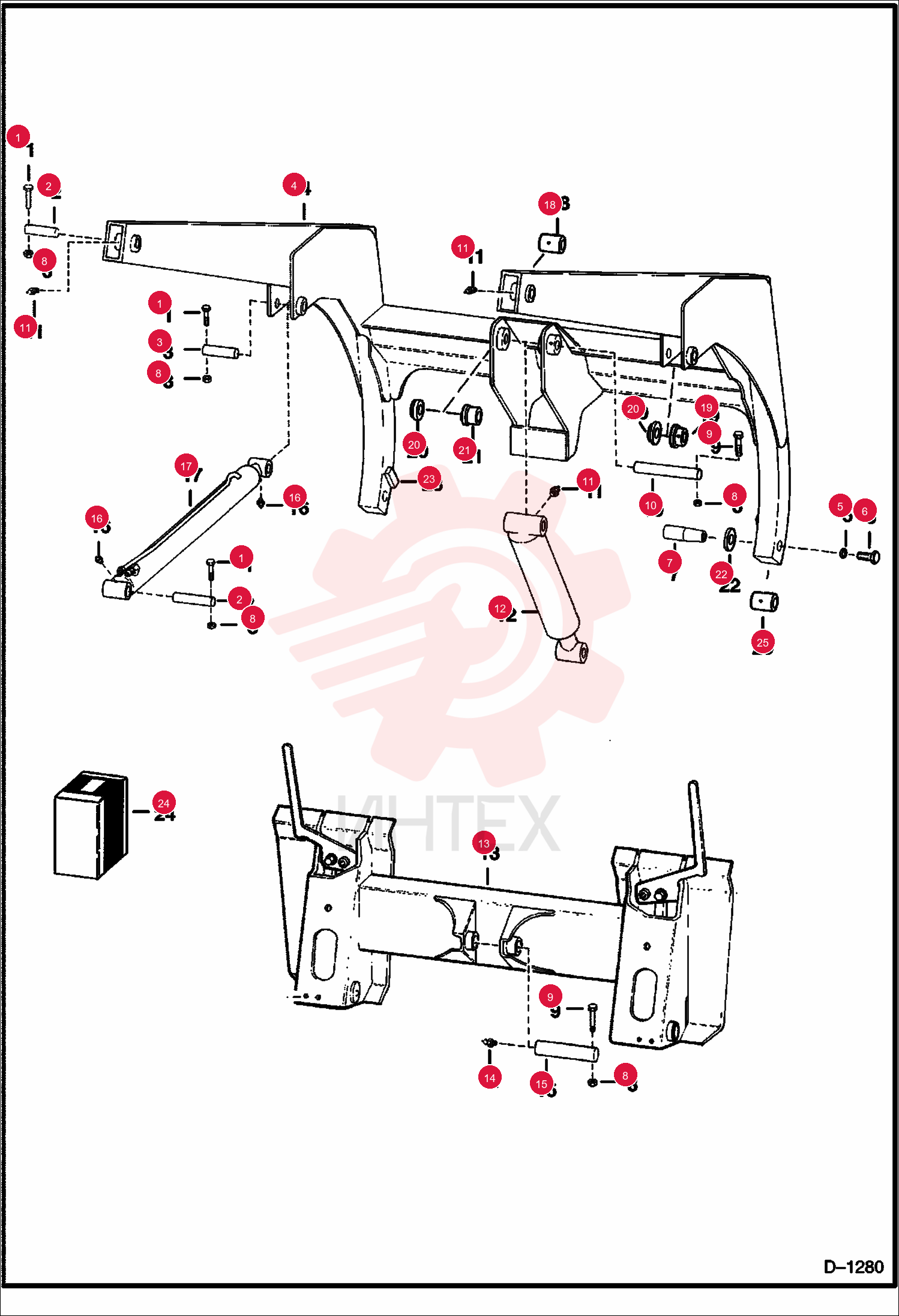

BOLT 17C640 (2)

BOLT 17C640 (2)

BOLT 17C640 (2)

1 17C640

  • 17C640 - BOLT

2 6547595

  • 6547595 - PIN

3 6547593

  • 6547593 - PIN
  • PIVOT

4 6555455

  • 6555455 - WASHER

5 17C1020

  • 17C1020 - BOLT 5
  • 1.25" (31
  • 8 mm) long

6 17C1064

  • 17C1064 - BOLT 5
  • 4" (101
  • 6 mm) long

7 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

8 17C632

  • 17C632 - BOLT 5

9 6704288

  • 6704288 - PIN
  • PIVOT
  • Was 6553061

10 10H35

  • 10H35 - FTG GREASE STRAIGHT

11 10H25

  • 10H25 - FTG GREASE STRAIGHT

12 6703572

  • 6703572 - PIN
  • PIVOT
  • Was 6560704

13 11H25

  • 11H25 - FITTING10

14 6578356

  • 6578356 - BUSHING
  • Weld On - Was 6557097

15 6555987

  • 6555987 - BUSHING
  • weld on

16 6555989

  • 6555989 - BUSHING
  • Weld On

17 6557095

  • 6557095 - BUSHING
  • Weld On

18 27E18

  • 27E18 - WASHER 5

19 6568778

  • 6568778 - STOP
  • Weld On

20 6707521

  • 6707521 - KIT
  • PIN

21 6714874

  • 6714874 - BUSHING
  • WELD-ON
  • weld-on-W/tapered hole - 1.25"(31
  • 8 mm)
