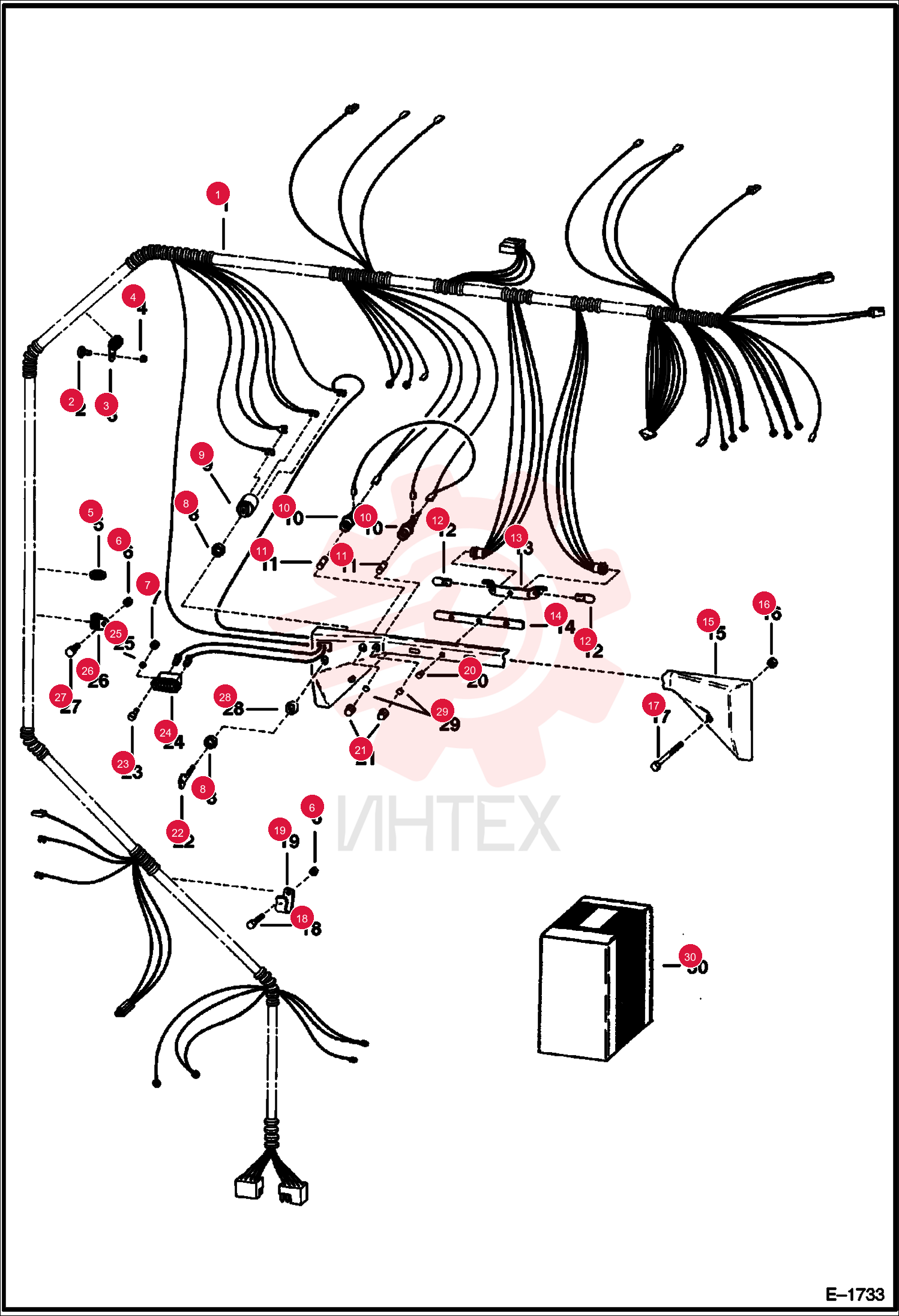

HARNESS 6567802
1 6567802
- 6567802 - HARNESS
2 25G412
- 25G412 - SCREW SKT BTN HD CAP
3 30H55
- 30H55 - CLIP
- Was 30H000054B
4 83D4
- 83D4 - LKNUT HEX FLG GR8
5 6632215
- 6632215 - GROMMET
6 85D5
- 85D5 - NUT PRETRQ HEX LOCK
7 12D6
- 12D6 - NUT HEX MACH SCREW
8 6598721
- 6598721 - NUT
- For Ref. 9 (NLA/6519592 Switch)
9 6674202
- 6674202 - NUT
- For Ref. 9 (6665606 Switch)
10 6665606
- 6665606 - SWITCH
- IGN
11 6513469
- 6513469 - HOLDER
- FUSE
- fuse - W/Ref. 21
12 1319451
- 1319451 - FUSE 5
13 6513468
- 6513468 - #168 BULB
14 6558242
- 6558242 - HOLDER
15 6560699
- 6560699 - LENS
- Was 6564785
16 83D5
- 83D5 - LKNUT HEX FLG GR8
17 17C572
- 17C572 - BOLT
18 17C512
- 17C512 - BOLT 5
19 31H38
- 31H38 - CLAMP
20 6514742
- 6514742 - RIVET
21 6514642
- 6514642 - CAP 5
22 6693241
- 6693241 - KEY (2)
- ignition - single key W/O ring
23 6512809
- 6512809 - KEYSET 10
- For Ref. 9 (NLA/6519592 Switch)
24 85G608
- 85G608 - SCREW
25 6664886
- 6664886 - METER HOUR
- Was 6631657
26 12E6
- 12E6 - WASHER
27 30H41
- 30H41 - CLIP
28 10C512
- 10C512 - BOLT SQ NECK RND HD
- Was 6553808
29 6563431
- 6563431 - BRK START
- For Ref. 9 (NLA/6519592 Switch)
30 6709172
- 6709172 - PLATE 10
- For Ref. 9 (6665606 Switch)
31 6514643
- 6514643 - GASKET
32 6724282
- 6724282 - KIT
- SWITCH IGN
- Ref. 9
- 22 & 28
