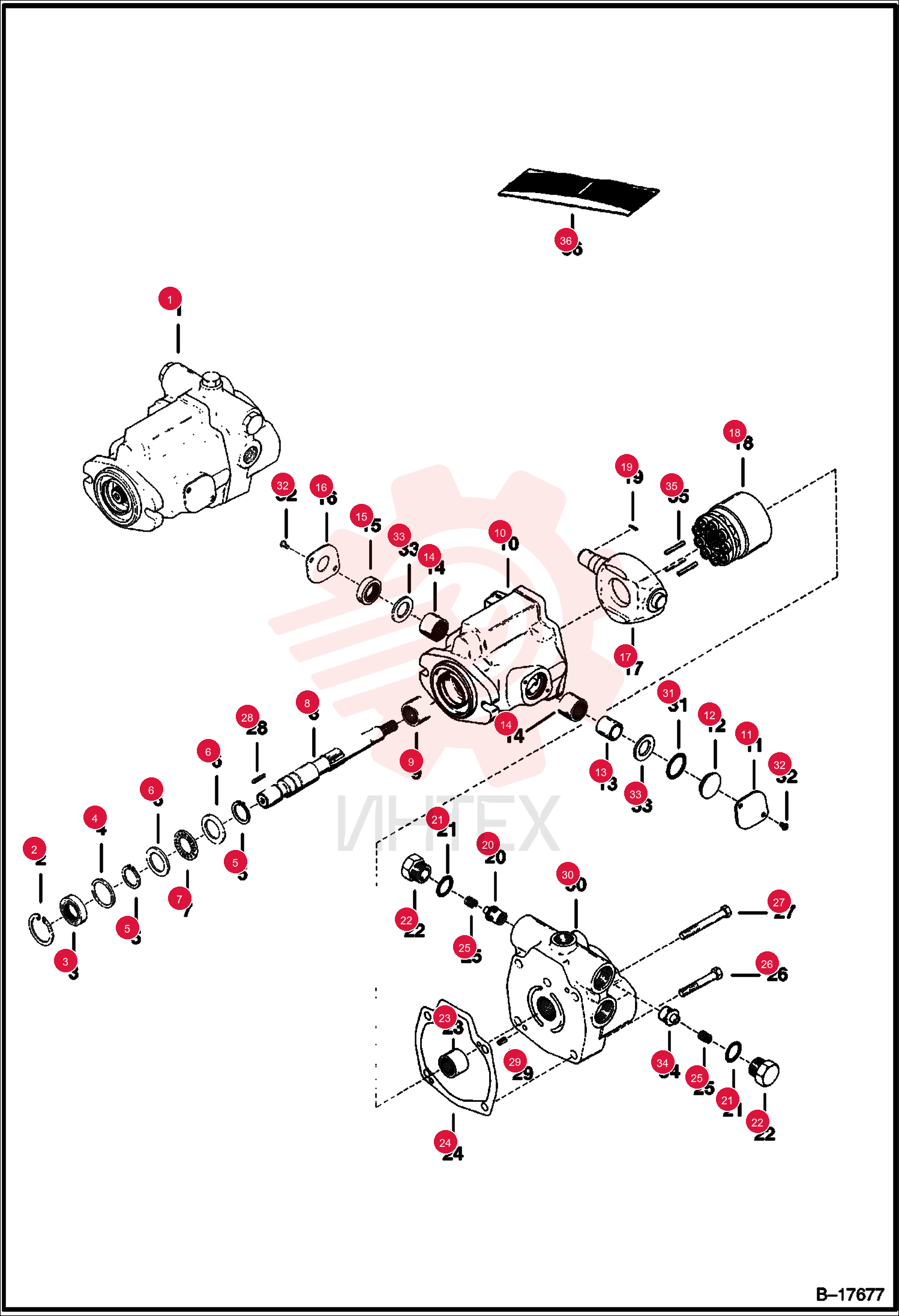

PUMP REAR 6632065

PUMP REAR 6632065

PUMP REAR 6632065

1 6632065

  • 6632065 - PUMP REAR
  • new

2 661415

  • 661415 - SNAP RING

3 6598875

  • 6598875 - WASHER

4 710776

  • 710776 - RING
  • RETAINER

5 6598878

  • 6598878 - RACE

6 3292657

  • 3292657 - BEARING
  • thrust

7 851239

  • 851239 - BEARING
  • W/Ref. 9

8 6598887

  • 6598887 - COVER

9 6648789

  • 6648789 - COVER
  • Was 6598888

10 6598883

  • 6598883 - RACE

11 654387

  • 654387 - BEARING

12 6598886

  • 6598886 - COVER

13 6598892

  • 6598892 - CAM

14 6598893

  • 6598893 - ROTAT.KIT
  • rotating

15 6630170

  • 6630170 - KEY

16 6632063

  • 6632063 - VALVE
  • RELIEF

17 6513479

  • 6513479 - PLUG
  • W/Ref. 21 & 25

18 654386

  • 654386 - BEARING

19 17C532

  • 17C532 - BOLT 5

20 17C540

  • 17C540 - BOLT

21 6598880

  • 6598880 - KEY

22 214028

  • 214028 - PIN

23 6598881

  • 6598881 - SCREW

24 6598876

  • 6598876 - WASHER

25 6654126

  • 6654126 - PIN

26 6598896

  • 6598896 - KIT
  • SEAL
  • Ref. 2
  • 3
  • 5
  • 15
  • 21
  • 24 & 31
