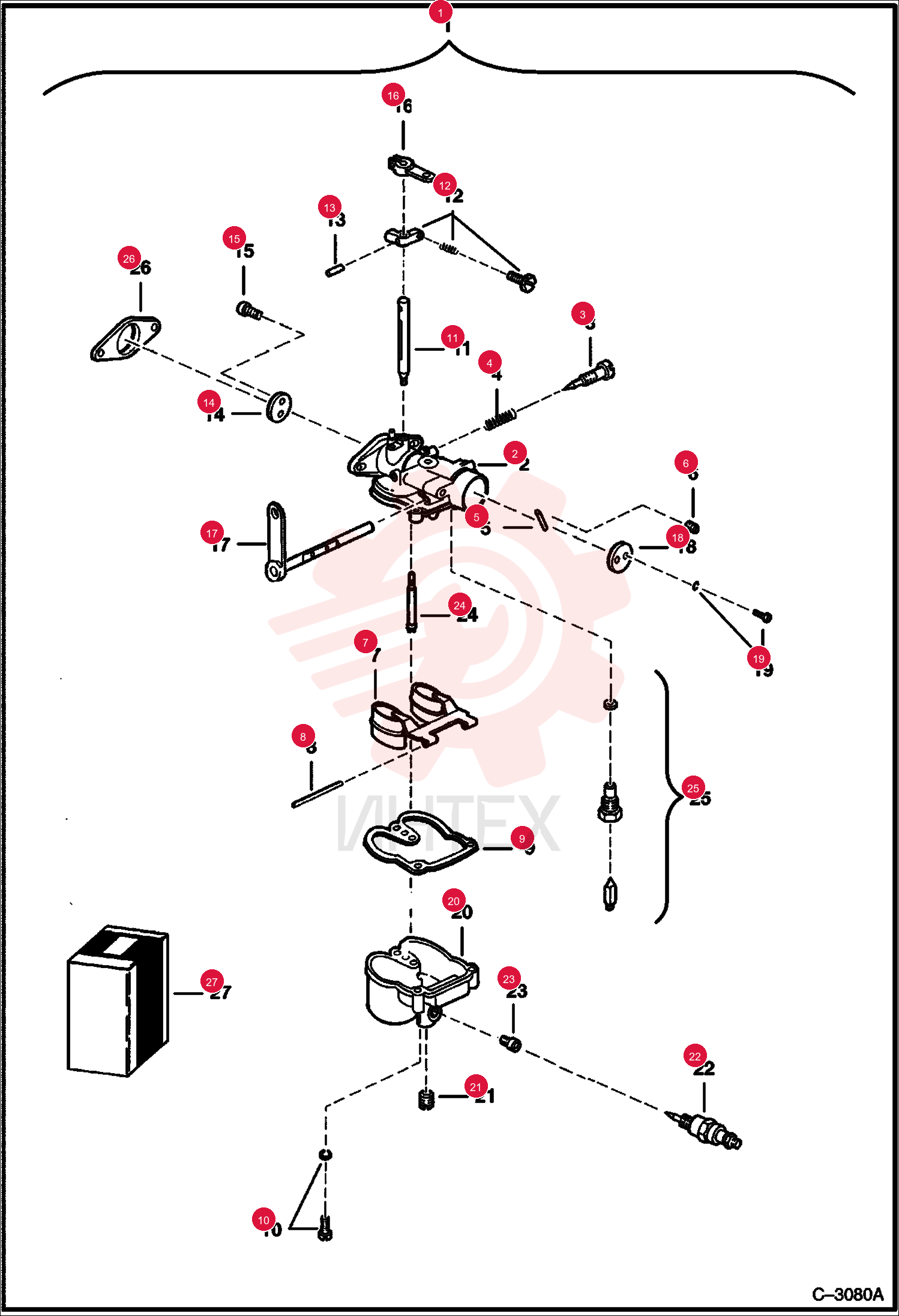

CARBURETOR 6654896

CARBURETOR 6654896

CARBURETOR 6654896

1 6654896

  • 6654896 - CARBURETOR

2 6516748

  • 6516748 - NEEDLE IDLE
  • adj.

3 6516749

  • 6516749 - SPRING

4 6649873

  • 6649873 - VENT TUBE

5 6649874

  • 6649874 - SCREW

6 6599349

  • 6599349 - FLOAT

7 6649875

  • 6649875 - AXLE

8 6649876

  • 6649876 - SCREW
  • includes washer

9 6649877

  • 6649877 - SHAFT
  • throttle

10 6649878

  • 6649878 - LEVER

11 6649879

  • 6649879 - PIN

12 6649880

  • 6649880 - PLATE
  • throttle

13 6649881

  • 6649881 - LEVER

14 6649882

  • 6649882 - SHAFT
  • choke

15 6649883

  • 6649883 - PLATE
  • choke

16 6649884

  • 6649884 - SCREW
  • includes washer

17 16F2

  • 16F2 - PLUG

18 6649886

  • 6649886 - SOLENOID

19 6662916

  • 6662916 - MAIN JET
  • # 22

20 6649887

  • 6649887 - MAIN JET
  • # 19

21 6649888

  • 6649888 - JET

22 6649889

  • 6649889 - NEEDLE AND SEAT

23 6578210

  • 6578210 - GASKET
  • Was 6656484

24 6649891

  • 6649891 - KIT
  • REPAIR
  • Ref. 3
  • 8
  • 9
  • 25 & 26

25 6513448

  • 6513448 - KIT
  • GASKET
  • Was 6649895
