Bobcat
/
542
/

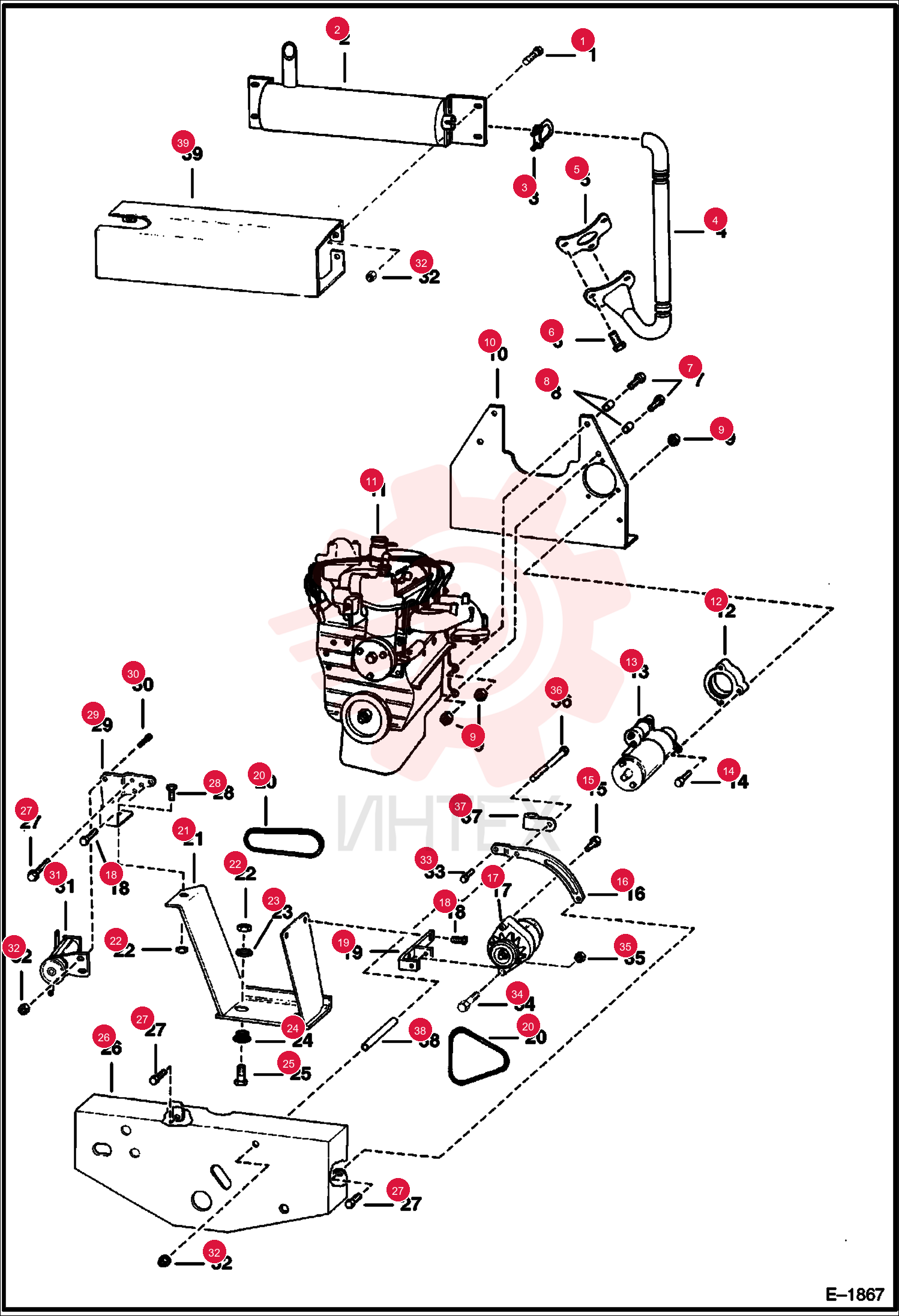

SCREW THD ROLLING TT 84G3112

SCREW THD ROLLING TT 84G3112

SCREW THD ROLLING TT 84G3112

1 84G3112

  • 84G3112 - SCREW THD ROLLING TT

2 6578186

  • 6578186 - MUFFLER
  • spark arrestor

3 710706

  • 710706 - CLAMP

4 6563005

  • 6563005 - BOLT

5 17C624

  • 17C624 - BOLT 5

6 6578557

  • 6578557 - GUIDE

7 61D6

  • 61D6 - NUT HEX FINISHED GR5

8 6578231

  • 6578231 - MOUNT

9 6578160

  • 6578160 - SPACER

10 17C640

  • 17C640 - BOLT

11 35C516

  • 35C516 - SCREW HEX HD W/F GR5

12 6578349

  • 6578349 - RETAINER

13 6578345

  • 6578345 - MOUNT
  • BRACKET

14 6578639

  • 6578639 - BELT

15 6578246

  • 6578246 - MOUNT
  • BRACKET

16 61D8

  • 61D8 - NUT 5

17 6515817

  • 6515817 - WASHER

18 6560633

  • 6560633 - DAMPER
  • VIBRATION
  • Rubber

19 17C832

  • 17C832 - BOLT

20 6578350

  • 6578350 - SHIELD

21 84G3710

  • 84G3710 - SCREW

22 17C820

  • 17C820 - BOLT 5

23 6578348

  • 6578348 - BRACKET

24 17C620

  • 17C620 - BOLT

25 57D6

  • 57D6 - NUT HEX FLNG GR8

26 4CM816

  • 4CM816 - SCREW HEX HD 8.8
  • Was 1CM816

27 17C648

  • 17C648 - SCREW HEX CAP

28 85D6

  • 85D6 - NUT PRETRQ HEX LOCK

29 17C656

  • 17C656 - BOLT

30 30H46

  • 30H46 - CLIP

31 6578600

  • 6578600 - SPACER

32 6578854

  • 6578854 - SHIELD
