Bobcat
/
542
/

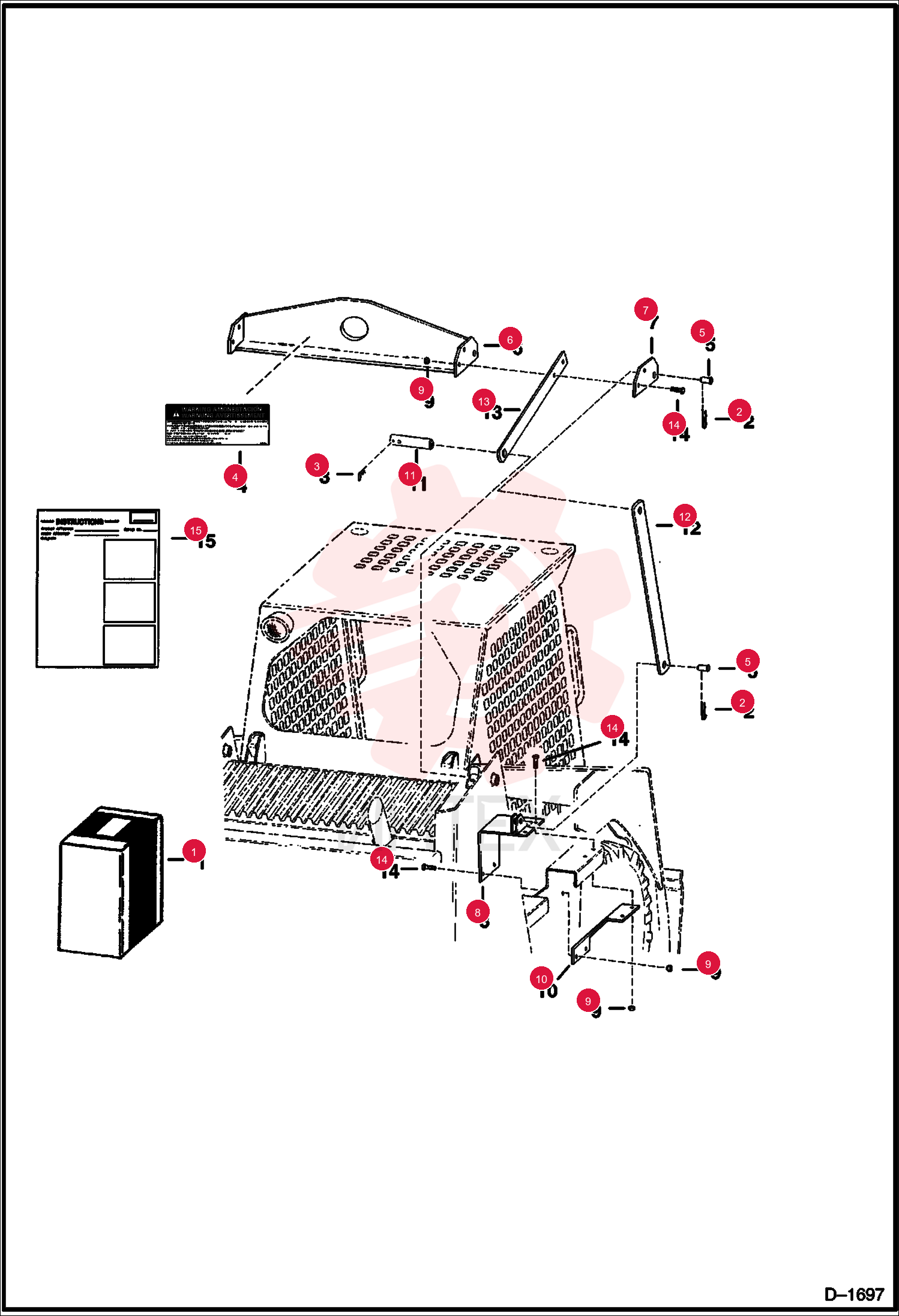

KIT, LIFT 6568281

KIT, LIFT 6568281

KIT, LIFT 6568281

1 6568281

  • 6568281 - KIT
  • LIFT
  • Ref. 2-14

2 1320075

  • 1320075 - PIN
  • COTTER

3 6005562

  • 6005562 - PIN

4 6565932

  • 6565932 - DECAL
  • WARNING

5 17C824

  • 17C824 - BOLT 5

6 6568182

  • 6568182 - ANGLE

7 6568184

  • 6568184 - MOUNT

8 6568188

  • 6568188 - MOUNT
  • R.H.

9 6568189

  • 6568189 - MOUNT
  • L.H.

10 85D8

  • 85D8 - NUT PRETRQ HEX LOCK

11 6568190

  • 6568190 - BRACE

12 6568193

  • 6568193 - PIN

13 6568278

  • 6568278 - ARM

14 6568279

  • 6568279 - ARM

15 6567838

  • 6567838 - PIN

16 6566946ENUS

  • 6566946ENUS - INSTRUCTIONS
  • Was 6566946
