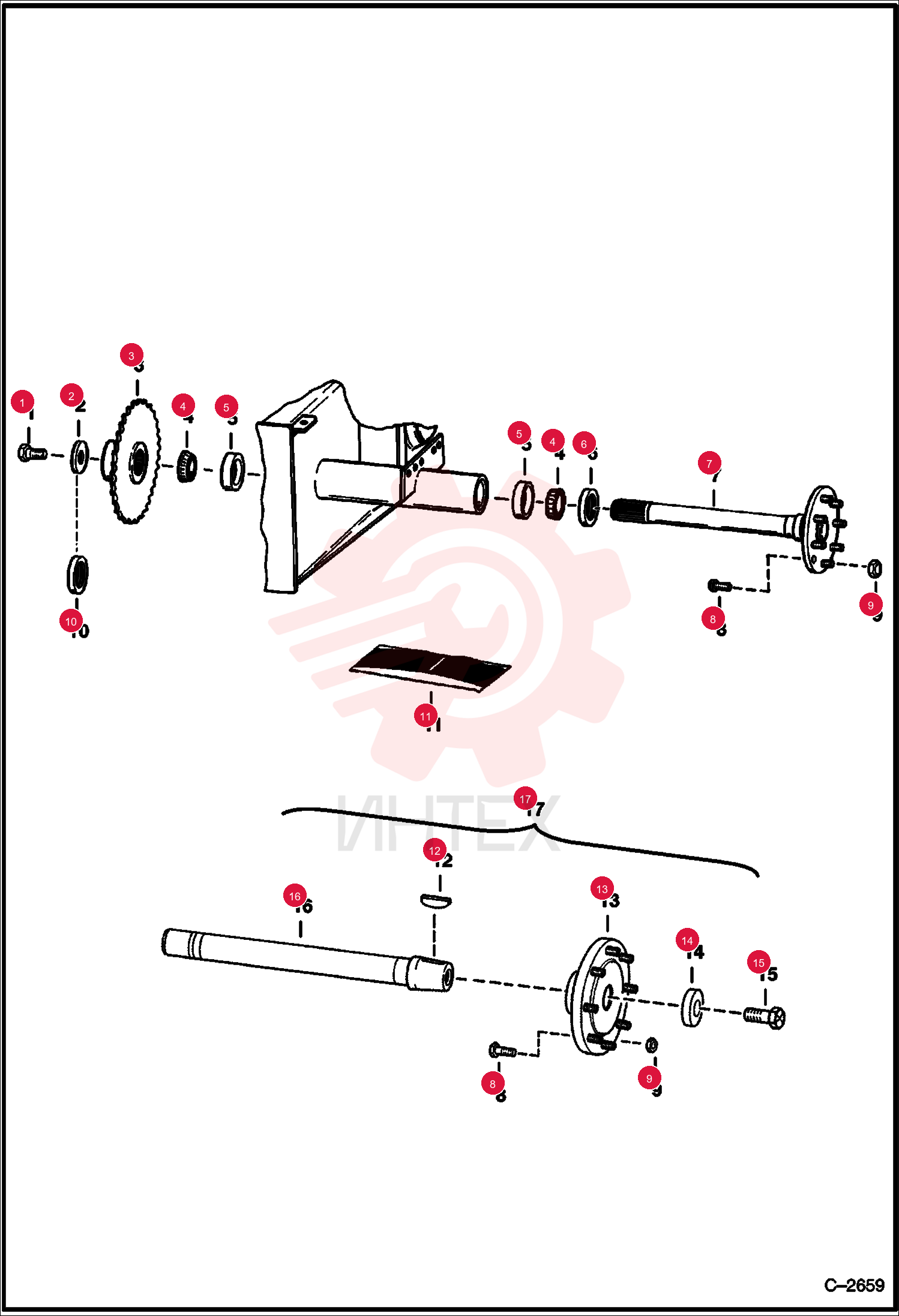

BOLT 18C1224
1 18C1224
- 18C1224 - BOLT
2 6552871
- 6552871 - WASHER AXLE
3 6548891
- 6548891 - SPROCKET
4 3974866
- 3974866 - BEARING
- AXLE
- W/Ref. 5 - Was 6511331
5 6660126
- 6660126 - SEAL
6 6709170
- 6709170 - BOLT WHEEL
- 9/16'' - Was 6559502
7 6564669
- 6564669 - NUT WHEEL
- 9/16'' - Was 6519169
8 6568835
- 6568835 - WASHER
- recessed - Use to Take Up .020 End Play of Axle
9 6563606
- 6563606 - WASHER
- recessed - Use to Take Up .005 or .010 End Play on Axle
10 6568974
- 6568974 - KIT
- AXLE SEAL
- - axle seal
11 6J1664
- 6J1664 - KEY WOODRUFF
12 6706038
- 6706038 - HUB
- W/Ref. 8 - (9/16" STUDS)
13 6716843
- 6716843 - WASHER
- Was 6569461
14 18C1636
- 18C1636 - SCREW HEX HD GR8
- 2.25 in. (57
- 2 mm) long - For Ref. 16 W/ 1.65 in. (41
- 9 mm) deep threads
15 18C1632
- 18C1632 - BOLT
- 2 in. (50
- 8 mm) long - For Ref. 16 W/ 1.5 in. (38
- 1 mm) deep threads
16 6706039
- 6706039 - AXLE
17 6722927
- 6722927 - KIT
- AXLE
- W/Ref. 8 & 12 - 16 - Assemble Kit per illustration and torque Ref. 15 to 175-190 Ft. lbs
