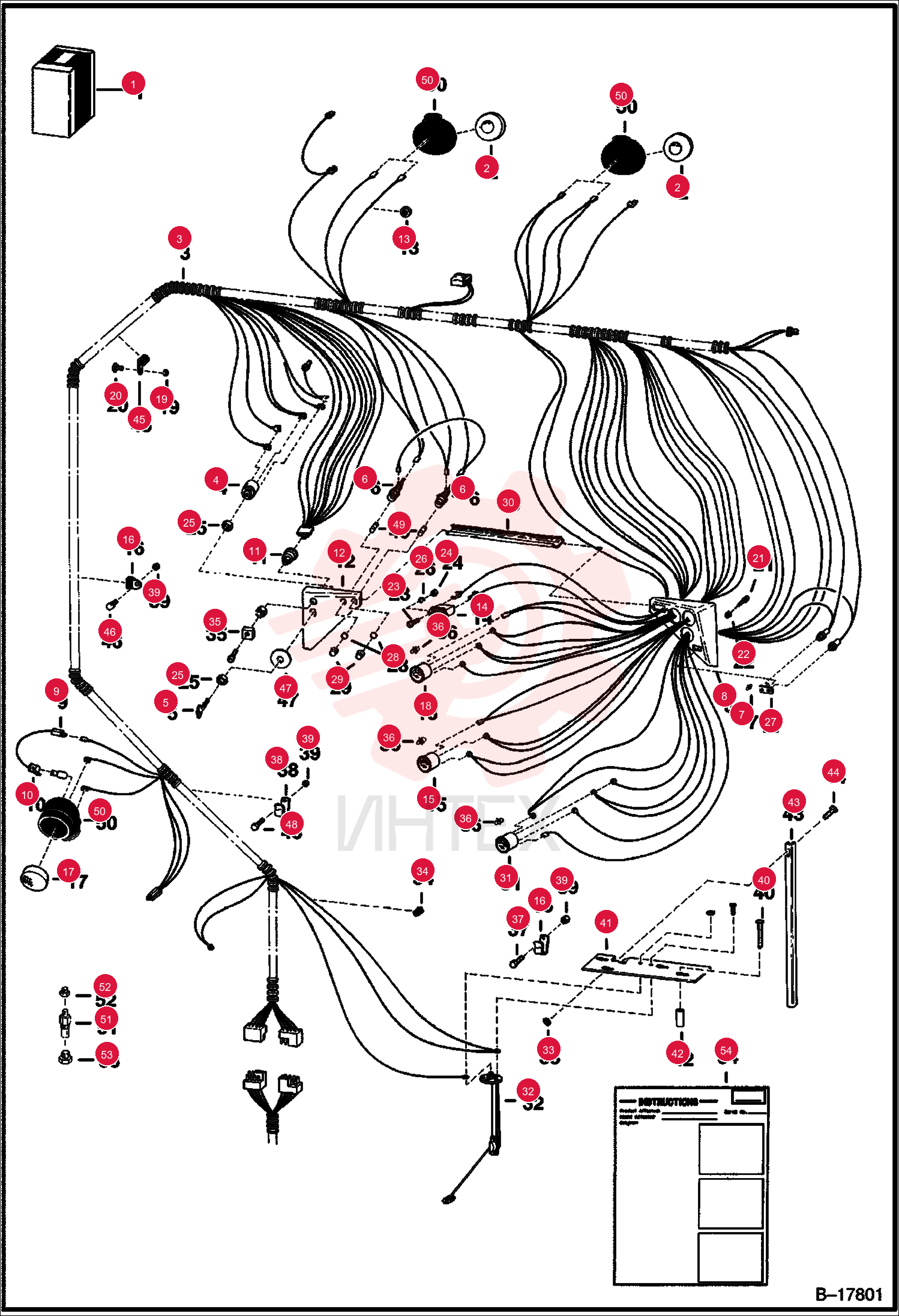

LIT/GAU KIT 6700618
1 6700618
- 6700618 - LIT/GAU KIT
- Ref. 2-54
2 6557486
- 6557486 - LAMP
3 6572060
- 6572060 - HARNESS
4 6519592
- 6519592 - SWITCH
- Ref. 5 & 25
5 6512809
- 6512809 - KEYSET 10
6 6513469
- 6513469 - HOLDER
- FUSE
- fuse
7 6572065
- 6572065 - LAMP
8 6572053
- 6572053 - PANEL
- RH
9 898731
- 898731 - LAMP
10 6564907
- 6564907 - SOCKET ASSY LAMP
11 6512808
- 6512808 - SWITCH-LT
12 6572054
- 6572054 - PANEL
- LH
13 6557493
- 6557493 - GROMMET
14 6664886
- 6664886 - METER HOUR
- Was 6631657
15 6669664
- 6669664 - GAUGE VOLT
- W/O clamp
16 30H41
- 30H41 - CLIP
17 6563740
- 6563740 - LIGHT
- SEALED BEAM
18 6669665
- 6669665 - GAUGE FUEL
- W/O clamp
19 83D4
- 83D4 - LKNUT HEX FLG GR8
20 25G412
- 25G412 - SCREW SKT BTN HD CAP
21 6702642
- 6702642 - SCREW WSHRD PLASTITE
- Was 84G003112B
22 83D5
- 83D5 - LKNUT HEX FLG GR8
23 65G608
- 65G608 - SCREW PNH SLTD TAP
24 12D6
- 12D6 - NUT HEX MACH SCREW
25 6598721
- 6598721 - NUT
26 12E6
- 12E6 - WASHER
27 6572056
- 6572056 - LENS
28 6514643
- 6514643 - GASKET
29 6514642
- 6514642 - CAP 5
30 6572066
- 6572066 - 6578780
31 6631649
- 6631649 - TEMPGAUGE
- - engine temp.
32 6669663
- 6669663 - GAUGE COOLANT TEMP
- eng temp - W/O clamp
33 6568175
- 6568175 - SENDER
- FUEL
- fuel
34 12D10
- 12D10 - NUT
35 6632215
- 6632215 - GROMMET
36 6599781
- 6599781 - KNOB
- light switch
37 6599696
- 6599696 - SOCK AND BULB
- assy.
38 895771
- 895771 - #161 BULB
39 17C512
- 17C512 - BOLT 5
40 31H38
- 31H38 - CLAMP
41 85D5
- 85D5 - NUT PRETRQ HEX LOCK
42 89G544
- 89G544 - SCREW
43 6567896
- 6567896 - SHIELD
44 6567898
- 6567898 - SPACER
45 6567897
- 6567897 - HOUSING
46 85G1008
- 85G1008 - SCREW
47 30H54
- 30H54 - CLIP
48 10C512
- 10C512 - BOLT SQ NECK RND HD
- Was 6553808
49 6563431
- 6563431 - BRK START
50 84G3712
- 84G3712 - SCREW THD ROLLING TT
51 1319451
- 1319451 - FUSE 5
52 6558142
- 6558142 - HOUSING
- LAMP
53 6658818
- 6658818 - SENDER TEMP
- eng temp - threaded connector
54 6564767
- 6564767 - ADAPTOR
55 40K8
- 40K8 - PLUG
56 6720172
- 6720172 - INSTRUCTIONS
