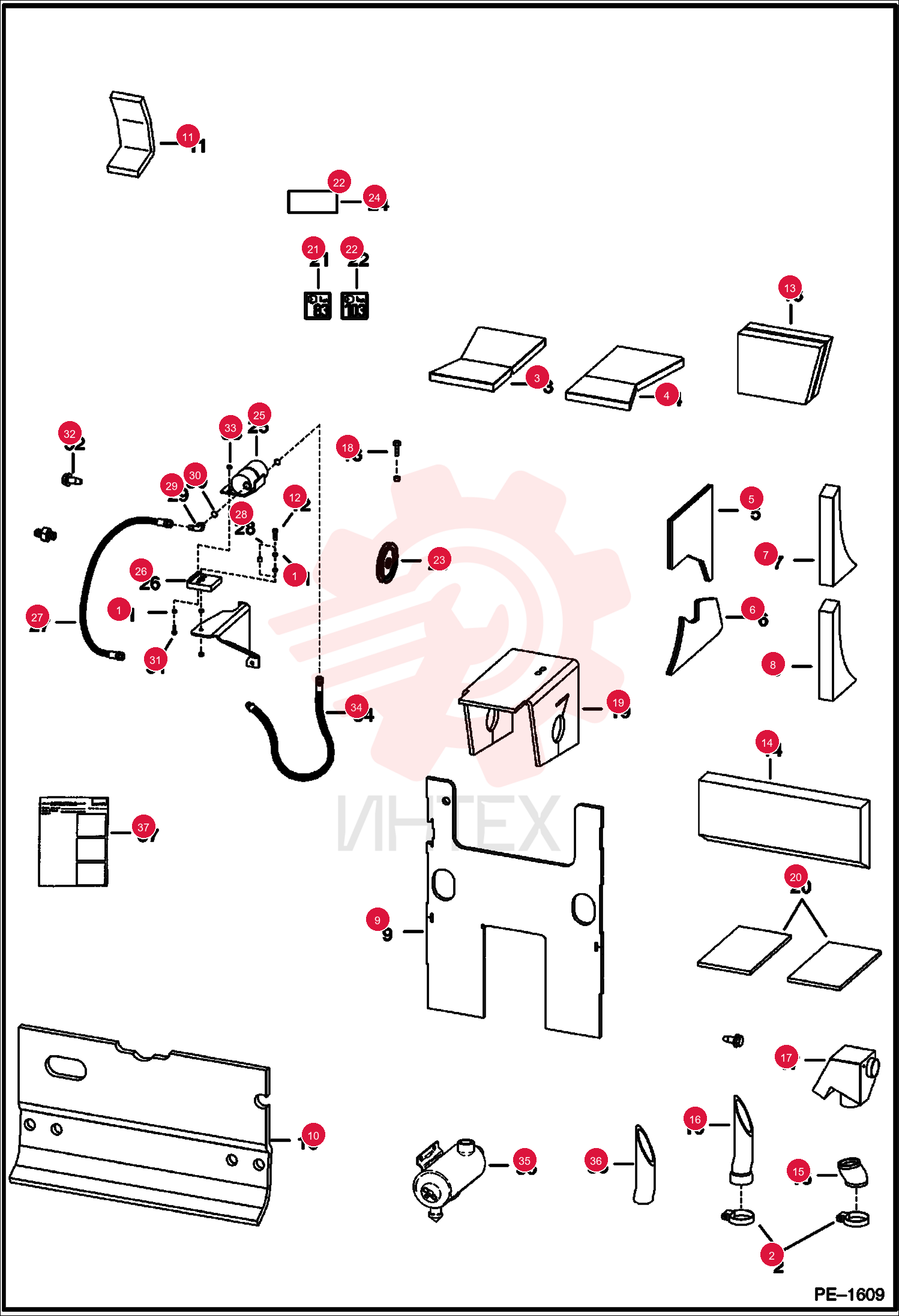

BUSHING 6562619 (2)
1 6562619
- 6562619 - BUSHING
2 42H44
- 42H44 - HOSECLAM5
- Use W/Ref. 15 & 16
3 42H52
- 42H52 - CLAMP
- Use W/Ref. 15 & 16
4 6732722
- 6732722 - INSULATION
- cross member - L.H. - Was 6704721
5 6732723
- 6732723 - INSULATION
- cross member - R.H. - Was 6704722
6 6719332
- 6719332 - INSULATION
- BLWR HSG
- blower housing
7 6704769
- 6704769 - INSULATION
- blower housing
8 6705849
- 6705849 - INSULATION
- brace
9 6705850
- 6705850 - INSULATION
- brace
10 6725316
- 6725316 - INSULATION
- transmission
11 6715106
- 6715106 - INSULATION
- rear door
12 6703331
- 6703331 - FOAM
- air inlet
13 84G3112
- 84G3112 - SCREW THD ROLLING TT
- 5/16 x .75"
14 6705848
- 6705848 - INSULATION
- transmission
15 6719372
- 6719372 - INSULATION
- STRG PANEL
- steering panel
16 84G3716
- 84G3716 - SCREW THD ROLLING TT
17 6715371
- 6715371 - INSULATION
- transmission
18 6715372
- 6715372 - INSULATION
- pedal
19 6579399
- 6579399 - DECAL
- WARNING
- sound level warning - 83 db
20 6579403
- 6579403 - DECAL
- WARNING
- sound level warning -103 db
21 6712971
- 6712971 - PULLEY
- 5.00 in. (127 mm) O.D.
22 6712970
- 6712970 - PULLEY
- 4.75 in. (120
- 7 mm) O.D.
23 6715428
- 6715428 - DECAL
- NOISE
24 6659982
- 6659982 - MUFFLER
- HYD
- hyd.
25 6705333
- 6705333 - MOUNT
- rubber
26 6729144
- 6729144 - HOSE
- Was 6707231
27 6715744
- 6715744 - BUSHING
28 17KB1212
- 17KB1212 - FITTING
- HYD ELBOW
- W/Ref. 30 - flat boss face
29 97K12
- 97K12 - O-RING
- flared end
30 79K12
- 79K12 - O RING 10
- flat boss face
31 99K12
- 99K12 - O-RING
- tapered boss face
32 35C616
- 35C616 - SCREW FLGD HEX CAP
33 84G3724
- 84G3724 - SCREW THD ROLLING TT
34 85D6
- 85D6 - NUT PRETRQ HEX LOCK
35 6729154
- 6729154 - HOSE
- HYD ASSY
- Was 6729147
36 6735285
- 6735285 - AIR CLEANER
- internal choke holder
37 6735349
- 6735349 - HOSE
- formed - Use W/Ref. 36
38 6901003
- 6901003 - INSTRUCTIONS
