751.0
/

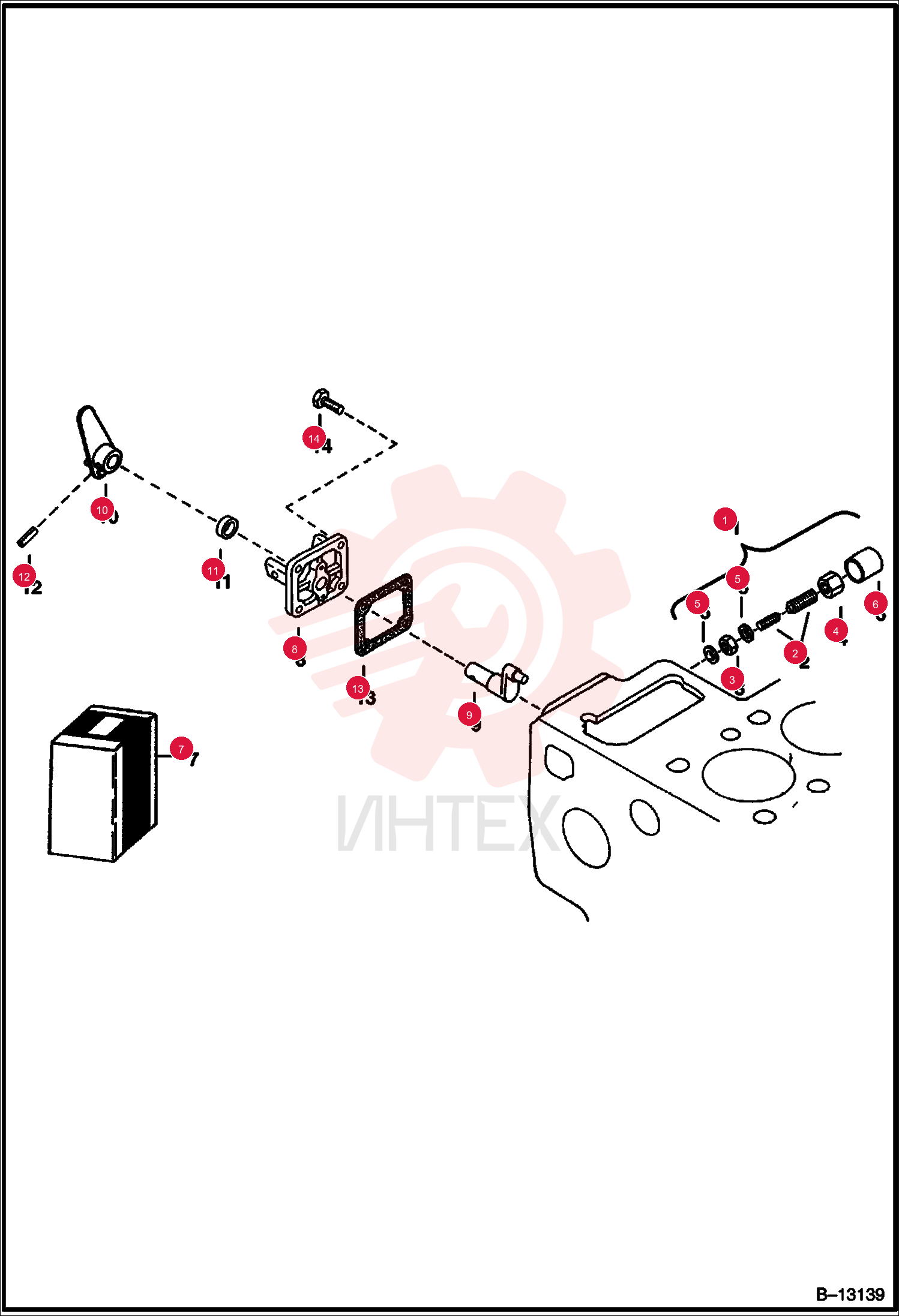

IDLER 3974975 (3)

IDLER 3974975 (3)

IDLER 3974975 (3)

1 3974975

  • 3974975 - IDLER
  • assy.
  • idle - Ref. 2-6

2 6653906

  • 6653906 - BOLT
  • adjusting

3 2DM8

  • 2DM8 - NUT
  • adjusting

4 3974978

  • 3974978 - NUT

5 3974095

  • 3974095 - GASKET
  • METAL

6 3974979

  • 3974979 - CAP

7 6676060

  • 6676060 - LEVER ASSEMBLY
  • eng. stop - Ref. 8-12 - Was 6655879

8 6655230

  • 6655230 - COVER
  • injection pump

9 6655231

  • 6655231 - SHAFT
  • lever

10 6676060

  • 6676060 - LEVER ASSEMBLY
  • engine stop - Was 6674175

11 6598703

  • 6598703 - SEAL
  • oil

12 6598098

  • 6598098 - PIN
  • spring

13 6666783

  • 6666783 - GASKET
  • pump cover

14 6652580

  • 6652580 - BOLT
