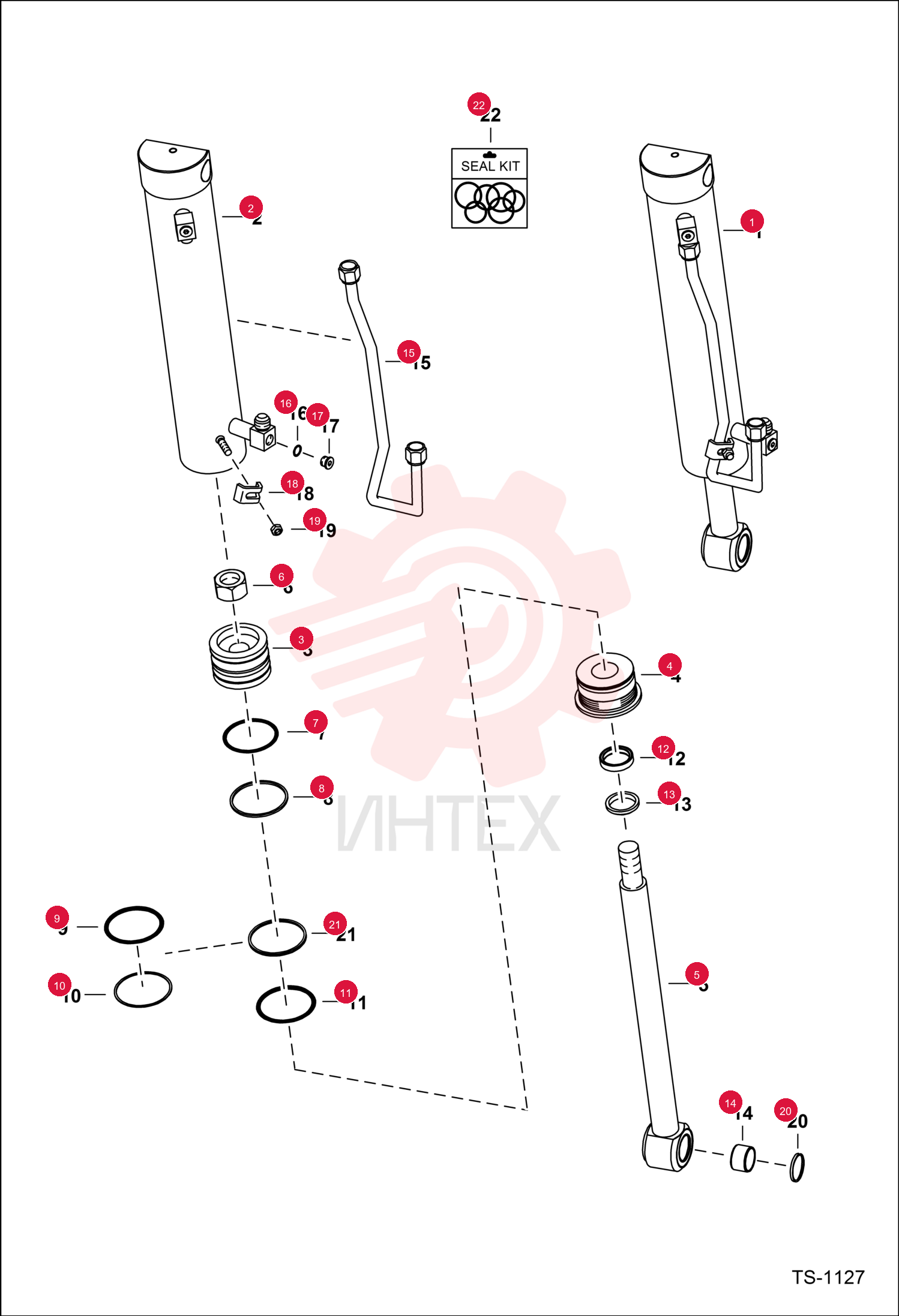

PISTON 6586906 (2)
1 6586906
- 6586906 - PISTON
- 1.125" (28
- 6 mm) I.D. - W/.56" (14
- 22 mm) rod end recess
2 6539185
- 6539185 - HEAD
- CYL TILT
3 6586910
- 6586910 - SHAFT
- ROD CYL TILT
- W/Ref. 14 - 1.5 in. (38
- 1 mm) O.D. - 21.18" (538
- mm) length
- end of threads to center of eye - W/O grease zerk hole
4 6810539
- 6810539 - NUT
- Was 6804592
5 54K30226
- 54K30226 - O-RING
- Was 25K30226
6 6513466
- 6513466 - PISTON RG
7 54K40300
- 54K40300 - O-RING
- Was 58K234
8 73K234
- 73K234 - RING
- BACK-UP
- back-up - Was 80K234
9 82K236
- 82K236 - O-RING
- Was 58K-236
10 6667326
- 6667326 - SEAL
- Was 6538141
11 6690707
- 6690707 - WIPER
- ROD CYL
- Was 6665086
12 6589665
- 6589665 - BUSHING
- PRESS FIT
- wear
13 6539144
- 6539144 - TUBE
14 79K6
- 79K6 - O RING 10
- flat boss face
15 95K6
- 95K6 - O'RING
- tapered boss face
16 90K5
- 90K5 - PLUG
- flat boss face - W/Ref. 16
17 24K5
- 24K5 - PLUG
- tapered boss face - W/Ref. 16 - Was 90KV5
18 6562266
- 6562266 - CLAMP TUBE
19 95D6
- 95D6 - NUT HEXAGON
- Was 91D000006B
20 6654117
- 6654117 - SEAL
- OIL
- 51 mm (2") OD
21 225855
- 225855 - SEAL
- OIL 10
- 38 mm (1.5") OD
22 7135551
- 7135551 - KIT
- SEAL
- Ref. 6-13 - Was 6804605
