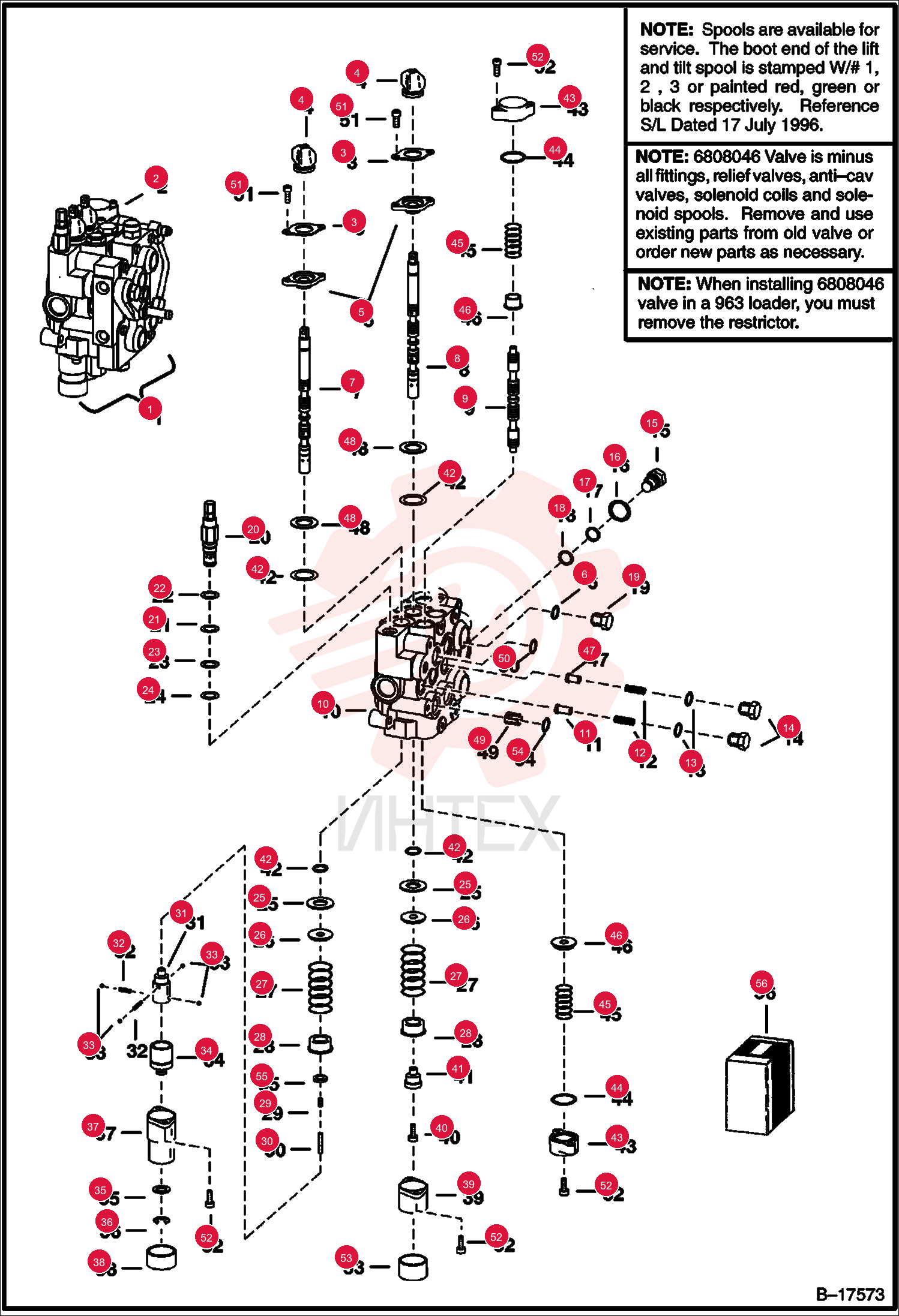

RETAINER 6589564 (1)
1 6589564
- 6589564 - RETAINER
2 6587763
- 6587763 - BOOT
3 6589565
- 6589565 - SEAL
4 95K12
- 95K12 - O-RING
5 6666588
- 6666588 - SPOOL BOM
- lift - # 1 or Red - SEE NOTE
6 6666589
- 6666589 - SPOOL BOM
- lift - # 2 or Green - SEE NOTE
7 6666590
- 6666590 - SPOOL BOM
- lift - # 3 or Black - SEE NOTE
8 6666591
- 6666591 - SPOOL
- TILT
- tilt - # 1 or Red - SEE NOTE
9 6666592
- 6666592 - SPOOLTILT
- tilt - # 2 or Green - SEE NOTE
10 6666593
- 6666593 - SPOOL
- TILT
- tilt - # 3 or Black - SEE NOTE
11 7300937
- 7300937 - SPOOL AUX
- auxiliary - SEE NOTE - Was 6588074
12 6592115
- 6592115 - SEAT
- load check
13 6592117
- 6592117 - SPRING
- LOAD CHECK
14 79K8
- 79K8 - O RING 10
15 6592116
- 6592116 - NUT
- load check
16 6592720
- 6592720 - PLUG
- W/Ref. 16-18
17 79K10
- 79K10 - O RING 10
18 80K14
- 80K14 - BKUP WSH5
- Was 73K000014B
19 58K014
- 58K014 - O-RING 10
- back-up washer required
20 6677106
- 6677106 - O-RING
- back-up washer NOT required
21 90K8
- 90K8 - PLUG
- W/Ref. 6 - Was 90KV00008B
22 6676871
- 6676871 - SEAL KIT
23 7219324
- 7219324 - VALVE
- RELIEF
- W/ O-rings - pressure to be set in field - Was 6686360
24 6595663
- 6595663 - BUSHING
25 7211397
- 7211397 - WASHER
- SPRING
- Was 6587523
26 6587580
- 6587580 - SPRING
27 6592100
- 6592100 - COLLAR
28 6596807
- 6596807 - PLUG
- plastic - 0.46" long
29 6586918
- 6586918 - SCREW
- DETENT
30 6587575
- 6587575 - ADAPTER
31 6592107
- 6592107 - SPRING
- DETENT 5
32 6592105
- 6592105 - BALL 5
33 6531270
- 6531270 - SLEEVE
- DETENT
34 6592098
- 6592098 - WASHER
35 799119
- 799119 - RING
36 6589226
- 6589226 - COVER
- END
- 0.63" flange
37 6660644
- 6660644 - CAP
38 7101345
- 7101345 - BONNET
- DETENT HYD VALVE
- Was 6587633
39 30G416
- 30G416 - BOLT
40 6592109
- 6592109 - ADAPTER
41 6683274
- 6683274 - SEAL
- SPOOL 10
- spool - Was 6665846
42 6588781
- 6588781 - END CAP
- .87 in. thick
43 58K124
- 58K124 - O RING 10
44 6596332
- 6596332 - SPRING
45 7108780
- 7108780 - SLEEVE
- Was 6595951
46 6596569
- 6596569 - SEAT
47 1K127
- 1K127 - O-RING 10
- Was 93K127
48 6534630
- 6534630 - RESTRICTOR
- SEE NOTE - Use in 700 Only
49 55K204
- 55K204 - O RING 10
50 29G412
- 29G412 - BOLT
51 29G416
- 29G416 - BOLT
- 1 in. long
52 6662848
- 6662848 - CAP
53 55K212
- 55K212 - O RING 10
54 54K20002
- 54K20002 - O'RING 10
55 6816250
- 6816250 - KIT
- SEAL
- one spool - Ref. 4
- 42
- 48
- 51
- 52 & 55 - Was 6803605
56 6816253
- 6816253 - KIT
- SEAL
- complete - Ref. 4
- 13
- 16-18
- 21-24
- 42
- 44
- 50 & 54 - also Order 6816250 seal kit - Was 6809448
57 6632279
- 6632279 - KIT
- SEAL
- main relief - Ref. 21-24
58 6809425
- 6809425 - SEAL KIT
- Ref. 13 & 16-18 - Was 6586461
