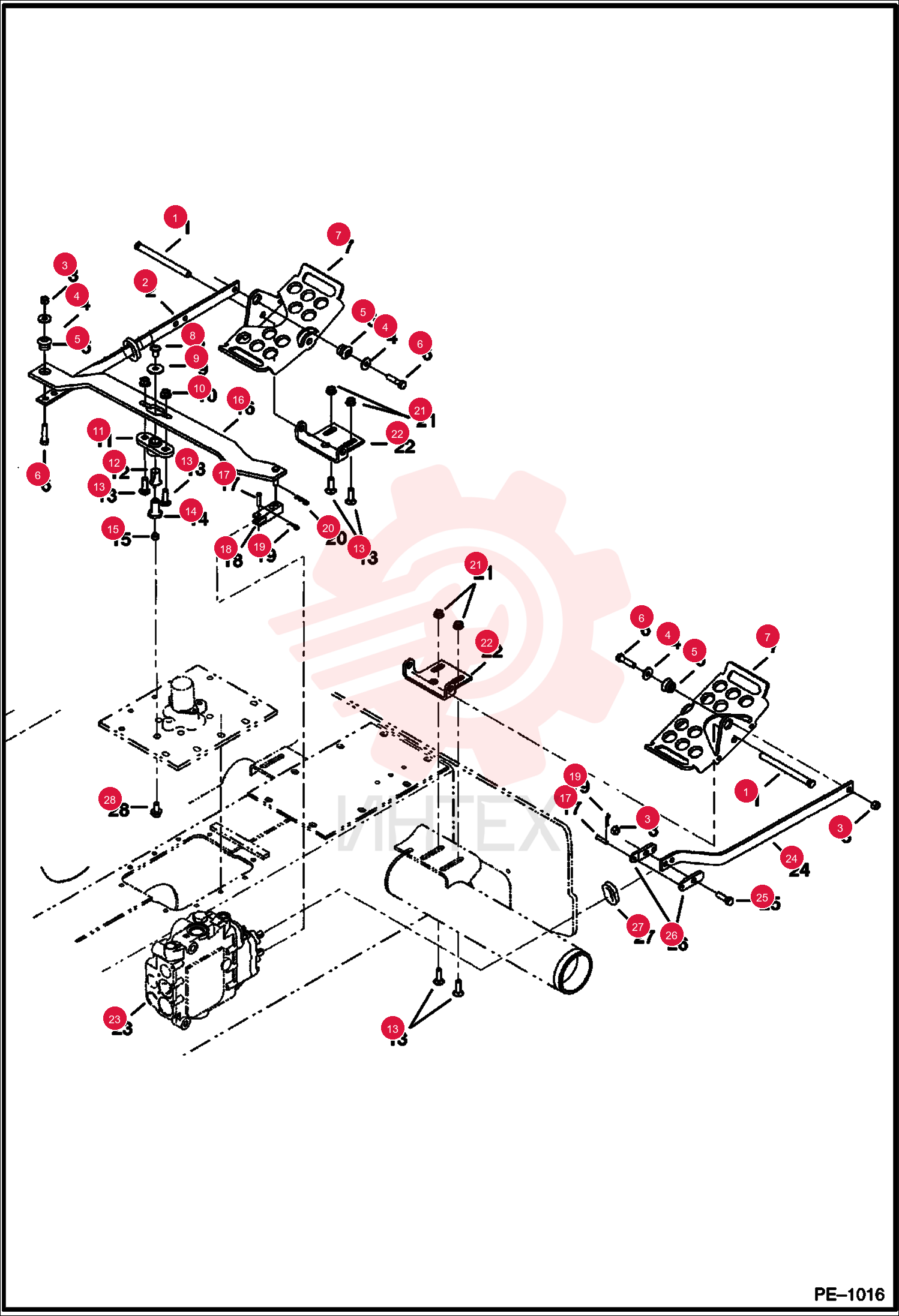

751.0
/
PIN 6564657

PIN 6564657

PIN 6564657

1 6564657

  • 6564657 - PIN

2 6576302

  • 6576302 - LINK

3 95D6

  • 95D6 - NUT HEXAGON

4 6563914

  • 6563914 - WASHER

5 6665701

  • 6665701 - BUSHING
  • PRESS FIT

6 17C624

  • 17C624 - BOLT 5

7 7115219

  • 7115219 - PEDAL
  • Was 6726680

8 6665839

  • 6665839 - SCREW FLANGED HEAD
  • Was 17C000612B

9 619021

  • 619021 - WASHER

10 83D6

  • 83D6 - LKNUT HEX FLG GR8

11 6708043

  • 6708043 - BUSHING FLANGE
  • flange

12 6512026

  • 6512026 - BUSHING FLANGED

13 37C620

  • 37C620 - BOLT CARRIAGE

14 6706104

  • 6706104 - NUT RETAINER

15 6544654

  • 6544654 - BUSHING
  • spacer

16 6706105

  • 6706105 - YOKE

17 6513495

  • 6513495 - PIN 5

18 1306637

  • 1306637 - PIN HAIR

19 57D6

  • 57D6 - NUT HEX FLNG GR8

20 6726679

  • 6726679 - MOUNT
  • Was 6564658

21 6717820

  • 6717820 - LINK
  • Was 6577813

22 17C620

  • 17C620 - BOLT

23 6708009

  • 6708009 - LINK
  • 2.69" (68
  • 3 mm) long

24 6577961

  • 6577961 - GROMMET

25 35C612

  • 35C612 - SCREW FLGD HEX CAP
