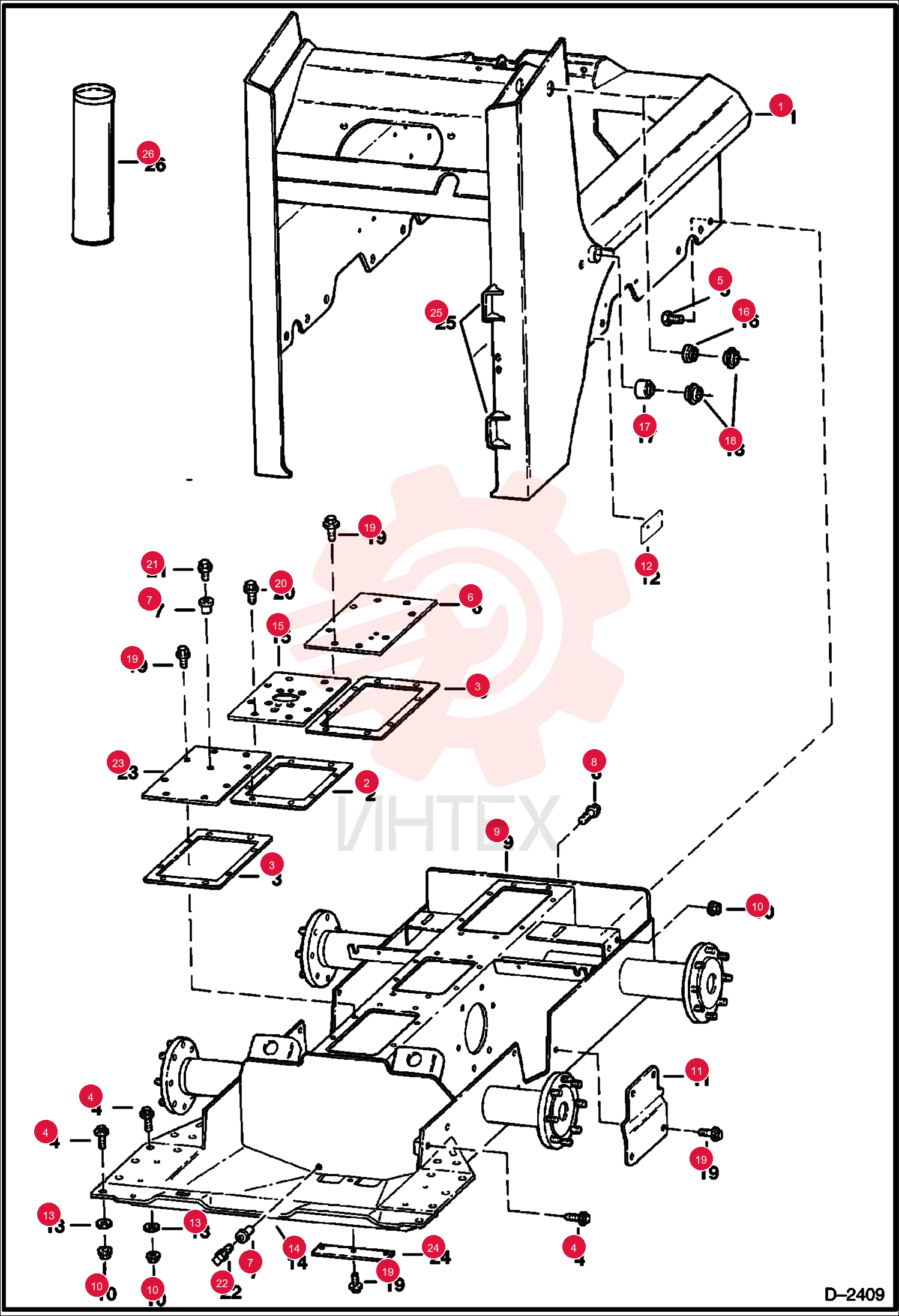

MAINFRAME 6737360 (1)

MAINFRAME 6737360 (1)

MAINFRAME 6737360 (1)

1 6737360

  • 6737360 - MAINFRAME

2 6706968

  • 6706968 - GASKET

3 6703097

  • 6703097 - GASKET
  • TRANS COVER

4 31C824

  • 31C824 - BOLT 10
  • main frame mounting - Use W/Ref. 5

5 31C820

  • 31C820 - BOLT
  • main frame mounting - Use W/Ref. 4

6 31C820

  • 31C820 - BOLT
  • .5" x 1"

7 6578505

  • 6578505 - COVER

8 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

9 6731121

  • 6731121 - PLUG RECESSED PIPE
  • chaincase fill - Was 11F-12

10 83D8

  • 83D8 - LKNUT HEX FLG GR8

11 6733701

  • 6733701 - COVER
  • Was 6704695

12 6727837

  • 6727837 - COVER

13 6701097

  • 6701097 - WASHER

14 6706485

  • 6706485 - BRACKET
  • tie down - weld-on

15 6706042

  • 6706042 - COVER

16 6702583

  • 6702583 - BUSHING
  • WELD-ON

17 6555987

  • 6555987 - BUSHING
  • weld on

18 6702584

  • 6702584 - BUSHING
  • WELD-ON
  • weld on

19 84G3712

  • 84G3712 - SCREW THD ROLLING TT

20 6680970

  • 6680970 - VENT BREATHER
  • Was 6670627

21 6599645

  • 6599645 - PLUG
  • STEEL
  • chaincase drain

22 6700330

  • 6700330 - COVER

23 6700182

  • 6700182 - COVER
  • DRAIN

24 6708987

  • 6708987 - HINGE
  • WELD-ON

25 6633583

  • 6633583 - SEALANT
  • POLYURETHANE 300 ML
  • chaincase cover
