Bobcat
/
751.0
/

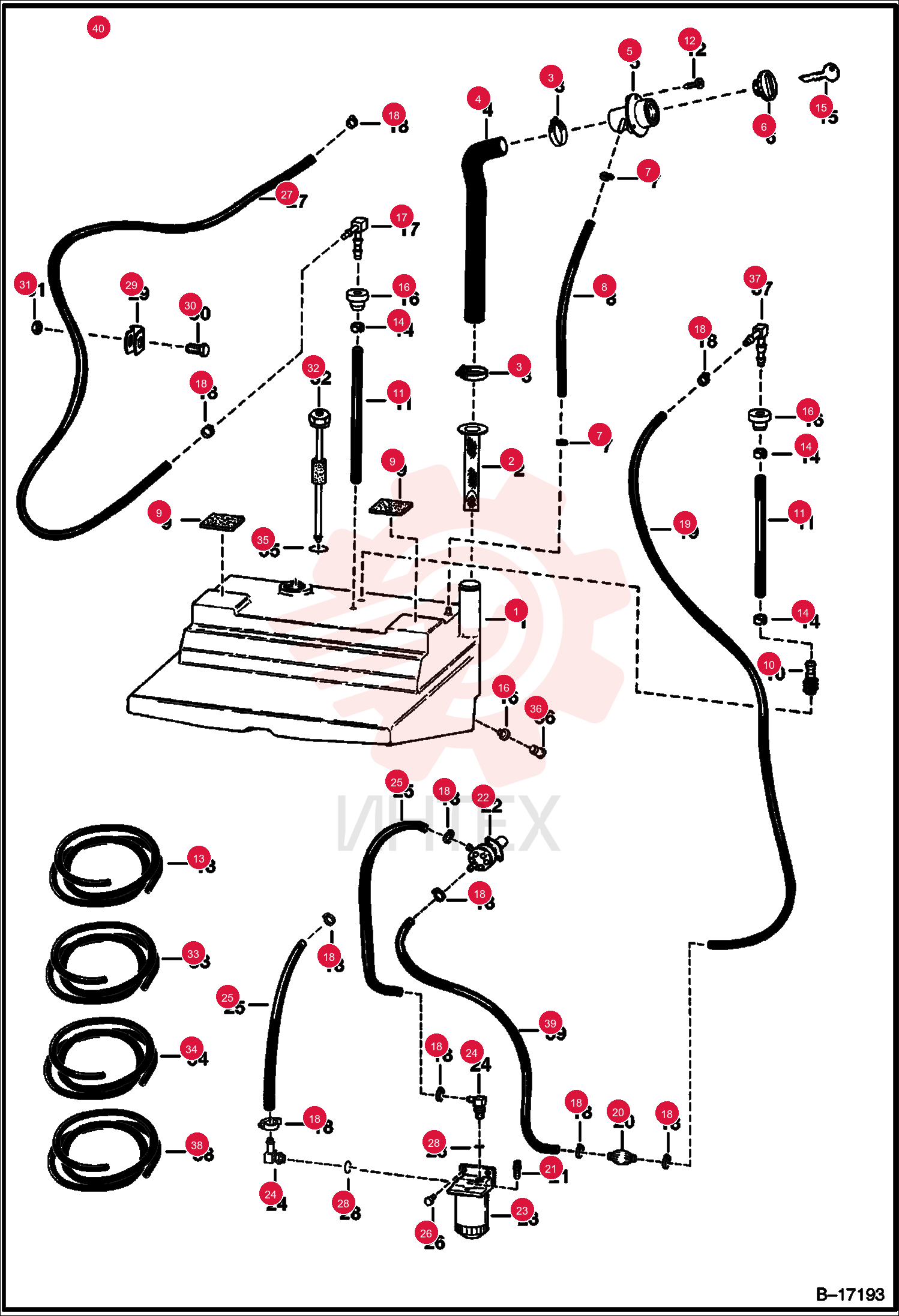

TANK, FUEL 6736659 (1)

TANK, FUEL 6736659 (1)

TANK, FUEL 6736659 (1)

1 6736659

  • 6736659 - TANK
  • FUEL
  • Was 6717572

2 7120881

  • 7120881 - SCREEN
  • FILLER
  • Was 6569219

3 42H32

  • 42H32 - HS CLAMP5

4 6706674

  • 6706674 - HOSE
  • PN printed on hose

5 6710653

  • 6710653 - HOSE FUEL FILL
  • formed - 17.58" (446.5 mm) long

6 6701449

  • 6701449 - FLR.TUBE

7 6661114

  • 6661114 - CAP
  • DIESEL 1 PSI
  • green

8 6661696

  • 6661696 - CAP
  • FUEL LOCKING
  • locking - W/Ref. 15 - Code PK510

9 42H10

  • 42H10 - HOSECLAM5

10 6578278

  • 6578278 - BUMP.PAD
  • self adhesive one side

11 6650239

  • 6650239 - SCREEN
  • FUEL PICKUP

12 6576386

  • 6576386 - HOSE
  • 8.5"-9.5" (215
  • 9 mm - 241
  • 3 mm) long

13 6706517

  • 6706517 - SCREW 10

14 6578172

  • 6578172 - HOSE BULK
  • sold per foot

15 6661213

  • 6661213 - RING
  • COMPRESSION

16 6654374

  • 6654374 - 2 KEYS
  • Code GC020

17 6587458

  • 6587458 - KEY CAP FUEL 2
  • Code PK510

18 6717402

  • 6717402 - BUSHING
  • 0.54" ID

19 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5
  • 0.38" ID

20 7101291

  • 7101291 - ELBOW
  • Was 6681462

21 42HS04

  • 42HS04 - CLAMP HOSE TYPE M
  • Was 6515575

22 6657734

  • 6657734 - PUMP
  • PRIMER HAND
  • barbed fittings for 6
  • 35 mm (.25") ID hose - barbed fittings for 6
  • 35 mm (.25") ID hose

23 6658180

  • 6658180 - PLUG
  • BLEED

24 6674170

  • 6674170 - FUEL PUMP
  • Was 6655216

25 6667353

  • 6667353 - FILTER
  • FUEL ASSY
  • W/Ref. 21

26 6667352

  • 6667352 - FILTER
  • FUEL W/SEPARATOR 12

27 72F1

  • 72F1 - FITTING

28 6715183

  • 6715183 - ELBOW 90 STRTHD TUBE
  • Check boss face to determine correct replacement o-ring

29 17C512

  • 17C512 - BOLT 5

30 79K5

  • 79K5 - O RING 10
  • flat boss face

31 99K5

  • 99K5 - O-RING
  • tapered boss face

32 30H36

  • 30H36 - CLIP

33 17C612

  • 17C612 - SCREW HEX CAP

34 61D6

  • 61D6 - NUT HEX FINISHED GR5

35 6577821

  • 6577821 - HOSE
  • BULK
  • sold per foot

36 6577822

  • 6577822 - HOSE BULK
  • sold per foot

37 79K14

  • 79K14 - O RING 10

38 6717579

  • 6717579 - GASKET
  • rubber

39 6599645

  • 6599645 - PLUG
  • STEEL
  • fuel drain - .5" O.D.

40 7203382

  • 7203382 - PLUG
  • STEEL
  • fuel drain - .75" shoulder - Was 6717401

41 7101291

  • 7101291 - ELBOW
  • Was 6661382

42 6578169

  • 6578169 - HOSE BULK
  • sold per foot - 0.19" ID

43 7297009

  • 7297009 - KIT FUEL SCREEN PICKUP TUBE
  • W/Ref.10
  • 14
  • 16 & (1) PN 6569752
