751.0
/

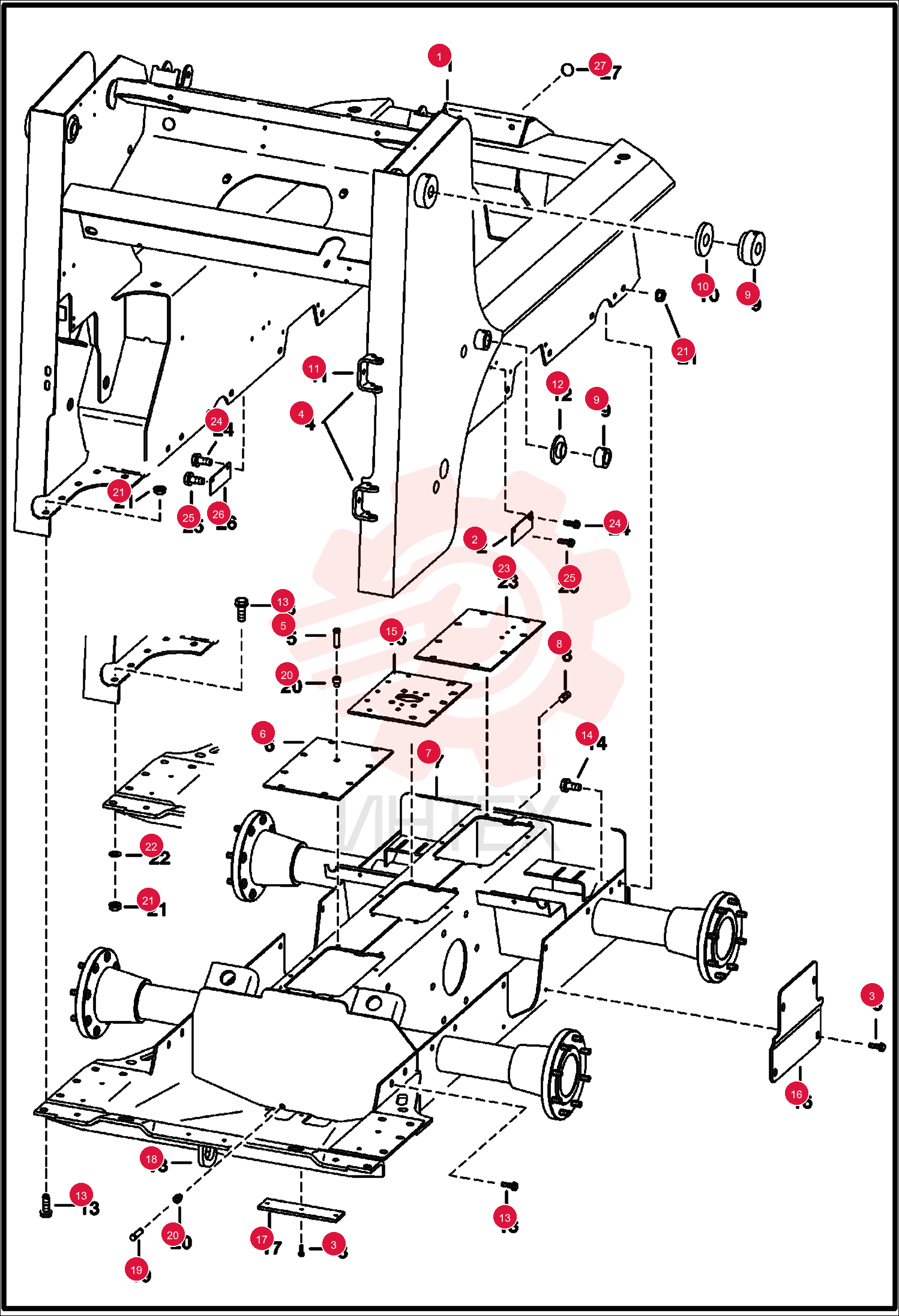

MAINFRAME 6737360 (2)

MAINFRAME 6737360 (2)

MAINFRAME 6737360 (2)

1 6737360

  • 6737360 - MAINFRAME

2 6727837

  • 6727837 - COVER
  • 2 hole mount - 5.16" x 2.25" - Was 6704860

3 84G3712

  • 84G3712 - SCREW THD ROLLING TT

4 6708987

  • 6708987 - HINGE
  • WELD-ON

5 6680970

  • 6680970 - VENT BREATHER
  • Was 6670627

6 6700330

  • 6700330 - COVER

7 6731121

  • 6731121 - PLUG RECESSED PIPE
  • chaincase fill - Was 11F-12

8 6702584

  • 6702584 - BUSHING
  • WELD-ON
  • weld on

9 6702583

  • 6702583 - BUSHING
  • WELD-ON

10 6577394

  • 6577394 - HINGE
  • hinge - weld on

11 6555987

  • 6555987 - BUSHING
  • weld on

12 31C824

  • 31C824 - BOLT 10

13 31C820

  • 31C820 - BOLT

14 6706042

  • 6706042 - COVER

15 6733701

  • 6733701 - COVER
  • Was 6704695

16 6700182

  • 6700182 - COVER
  • DRAIN

17 6706485

  • 6706485 - BRACKET
  • tie down - weld-on

18 6599645

  • 6599645 - PLUG
  • STEEL
  • chaincase drain

19 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

20 83D8

  • 83D8 - LKNUT HEX FLG GR8

21 6701097

  • 6701097 - WASHER

22 6578505

  • 6578505 - COVER

23 84G3110

  • 84G3110 - SCREW
  • RH side

24 84G3112

  • 84G3112 - SCREW THD ROLLING TT
  • LH side

25 84G3710

  • 84G3710 - SCREW
  • 3/8 x .62"

26 17C620

  • 17C620 - BOLT
  • Was 6717378

27 6727837

  • 6727837 - COVER
  • 5.5" x 2.6"

28 6718796

  • 6718796 - PLUG
