751.0
/

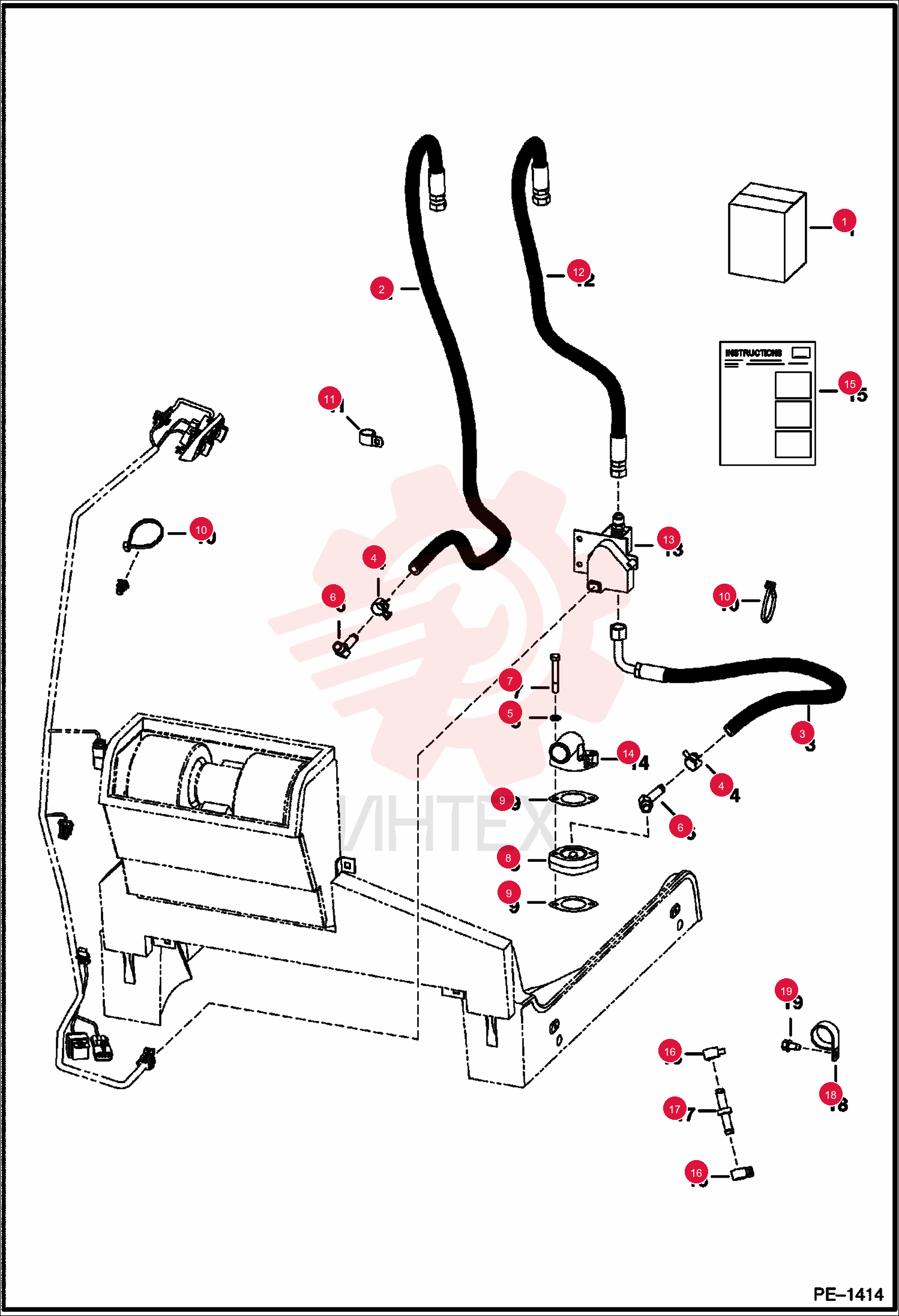

HOSE 6730996

HOSE 6730996

HOSE 6730996

1 6730996

  • 6730996 - HOSE
  • W/10 in. spring guard

2 6730998

  • 6730998 - HOSE

3 5HM20

  • 5HM20 - HOSE CLAMP
  • hose

4 6EM80

  • 6EM80 - WASHER
  • SPRING

5 6731084

  • 6731084 - CONNECTOR

6 6731085

  • 6731085 - ELBOW

7 1CM860

  • 1CM860 - BOLT
  • Was 1CM-870

8 6731049

  • 6731049 - ADAPTER

9 6732199

  • 6732199 - GASKET
  • thermostat - Was 6666790

10 6624289

  • 6624289 - STRAP
  • TIE

11 30H45

  • 30H45 - CLIP
  • insulated

12 6719144

  • 6719144 - HOSE
  • 34in. (863
  • 6mm) Long - W/ Spring Guard

13 6900850

  • 6900850 - INSTRUCTIONS
  • Was 6901497

14 5HM20

  • 5HM20 - HOSE CLAMP
  • NOT IN KIT - Ref. 16-18 Are Used in Factory Option Only

15 6732023

  • 6732023 - CONNECTOR
  • HOSE
  • NOT IN KIT - Ref. 16-18 Are Used in Factory Option Only

16 30H50

  • 30H50 - CLAMP
  • Insulated - NOT IN KIT - Ref. 16-18 Are Used in Factory Option Only

17 84G3712

  • 84G3712 - SCREW THD ROLLING TT
  • not in kit - Used in factory option only
