Bobcat
/
751.0
/

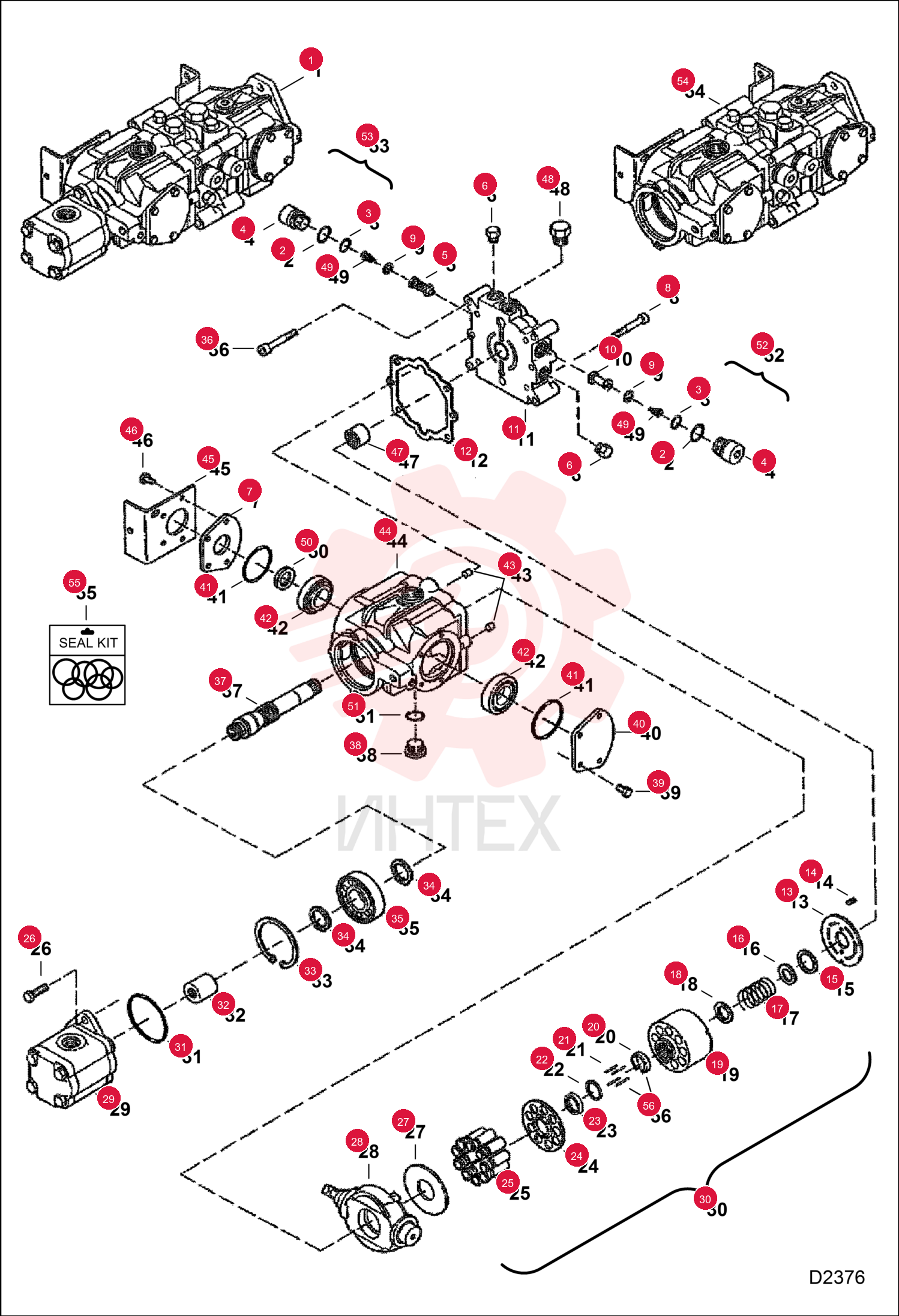

PUMP, HYD 7001067REM (3)

PUMP, HYD 7001067REM (3)

PUMP, HYD 7001067REM (3)

1 7001067REM

  • 7001067REM - PUMP
  • HYD
  • Was 6672051REM - does not include gear pump

2 6657028

  • 6657028 - O-RING

3 79K8

  • 79K8 - O RING 10

4 6645086

  • 6645086 - PLUG

5 6657067

  • 6657067 - COVER
  • W/Ref. 50

6 6650637

  • 6650637 - BOLT

7 6669405

  • 6669405 - CAP
  • END

8 6650634

  • 6650634 - GASKET

9 6650636

  • 6650636 - PIN

10 6650630

  • 6650630 - RETAINER

11 6666339

  • 6666339 - SCREW

12 6650627

  • 6650627 - PLATE THR

13 7284937

  • 7284937 - SWASHPLATE
  • W/threaded shaft hole - Was 6685344

14 6671512

  • 6671512 - GROUP
  • ROTARY
  • Model 4445050

15 6645080

  • 6645080 - O-RING

16 6671509

  • 6671509 - COUPLER

17 669863

  • 669863 - RING
  • SNAP

18 658128

  • 658128 - RING
  • SNAP

19 654299

  • 654299 - BEARING

20 6652018

  • 6652018 - BOLT

21 6669407

  • 6669407 - SHAFT

22 47K8

  • 47K8 - PLUG
  • W/Ref. 51

23 6650668

  • 6650668 - BOLT

24 6657068

  • 6657068 - COVER

25 6660814

  • 6660814 - RING
  • QUAD

26 6669411

  • 6669411 - BEARING
  • W/cup

27 6518460

  • 6518460 - PIN

28 6669403

  • 6669403 - HOUSING

29 6576196

  • 6576196 - BRACKET

30 6650668

  • 6650668 - BOLT

31 6650635

  • 6650635 - BEARING

32 6645086

  • 6645086 - PLUG

33 6678226

  • 6678226 - SEAL
  • OIL
  • Was 6673881

34 79K12

  • 79K12 - O RING 10

35 6670684

  • 6670684 - VALVE
  • CHECK

36 6671510

  • 6671510 - VALVE
  • RELIEF

37 7001070

  • 7001070 - PUMP
  • HYD TANDEM W/O GEAR PUMP

38 6671516

  • 6671516 - KIT
  • SEAL
  • - Ref. 7
  • 9
  • 13
  • 34
  • 35
  • 42
  • 43
  • 45 & 46 - Also includes Ref. 2
  • 3
  • 12 & 41 on this page - Was 7296604

39 7339370

  • 7339370 - KIT GUIDE
  • W/Ref. (4) of 21 & Ref. 22
