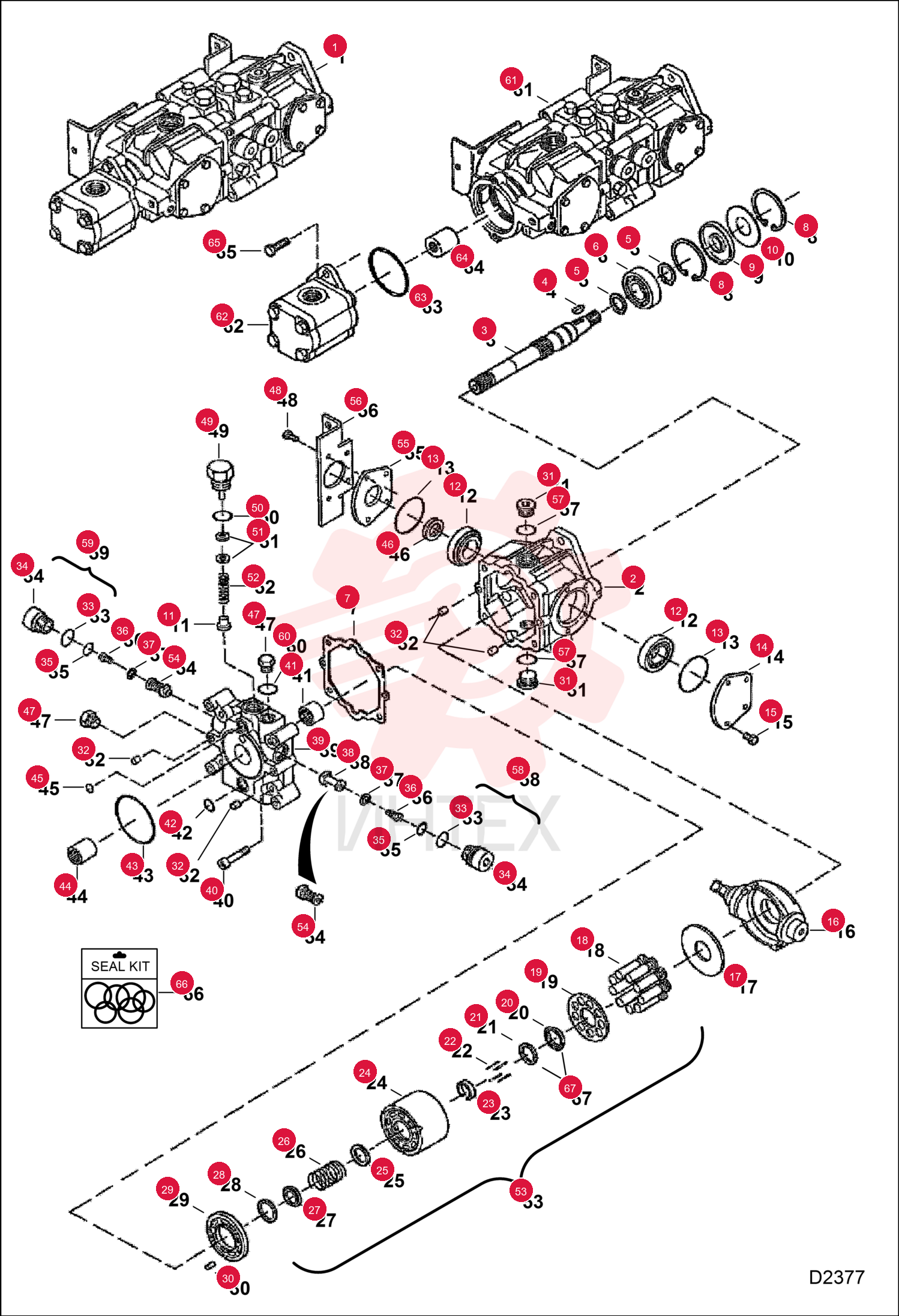

PUMP, HYD 7001067REM (4)
1 7001067REM
- 7001067REM - PUMP
- HYD
- Was 6672051REM - does not include gear pump
2 6669402
- 6669402 - HOUSING
3 6682260
- 6682260 - FRONT SHAFT
- W/square key
4 6J807
- 6J807 - KEY
- WOODRUFF
5 6682261
- 6682261 - KEY
- square
6 658128
- 658128 - RING
- SNAP
7 654299
- 654299 - BEARING
8 6650634
- 6650634 - GASKET
9 669863
- 669863 - RING
- SNAP
10 7296603
- 7296603 - SEAL
- SHAFT
- Was 6687191
11 7024884
- 7024884 - WASHER
- Was 6669409
12 6650652
- 6650652 - CH.RELIEF
- charge
13 6669411
- 6669411 - BEARING
- W/cup
14 6660814
- 6660814 - RING
- QUAD
15 6657068
- 6657068 - COVER
16 6650668
- 6650668 - BOLT
17 7284937
- 7284937 - SWASHPLATE
- W/threaded shaft hole - Was 6685344
18 6650627
- 6650627 - PLATE THR
19 6650630
- 6650630 - RETAINER
20 6650636
- 6650636 - PIN
21 47K8
- 47K8 - PLUG
- W/Ref. 57
22 6518460
- 6518460 - PIN
23 6657028
- 6657028 - O-RING
24 79K8
- 79K8 - O RING 10
25 7023162
- 7023162 - CAP
- END
- Was 6669406
26 6650637
- 6650637 - BOLT
27 6650635
- 6650635 - BEARING
28 6650647
- 6650647 - O-RING
29 6645081
- 6645081 - O-RING
30 6650675
- 6650675 - COUPLER
31 6650646
- 6650646 - O-RING
32 6678226
- 6678226 - SEAL
- OIL
- Was 6673881
33 6645086
- 6645086 - PLUG
- W/Ref. 60
34 6671518
- 6671518 - BOLT
35 6650648
- 6650648 - PLUG
- charge relief
36 79K10
- 79K10 - O RING 10
37 6669410
- 6669410 - KIT
- SHIM
- charge relief
38 6658301
- 6658301 - SPRING
39 6671512
- 6671512 - GROUP
- ROTARY
40 6657067
- 6657067 - COVER
- W/Ref. 46
41 6706096
- 6706096 - MOUNT
42 79K12
- 79K12 - O RING 10
43 6670684
- 6670684 - VALVE
- CHECK
44 6671510
- 6671510 - VALVE
- RELIEF
45 6661481
- 6661481 - O-RING
46 7001070
- 7001070 - PUMP
- HYD TANDEM W/O GEAR PUMP
47 6669412
- 6669412 - 0'RING
48 6650677
- 6650677 - COUPLER
49 6666339
- 6666339 - SCREW
50 6671516
- 6671516 - KIT
- SEAL
- - Ref. 2
- 3
- 12 & 41 - Also includes Ref. 7
- 9
- 13
- 34
- 35
- 42
- 43
- 45 & 46 on this page - Was 7296604
51 7339370
- 7339370 - KIT GUIDE
- W/Ref. 21 & (4) 22
