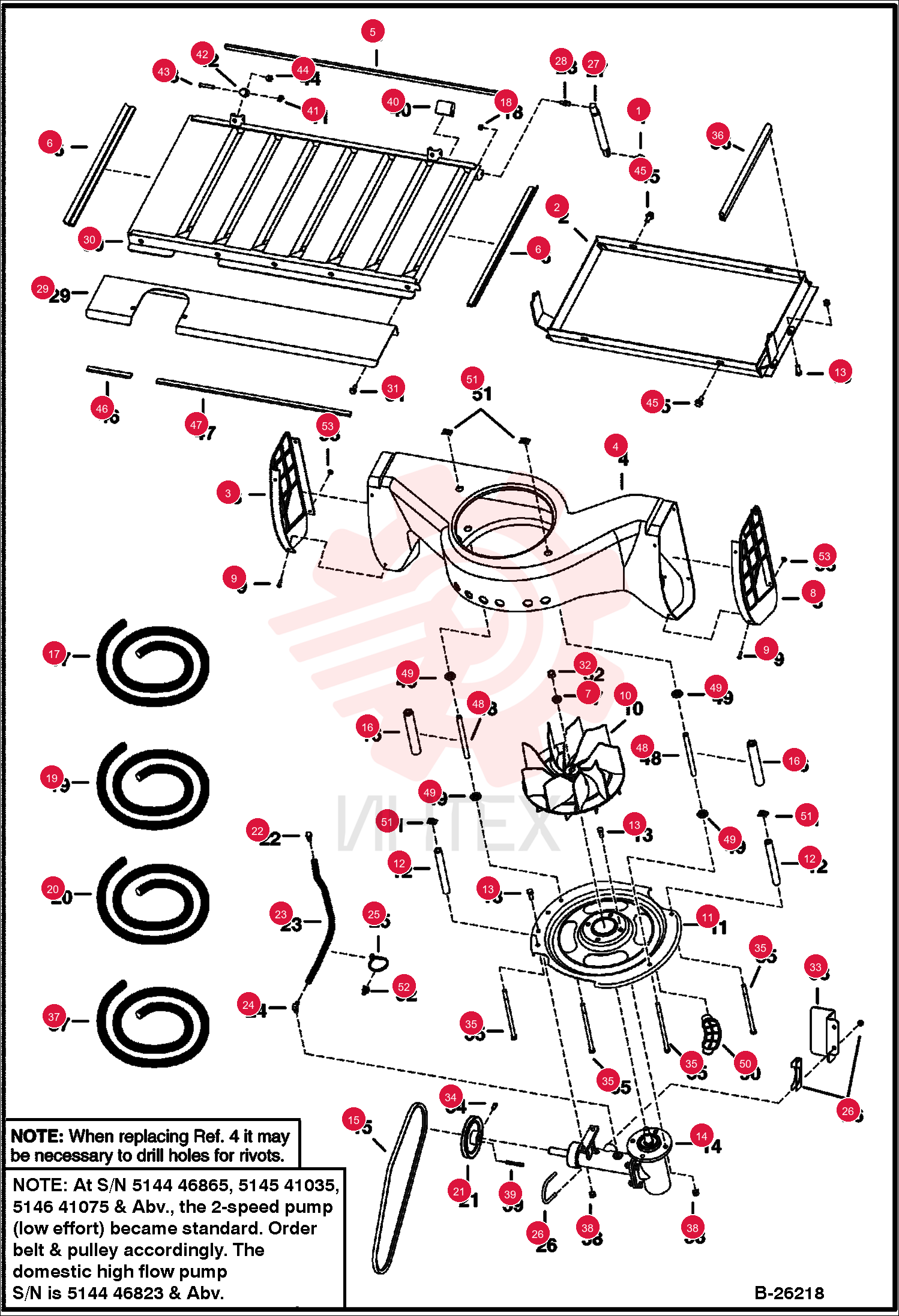

BALL STUD 6705052 (1)
1 6705052
- 6705052 - BALL STUD
- weld-on
2 6718757
- 6718757 - HOUSING PLENUM
- plenum - Was 6711630
3 6716574
- 6716574 - LOUVER
- PLASTIC LH
- L.H. - plastic - Was 6716571
4 6718562
- 6718562 - HOUSING FAN
- When replacing
- it may be necessary to drill holes for rivots. - Was 6717635
5 6701097
- 6701097 - WASHER
- Was 6803867
6 6716572
- 6716572 - LOUVER
- PLASTIC RH
- RH - plastic
7 6706517
- 6706517 - SCREW 10
8 6715142
- 6715142 - FAN
- ENG COOLANT
9 7107175
- 7107175 - INLET
- 4-slot - Was 6717478
10 6577382
- 6577382 - BUSHING
11 17C616
- 17C616 - BOLT 5
12 6734105
- 6734105 - HOUSING
- FAN DRIVE ASSY
- - Was 6707519
13 6713382
- 6713382 - BELT
- FAN
- 44.75" (1137mm) long
14 6707648
- 6707648 - BELT
- two speed - 43.75"(1111mm) long
15 6676345
- 6676345 - BELT
- FAN
- - standard & two speed - 44.5" (1130mm) long
16 6732453
- 6732453 - BELT V COG
- 45.875 in. (1165 mm) Long
17 6646705
- 6646705 - MOULDING BULK/FT
- sold per foot
18 61D5
- 61D5 - NUT HEX FINISHED GR5
19 6511855
- 6511855 - TAPE BULK/FT 25'
- self adhesive - sold per foot
20 6577822
- 6577822 - HOSE BULK
- sold per foot
21 6579541
- 6579541 - PULLEY
- 5.75'' (146 mm) OD
22 6712970
- 6712970 - PULLEY
- 4.75" (120
- 7 mm) OD
23 6725130
- 6725130 - PULLEY
- - 4" (101
- 6MM) OD - two speed
24 6703483
- 6703483 - PULLEY
- FAN DRIVE IDLER
- 5.25" (133
- 4 mm) OD
25 6712971
- 6712971 - PULLEY
- - 05" (127mm) OD - two speed
26 6680970
- 6680970 - VENT BREATHER
- Was 6670627
27 6657376
- 6657376 - ELBOW
28 6624289
- 6624289 - STRAP
- TIE
- Was 6610510
29 6626631
- 6626631 - CLAMP ASY
30 6674285
- 6674285 - GAS SPRING
- Was 6673758
31 6649244
- 6649244 - BALL STUD
32 6717731
- 6717731 - BRACKET
33 6717730
- 6717730 - SCREEN ASSEMBLY
34 84G3112
- 84G3112 - SCREW THD ROLLING TT
35 96D8
- 96D8 - NUT
36 6719429
- 6719429 - SHIELD BELT
- belt - Was 6708886
37 6715143
- 6715143 - SCREW
38 17C6116
- 17C6116 - BOLT
39 6513152
- 6513152 - SEAL
- BULK/FT 25
- bulk - sold per foot
40 61D6
- 61D6 - NUT HEX FINISHED GR5
41 7J2208
- 7J2208 - KEY
42 6579613
- 6579613 - STOP
43 6631418
- 6631418 - RING RUE
44 6579326
- 6579326 - MOUNT
45 6567743
- 6567743 - PIN
46 17C608
- 17C608 - BOLT
47 35C612
- 35C612 - SCREW FLGD HEX CAP
48 7131872
- 7131872 - SPACER
- Was 6732318
49 6732457
- 6732457 - WASHER
- Step
50 6684474
- 6684474 - INSERT FAN INLET
51 6684033
- 6684033 - NUT
- Spring
52 6678666
- 6678666 - MOUNT
- STRAP TIE
53 25E6
- 25E6 - WSHR
- Use W/steel louvers
