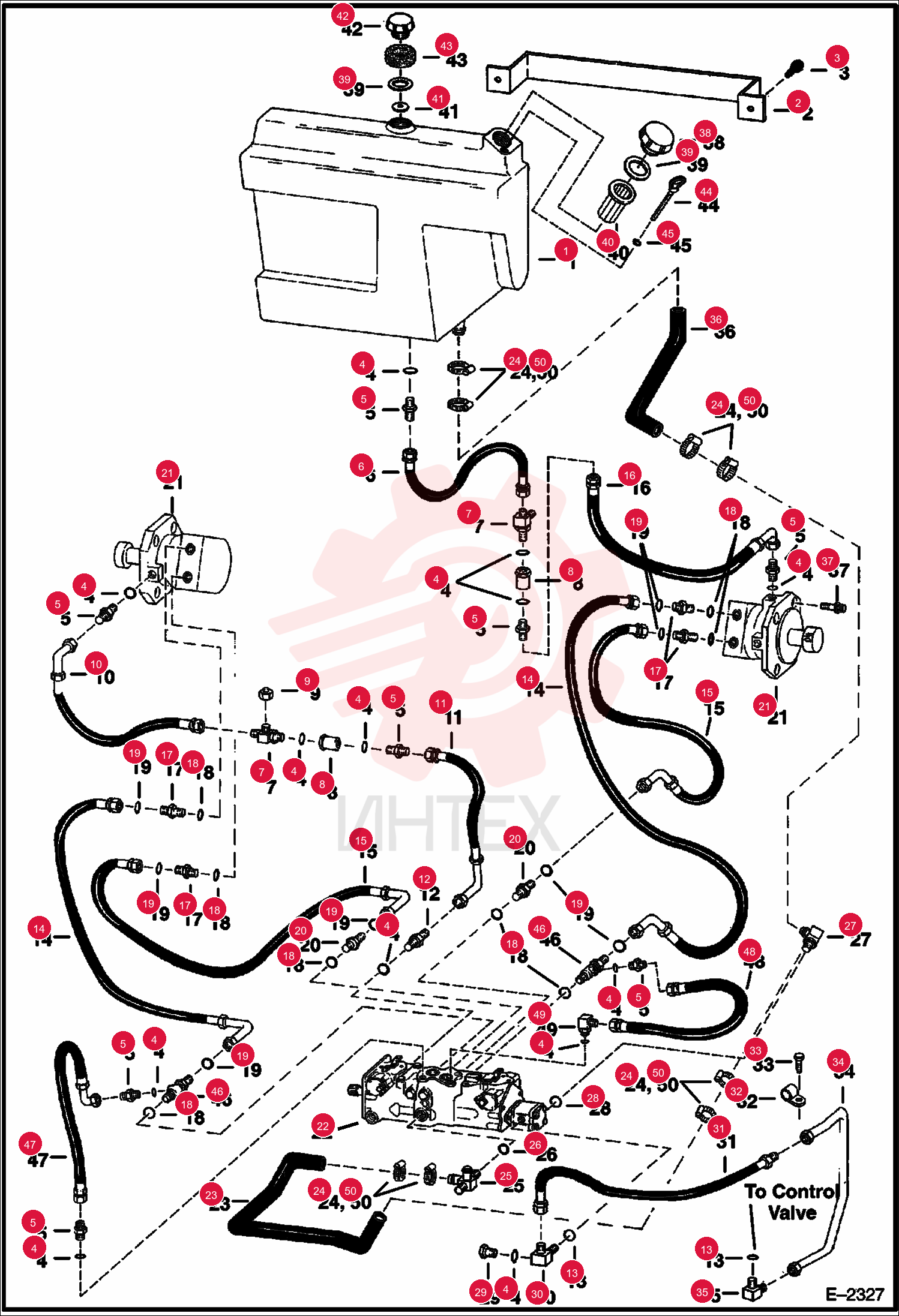

TANK 6704551 (1)

TANK 6704551 (1)

TANK 6704551 (1)

1 6704551

  • 6704551 - TANK

2 6579939

  • 6579939 - BAND

3 84G3712

  • 84G3712 - SCREW THD ROLLING TT

4 79K6

  • 79K6 - O RING 10

5 15K5

  • 15K5 - FITTING
  • W/Ref. 4

6 6579946

  • 6579946 - HOSE

7 21K5

  • 21K5 - TEE
  • W/Ref. 4

8 6661022

  • 6661022 - FILTER
  • OIL HYD IN-LINE

9 36K5

  • 36K5 - CAP

10 6707234

  • 6707234 - HOSE

11 6730769

  • 6730769 - HOSE
  • 14.5" (368
  • 3 mm) long

12 6578812

  • 6578812 - ADAPTER
  • W/Ref. 13

13 79K12

  • 79K12 - O RING 10
  • flat boss face

14 99K12

  • 99K12 - O-RING
  • tapered boss face

15 6714540

  • 6714540 - HOSE
  • Was 6711162

16 6713520

  • 6713520 - HOSE

17 6714541

  • 6714541 - HOSE
  • Was 6711163

18 6711166

  • 6711166 - HOSE
  • Was 6712145

19 6665206

  • 6665206 - ELBOW
  • 45 degrees - W/Ref. 18 & 19 - Was 44E001616B

20 75K16

  • 75K16 - O RING 10

21 55K21

  • 55K21 - O RING 10

22 41E1616

  • 41E1616 - ADAPTER

23 6708473

  • 6708473 - HOSE

24 44H16

  • 44H16 - CLAMP
  • Was 6666865

25 6706487

  • 6706487 - TEE
  • W/Ref. 26

26 79K20

  • 79K20 - O RING 10

27 6706772

  • 6706772 - TEE
  • W/Ref. 28

28 79K16

  • 79K16 - O RING 10

29 24K5

  • 24K5 - PLUG
  • W/Ref. 4

30 6715189

  • 6715189 - ELBOW
  • W/Ref. 13 - tapered boss face - Was 6714783

31 97K12

  • 97K12 - O-RING
  • flared end

32 6714773

  • 6714773 - HOSE
  • Was 6713039

33 30H46

  • 30H46 - CLIP
  • Was 30H000042B

34 84G3712

  • 84G3712 - SCREW THD ROLLING TT

35 6714743

  • 6714743 - TUBELINE
  • Was 6710809

36 17K8

  • 17K8 - FITTING
  • W/Ref. 13

37 6710846

  • 6710846 - HOSE

38 93G1032

  • 93G1032 - BOLT

39 6728149

  • 6728149 - CAP
  • HYD NON VENTED
  • fill - Also Order Ref. 39 - Was 6532508

40 6700631

  • 6700631 - GASKET CAP TANK HYDR

41 7120881

  • 7120881 - SCREEN
  • FILLER
  • Was 6569219

42 6701552

  • 6701552 - BAFFLE

43 6727475

  • 6727475 - CAP HYDRAULIC
  • breather - Also Order Ref. 39 & 43 - Was 6577785

44 6703427

  • 6703427 - FOAM FLT5

45 6577459

  • 6577459 - DIPSTICK

46 25K20010

  • 25K20010 - O RING 10

47 6713448

  • 6713448 - ADAPTER
  • shunt - W/Ref. 18 & 19

48 6669987

  • 6669987 - HOSE

49 6669988

  • 6669988 - HOSE

50 6558510

  • 6558510 - ELBOW
  • W/Ref. 4

51 6672281

  • 6672281 - CLAMP
  • constant tension - Was 5HM00042B
