863.0
/

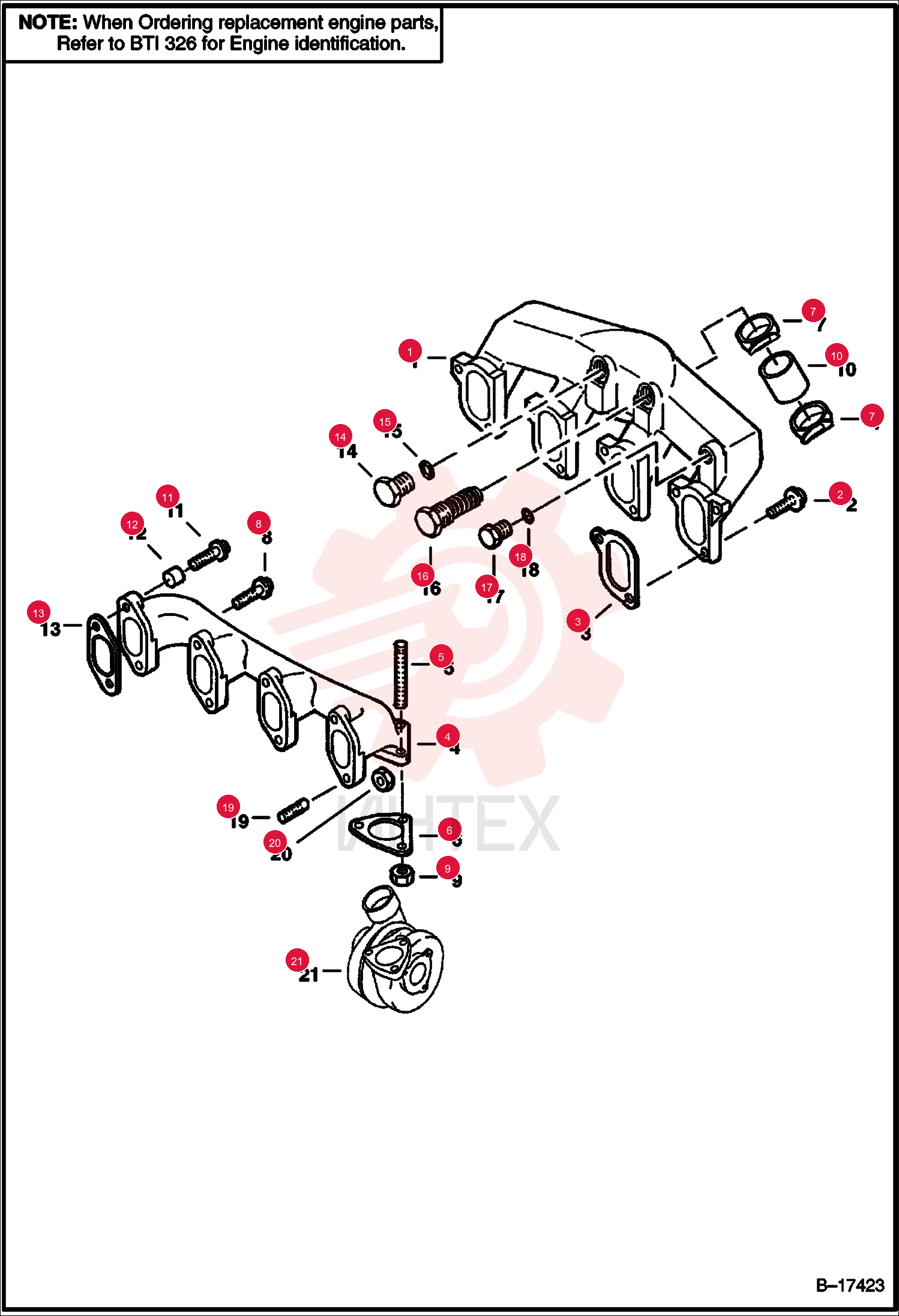

MANIFOLD 6690619 (3)

MANIFOLD 6690619 (3)

MANIFOLD 6690619 (3)

1 6690619

  • 6690619 - MANIFOLD
  • intake - Was 6670316

2 6670313

  • 6670313 - BOLT

3 6670315

  • 6670315 - GASKET

4 6673170

  • 6673170 - MANIFOLD
  • exhaust - short & long stroke - EPA

5 6666407

  • 6666407 - STUD

6 6672947

  • 6672947 - STUD
  • short & long stroke - EPA & non-EPA - Was 6672947

7 6666473

  • 6666473 - GASKET

8 6666419

  • 6666419 - CLAMP

9 6666427

  • 6666427 - BOLT

10 6672948

  • 6672948 - NUT

11 4DM8

  • 4DM8 - NUT HEX
  • Was 6666398

12 6670314

  • 6670314 - HOSE
  • 3.25" (82
  • 6 mm) long

13 6673171

  • 6673171 - BOLT
  • short & long stroke - non-EPA - Was 6666429

14 6673171

  • 6673171 - BOLT
  • short & long stroke - EPA

15 6666440

  • 6666440 - BUSHING
  • short & long stroke - non-EPA

16 6666472

  • 6666472 - GASKET

17 6666397

  • 6666397 - PLUG

18 6668888

  • 6668888 - WASHER

19 6511720

  • 6511720 - PLUG

20 6672938

  • 6672938 - PLUG

21 6672939

  • 6672939 - O-RING

22 26CM1040

  • 26CM1040 - STUD

23 1DM10

  • 1DM10 - NUT
