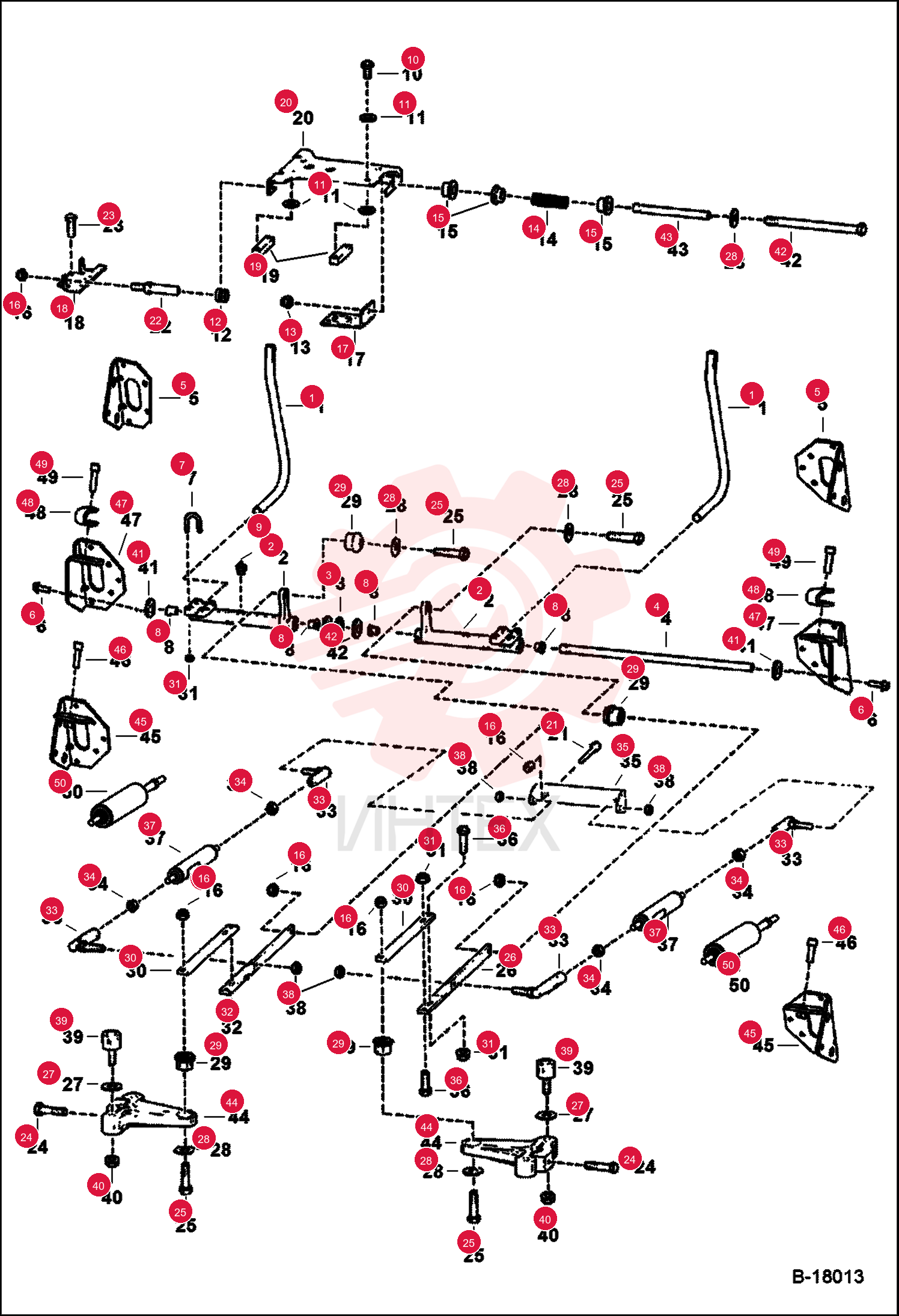

LEVER, STEERING 6702543 (1)

LEVER, STEERING 6702543 (1)

LEVER, STEERING 6702543 (1)

1 6702543

  • 6702543 - LEVER
  • STEERING

2 7110571

  • 7110571 - BELLCRANK
  • STEERING
  • W/notch for Ref. 8 (6703879 bushing) - Use W/Ref. 9 (10H35 grease zerk)

3 6599741

  • 6599741 - WASHER WAVE SPRING
  • wave

4 6716545

  • 6716545 - SHAFT
  • STRG

5 6577230

  • 6577230 - BRACKET
  • L shaped - slotted holes for levers

6 45C620

  • 45C620 - BOLT

7 6732997

  • 6732997 - U-BOLT
  • Was 6700768

8 6673710

  • 6673710 - BEARING
  • NEEDLE
  • Use W/Ref. 2 (NLA/ 6716977
  • NLA/ 7101048 & NLA/ 7110572 bellcranks)

9 6703879

  • 6703879 - BUSHING
  • PLASTIC
  • W/tab - Use W/Ref. 2 (7110571 bellcrank)

10 6518200

  • 6518200 - FITTNG
  • GREASE 10
  • press fit - Use W/Ref. 2 (NLA/ 6716977 & NLA/ 7101048 bellcranks)

11 10H35

  • 10H35 - FTG GREASE STRAIGHT
  • threaded - Use W/Ref. 2 (NLA/ 7110572 bellcrank & 7110571 bellcrank)

12 8C616

  • 8C616 - SCREW

13 6557831

  • 6557831 - WASHER CONTROLS

14 6706098

  • 6706098 - GUIDE
  • PRESS FIT

15 57D6

  • 57D6 - NUT HEX FLNG GR8

16 6701535

  • 6701535 - SPRING CENTERING

17 6715163

  • 6715163 - BUSHING
  • PRESS FIT

18 95D6

  • 95D6 - NUT HEXAGON

19 6576196

  • 6576196 - BRACKET

20 6706096

  • 6706096 - MOUNT

21 6702716

  • 6702716 - BLOCK
  • WEAR

22 6716116

  • 6716116 - BRACKET

23 17C612

  • 17C612 - SCREW HEX CAP

24 6577058

  • 6577058 - PIN
  • HAND CONTROL

25 4CM820

  • 4CM820 - SCREW HEX HD 8.8
  • Was 1CM820

26 35C624

  • 35C624 - SCREW FLGD HEX CAP

27 17C626

  • 17C626 - BOLT

28 25E17

  • 25E17 - WASHER FLAT PLAIN

29 6563914

  • 6563914 - WASHER
  • 1.00" (25
  • 4mm) OD

30 619021

  • 619021 - WASHER
  • 0.13" thick - 32 mm (1.25") OD

31 6665701

  • 6665701 - BUSHING
  • PRESS FIT
  • neoprene - .885" (22
  • 5mm) OD

32 6685060

  • 6685060 - BUSHING TORSION
  • torsion - 26
  • 8 mm (1.055") OD - Was 6678067

33 6716286

  • 6716286 - LINK

34 83D6

  • 83D6 - LKNUT HEX FLG GR8

35 6716117

  • 6716117 - LINK

36 6599744

  • 6599744 - BALL JOINT

37 8D6

  • 8D6 - NUT HEX JAM

38 6706106

  • 6706106 - MOUNT

39 17C620

  • 17C620 - BOLT

40 96D6

  • 96D6 - NUT

41 6673789

  • 6673789 - BEARING
  • ROLLER

42 98D6

  • 98D6 - NUT

43 6716916

  • 6716916 - WASHER
  • plastic

44 17C680

  • 17C680 - BOLT

45 6715164

  • 6715164 - SLEEVE
  • SPRING

46 6729956

  • 6729956 - LEVER
  • PINTLE
  • 1.0425" (26
  • 5mm) ID hole for Ref. 29

47 93G824

  • 93G824 - BOLT
  • Was 73G824

48 7128601

  • 7128601 - BRACKET
  • LH

49 7128600

  • 7128600 - BRACKET
  • RH

50 7121779

  • 7121779 - PAD

51 73G828

  • 73G828 - BOLT

52 7188108

  • 7188108 - GAS SPRING
