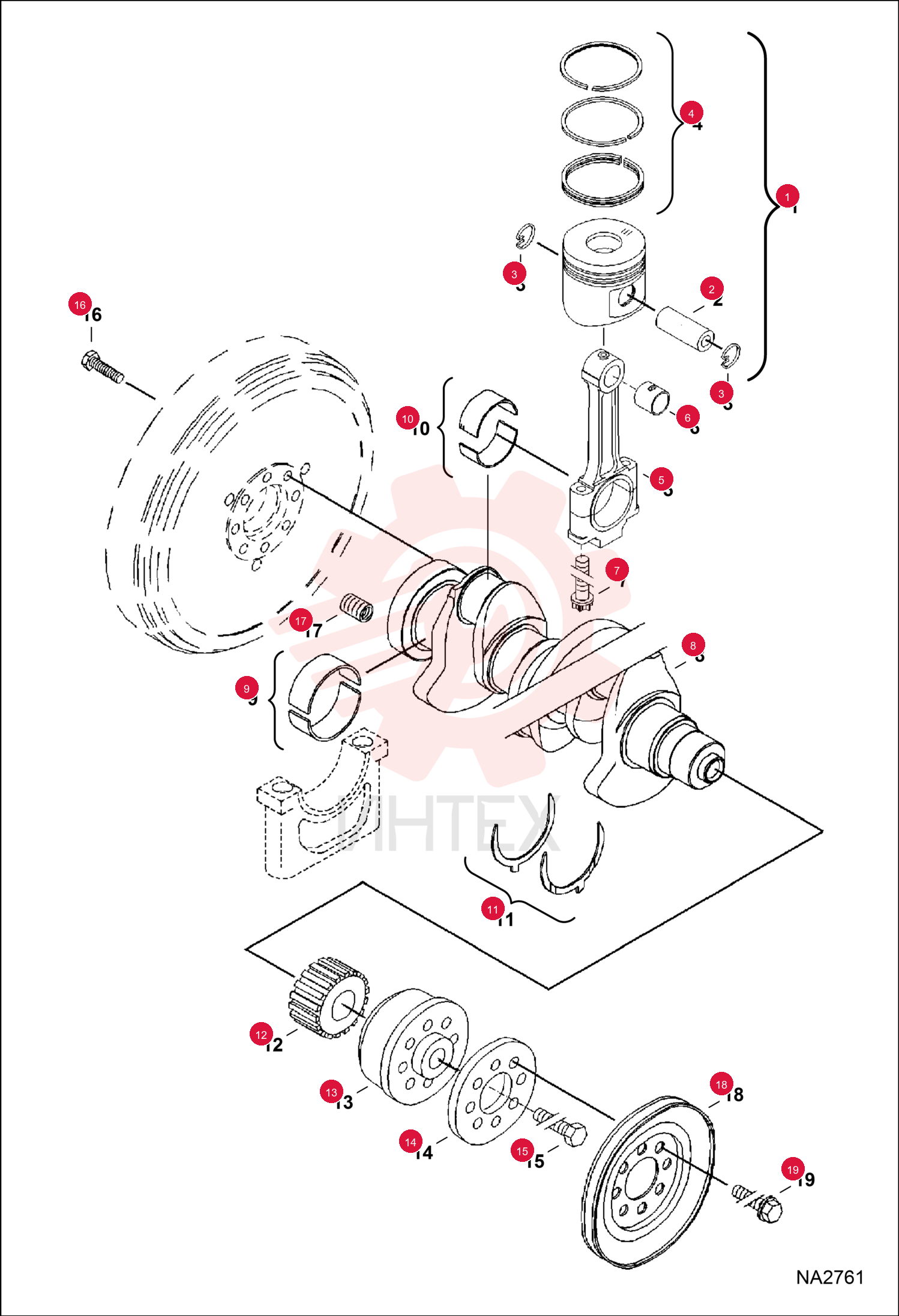

PISTON 6688286 (1)
1 6688286
- 6688286 - PISTON
2 6666470
- 6666470 - PIN
3 6666404
- 6666404 - RING
- SNAP
4 6688275
- 6688275 - SET OF RINGS (STD)
5 6668943
- 6668943 - ROD
- CONNECTING
- W/Ref. 6 & 7
6 6666463
- 6666463 - BUSHING
7 6688263
- 6688263 - BOLT
8 6673150
- 6673150 - CRANKSHAFT
- W/Ref. 9-11
9 6669395
- 6669395 - BEARING
- MAIN
- 2.7559" (70
- 00 mm) - std
10 6669396
- 6669396 - BEARING
- MAIN
- 1st undersize
11 6669397
- 6669397 - BEARING
- MAIN
- 2nd undersize
12 6672889
- 6672889 - BEARING
- rod - 2.165" (55
- 00 mm) - std
13 6672893
- 6672893 - BEARING
- rod - 1st undersize
14 6672894
- 6672894 - BEARING
- rod - 2nd undersize
15 6666456
- 6666456 - WASHER
- THRUST
- std
16 6672892
- 6672892 - WASHER
- thrust - 1st oversize
17 6666471
- 6666471 - PULLEY
18 6688266
- 6688266 - FLANGE OUTPUT
19 6688267
- 6688267 - SPACER
20 6688254
- 6688254 - BOLT
21 6666452
- 6666452 - BOLT
22 6672890
- 6672890 - ADAPTER
- thread
23 6666446
- 6666446 - PULLEY
24 6688178
- 6688178 - BOLT
