Bobcat
/
863.0
/

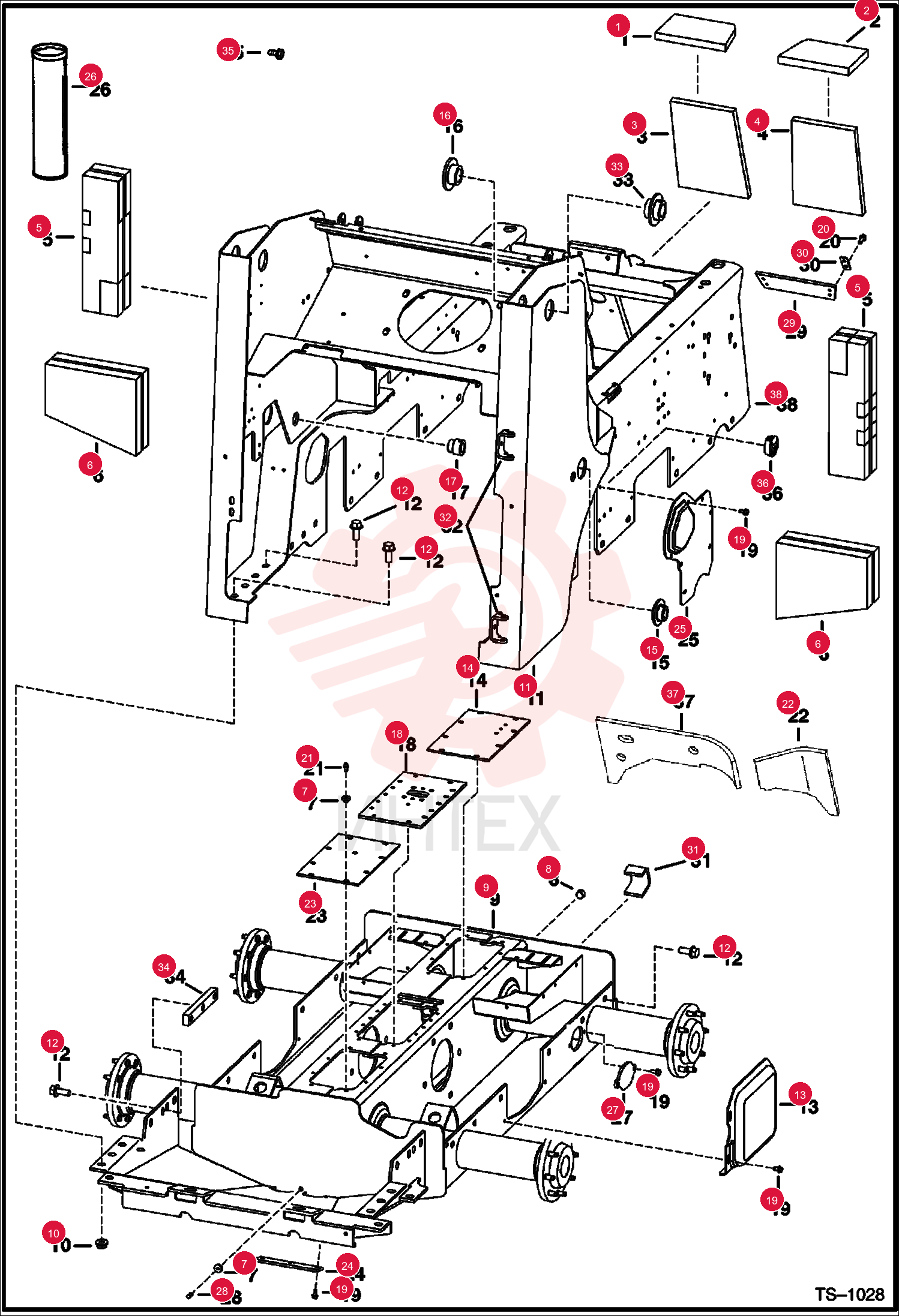

INSULATION 6703963 (1)

INSULATION 6703963 (1)

INSULATION 6703963 (1)

1 6703963

  • 6703963 - INSULATION
  • crossmember

2 6703964

  • 6703964 - INSULATION
  • crossmember

3 6732726

  • 6732726 - INSULATION
  • crossmember - Was 6703965

4 6732725

  • 6732725 - INSULATION
  • crossmember - Was 6703969

5 7152242

  • 7152242 - INSULATION
  • STRIP
  • fender - Was 6703967

6 6703968

  • 6703968 - INSULATION
  • transmission

7 6553411

  • 6553411 - BUSHING
  • PRESS FIT 5

8 6731121

  • 6731121 - PLUG RECESSED PIPE
  • Was 11F000012B

9 6719225

  • 6719225 - CHAINCASE
  • WAS 6709771

10 53D12

  • 53D12 - NUT
  • Was 83D000012B

11 6725574

  • 6725574 - FRAME
  • MAIN ASSY

12 31C1228

  • 31C1228 - BOLT

13 6719168

  • 6719168 - COVER
  • Was 6719201

14 6705047

  • 6705047 - BUSHING
  • weld on

15 6718544

  • 6718544 - BUSHING
  • weld on - Was 6710744

16 6713823

  • 6713823 - BUSHING
  • weld on

17 84G3712

  • 84G3712 - SCREW THD ROLLING TT

18 84G3716

  • 84G3716 - SCREW THD ROLLING TT

19 6680970

  • 6680970 - VENT BREATHER
  • Was 6670627

20 6719333

  • 6719333 - INSULATION
  • BLWR HSG
  • blower housing

21 6700182

  • 6700182 - COVER
  • DRAIN

22 6719086

  • 6719086 - SHIELD
  • RH
  • pump - right - 7 mounting holes - Was 6717110

23 6726451

  • 6726451 - RH PUMP COVER
  • pump - right - 6 mounting holes

24 6719085

  • 6719085 - SHIELD
  • LH
  • pump - left - 7 mounting holes - Was 6717111

25 6726452

  • 6726452 - COVER PUMP LH
  • pump - left - 7 mounting holes

26 6633583

  • 6633583 - SEALANT
  • POLYURETHANE 300 ML
  • chaincase cover

27 6730078

  • 6730078 - COVER
  • cylinder hole

28 6599645

  • 6599645 - PLUG
  • STEEL

29 6702164

  • 6702164 - SPACER
  • flexible

30 6579106

  • 6579106 - STOP

31 6706485

  • 6706485 - BRACKET
  • tie down - weld-on

32 6708987

  • 6708987 - HINGE
  • WELD-ON

33 6718545

  • 6718545 - BUSHING
  • weld-on - Was 6710745

34 6726867

  • 6726867 - BAR
  • 2 Hole Bar - Was 6706857

35 6706857

  • 6706857 - THD-BAR
  • 3 Hole Bar

36 6718486

  • 6718486 - PLUG

37 6718796

  • 6718796 - PLUG
  • front crossmember & right fender - Was 6660646

38 6719332

  • 6719332 - INSULATION
  • BLWR HSG
  • blower housing

39 6731939

  • 6731939 - BRACE
