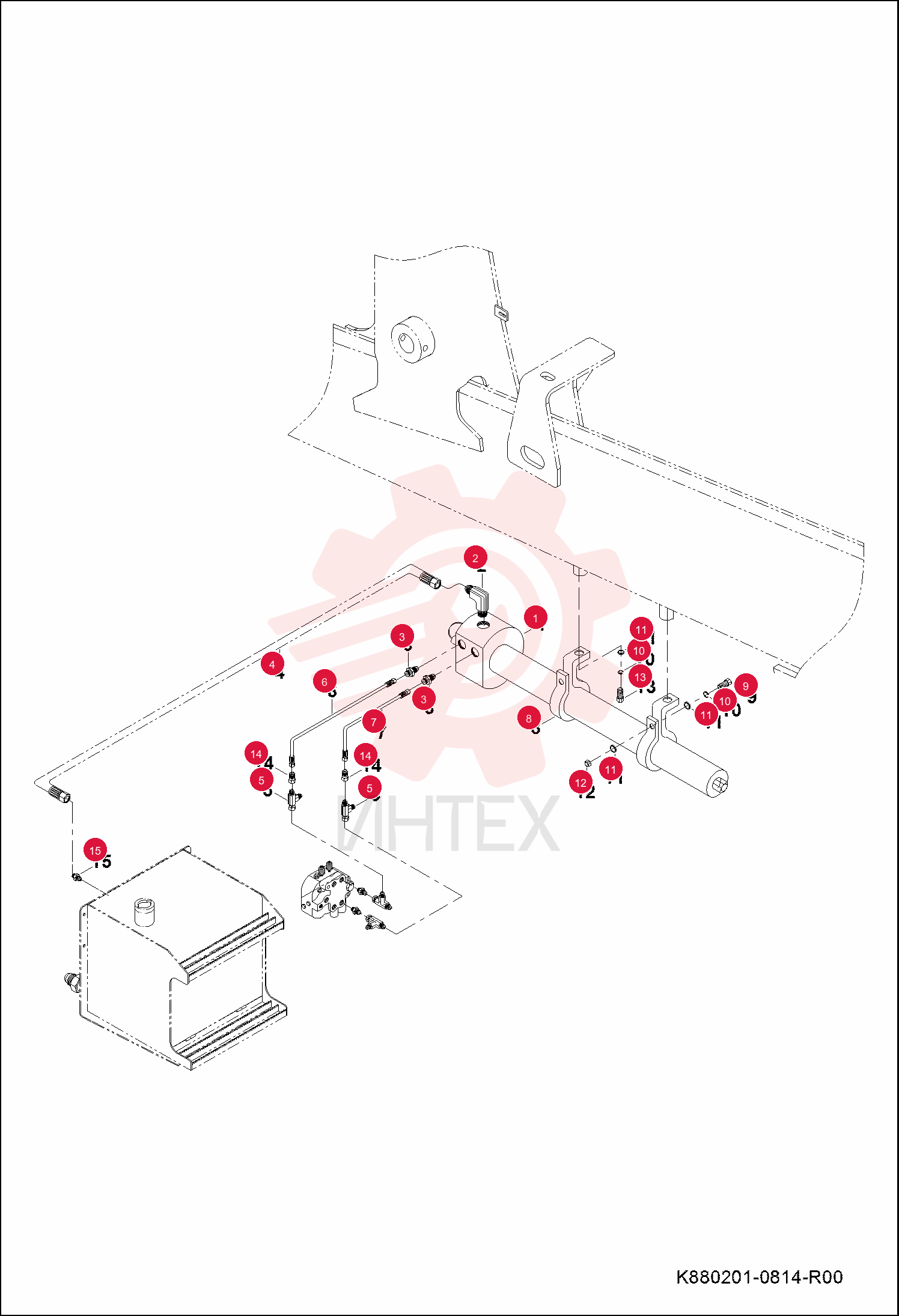

ACCUMULATOR

ACCUMULATOR

ACCUMULATOR

1 7290923

  • 7290923 - ACCUMULATOR

2 7289720

  • 7289720 - FITTING HYDRAULIC

3 7289718

  • 7289718 - FITTING HYDRAULIC

4 7290924

  • 7290924 - HOSE

5 7289698

  • 7289698 - T-FITTING

6 7290925

  • 7290925 - HOSE

7 7290926

  • 7290926 - HOSE

8 7290927

  • 7290927 - CLAMP

9 7289849

  • 7289849 - BOLT HEX

10 7289259

  • 7289259 - WASHER LOCK

11 7289278

  • 7289278 - WASHER FLAT

12 7289637

  • 7289637 - NUT HEX

13 7289258

  • 7289258 - BOLT HEX

14 7290928

  • 7290928 - ADAPTER

15 7289724

  • 7289724 - FITTING HYDRAULIC
