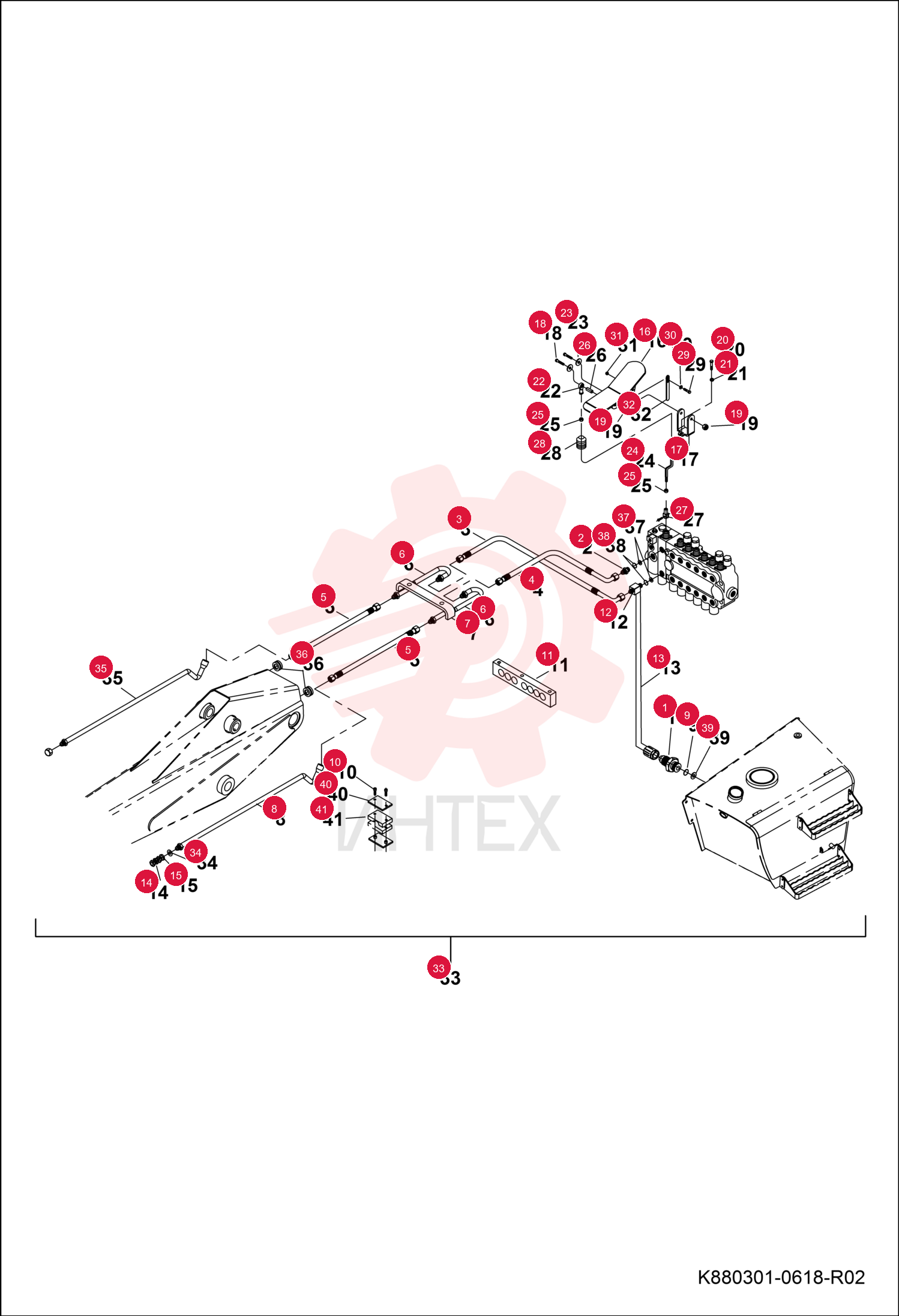

FITTING HYDRAULIC
1 7290916
- 7290916 - FITTING HYDRAULIC
2 7289805
- 7289805 - FITTING HYDRAULIC
3 7290842
- 7290842 - HOSE
4 7290843
- 7290843 - HOSE
5 7290929
- 7290929 - HOSE
6 7290841
- 7290841 - PIPE
7 7290870
- 7290870 - HOSE CLAMP
8 7355731
- 7355731 - PIPE
9 7355732
- 7355732 - O-RING
10 7291454
- 7291454 - BOLT HEX
11 7290869
- 7290869 - HOSE CLAMP
12 7290913
- 7290913 - T-FITTING
13 7294989
- 7294989 - HOSE
14 7290917
- 7290917 - COUPLER FEMALE
15 7290918
- 7290918 - COUPLER MALE
16 7290837
- 7290837 - PEDAL ASSEMBLY
17 7290838
- 7290838 - JOINT FITTING
18 7289148
- 7289148 - BOLT HEX
19 7289641
- 7289641 - NUT HEX
20 7289279
- 7289279 - BOLT HEX
21 7289262
- 7289262 - WASHER FLAT
22 7290832
- 7290832 - JOINT FITTING
23 7288892
- 7288892 - WASHER FLAT
24 7290834
- 7290834 - ROD
25 7289263
- 7289263 - NUT HEX
26 7290835
- 7290835 - SEAL BUSHING
27 7292109
- 7292109 - ROD HEAD
28 7290836
- 7290836 - BOOT RUBBER
29 7289595
- 7289595 - BOLT HEX
30 7289610
- 7289610 - WASHER FLAT
31 7289785
- 7289785 - NUT HEX
32 7290840
- 7290840 - PLATE SUPPORT
33 7355733
- 7355733 - ASSEMBLY
34 7291534
- 7291534 - O-RING
35 7290930
- 7290930 - PIPE
36 7291636
- 7291636 - GROMMET RUBBER
37 7293566
- 7293566 - WASHER FLAT
38 7293567
- 7293567 - O-RING
39 7355734
- 7355734 - WASHER
40 7292646
- 7292646 - CLAMP TOP PLATE
41 7292647
- 7292647 - CLAMP BLOCK
