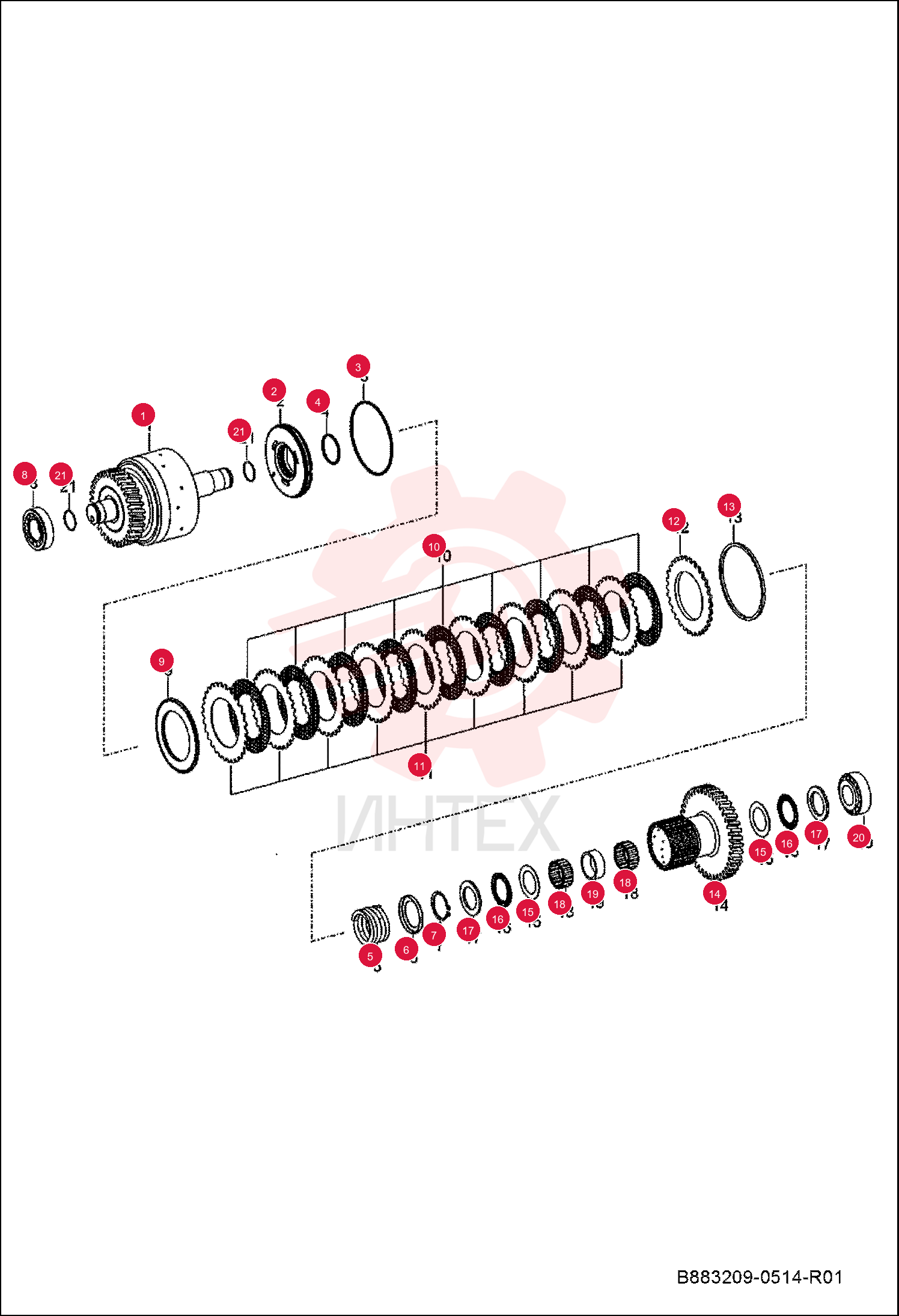

TRANSMISSION COUPLER ASSY 7291199 (2)

TRANSMISSION COUPLER ASSY 7291199 (2)

TRANSMISSION COUPLER ASSY 7291199 (2)

1 7291199

  • 7291199 - TRANSMISSION COUPLER ASSY

2 7291044

  • 7291044 - PISTON UNION

3 7291045

  • 7291045 - O-RING

4 7291046

  • 7291046 - O-RING

5 7291048

  • 7291048 - SEAL RING

6 7291049

  • 7291049 - RING SEAL

7 7291050

  • 7291050 - RING RETAINING

8 7291179

  • 7291179 - BEARING

9 7291168

  • 7291168 - WASHER FLAT

10 7291167

  • 7291167 - SPRING WASHER

11 7291052

  • 7291052 - DISC CLUTCH

12 7291053

  • 7291053 - DISC CLUTCH

13 7291054

  • 7291054 - SHIM RING

14 7291203

  • 7291203 - SNAP RING A=2.75

15 7291202

  • 7291202 - SNAP RING A=2.5

16 7291201

  • 7291201 - SNAP RING A=2.25

17 7291200

  • 7291200 - SNAP RING A=2.0

18 7291204

  • 7291204 - SNAP RING A=3.0

19 7291205

  • 7291205 - SNAP RING A=3.25

20 7291207

  • 7291207 - SNAP RING A=3.75

21 7291208

  • 7291208 - SNAP RING A=4.0

22 7291206

  • 7291206 - SNAP RING A=3.5

23 7291209

  • 7291209 - CARRIER DISC

24 7291210

  • 7291210 - WASHER FLAT

25 7291211

  • 7291211 - WASHER FLAT

26 7291212

  • 7291212 - DISC FRICTION

27 7291213

  • 7291213 - WASHER FLAT

28 7291214

  • 7291214 - BUSHING SPACER

29 7291124

  • 7291124 - ROLLER BEARING

30 7291157

  • 7291157 - RING SEAL
