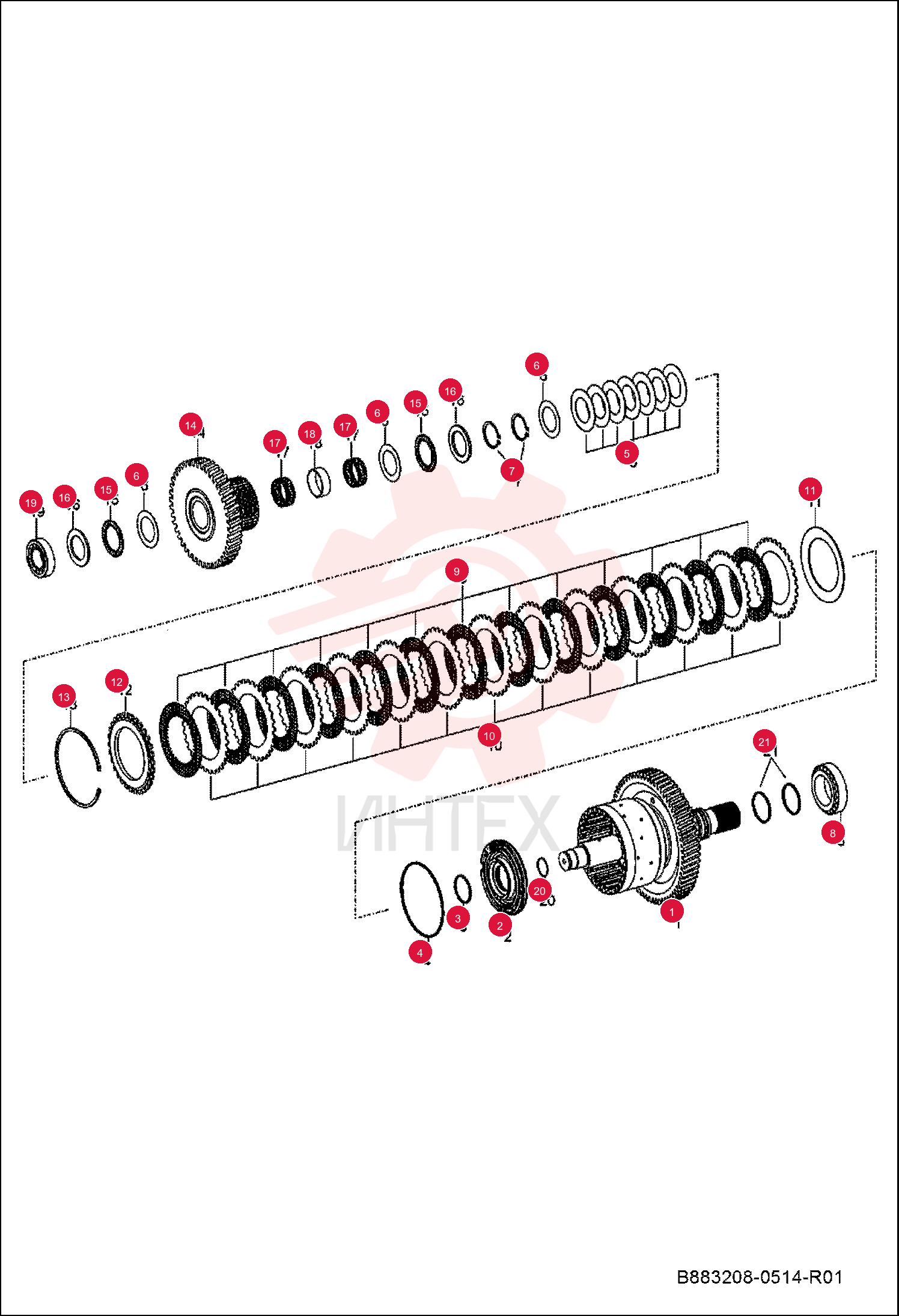

COUPLING 7291180 (2)

COUPLING 7291180 (2)

COUPLING 7291180 (2)

1 7291180

  • 7291180 - COUPLING

2 7291181

  • 7291181 - FLANGE COLLAR

3 7291046

  • 7291046 - O-RING

4 7291182

  • 7291182 - O-RING

5 7291183

  • 7291183 - SPRING COIL

6 7291065

  • 7291065 - WASHER FLAT

7 7291050

  • 7291050 - RING RETAINING

8 7291184

  • 7291184 - ROLLER BEARING

9 7291141

  • 7291141 - DISC CLUTCH

10 7291142

  • 7291142 - DISC CLUTCH

11 7291185

  • 7291185 - SEAL AXLE

12 7291186

  • 7291186 - SHIM

13 7291191

  • 7291191 - SNAP RING A=3.0

14 7291190

  • 7291190 - SNAP RING A=2.75

15 7291189

  • 7291189 - SNAP RING A=2.5

16 7291188

  • 7291188 - SNAP RING A=2.25

17 7291187

  • 7291187 - SNAP RING A=2.0

18 7291192

  • 7291192 - SNAP RING A=3.25

19 7291193

  • 7291193 - SNAP RING A=3.50

20 7291195

  • 7291195 - SNAP RING A=4.0

21 7291194

  • 7291194 - SNAP RING A=3.75

22 7291196

  • 7291196 - DISC CARRIER

23 7291066

  • 7291066 - WASHER FLAT

24 7291067

  • 7291067 - DISC CLUTCH

25 7291068

  • 7291068 - WASHER FLAT

26 7291197

  • 7291197 - BUSH

27 7291124

  • 7291124 - ROLLER BEARING

28 7291157

  • 7291157 - RING SEAL

29 7291198

  • 7291198 - PISTON RING
