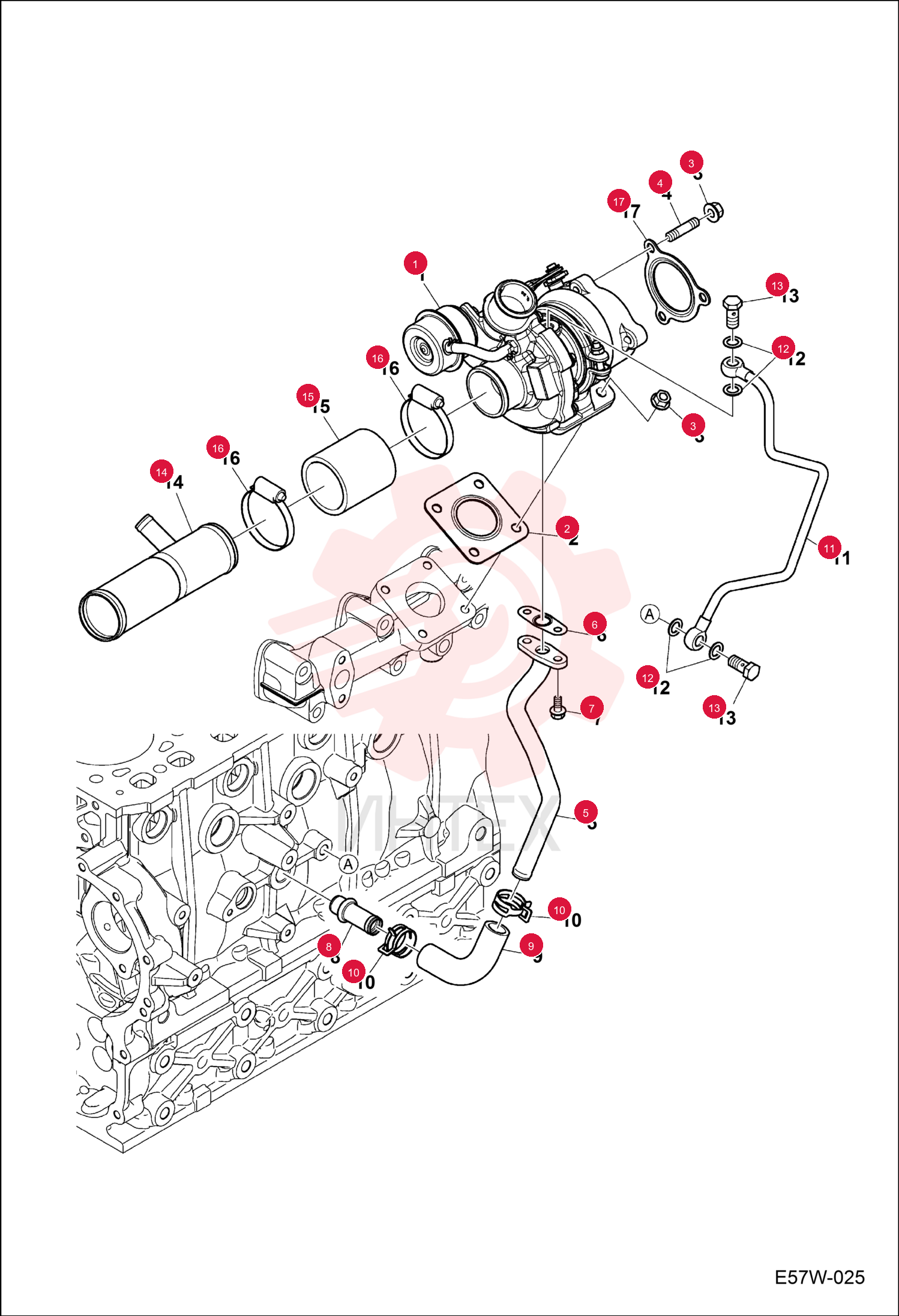

TURBOCHARGER ENGINE 7330048

TURBOCHARGER ENGINE 7330048

TURBOCHARGER ENGINE 7330048

1 7330048

  • 7330048 - TURBOCHARGER ENGINE

2 7249370

  • 7249370 - GASKET
  • TURBOCHARGER
  • Was 7030340

3 7030370

  • 7030370 - NUT

4 7256728

  • 7256728 - STUD

5 7288085

  • 7288085 - PIPE

6 7030339

  • 7030339 - GASKET

7 7030282

  • 7030282 - BOLT

8 7030401

  • 7030401 - PLUG
  • OIL

9 7030359

  • 7030359 - HOSE
  • RETURN

10 7030308

  • 7030308 - CLAMP
  • HOSE

11 7030383

  • 7030383 - TUBE
  • OIL

12 7030420

  • 7030420 - RING
  • SEAL

13 7261662

  • 7261662 - SCREW

14 7030827

  • 7030827 - PIPE
  • INTAKE

15 7030362

  • 7030362 - HOSE

16 7030309

  • 7030309 - CLAMP
  • HOSE

17 7030341

  • 7030341 - GASKET TURBOCHARGER
