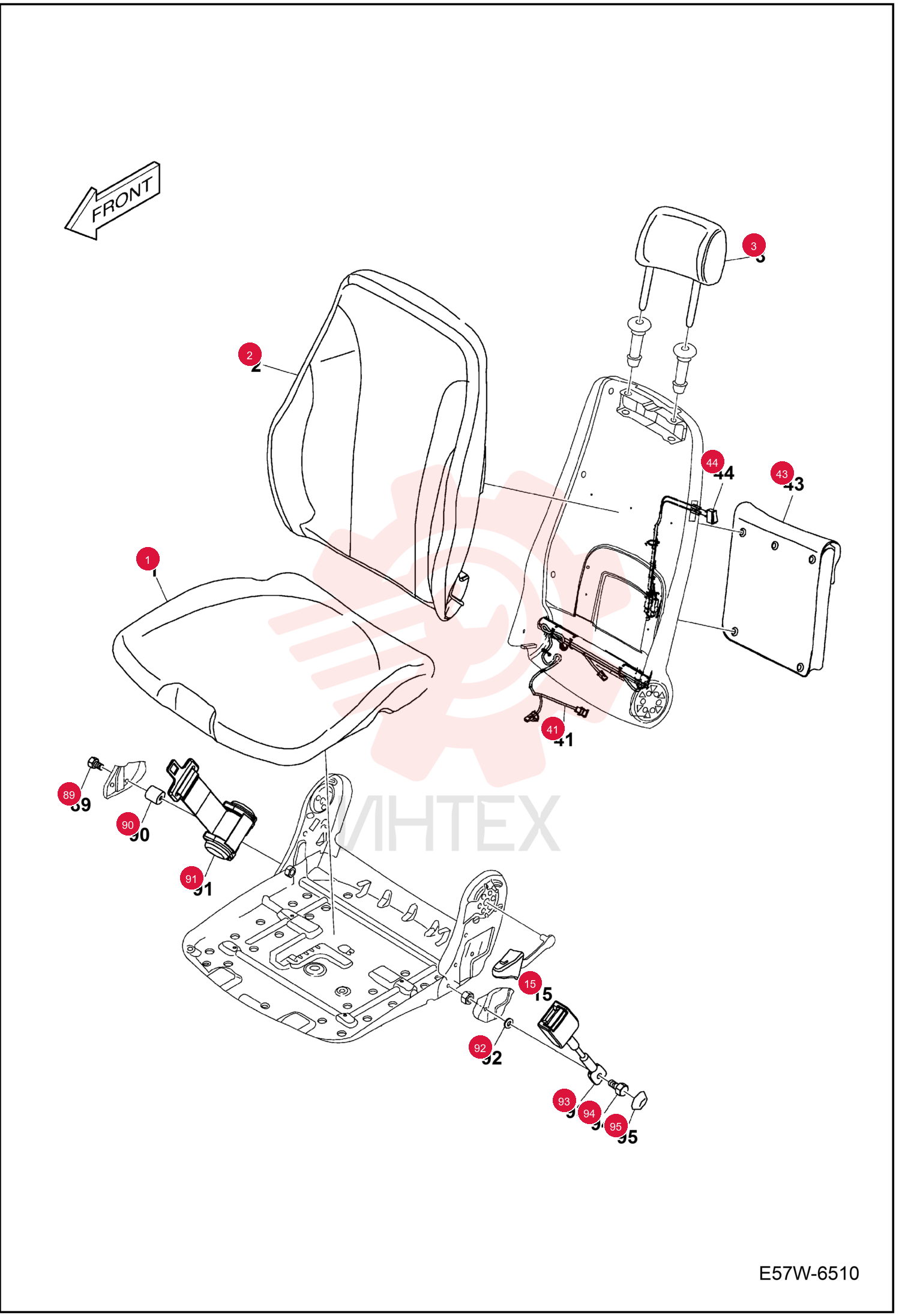

SEAT OPERATOR 7330084 (1)

SEAT OPERATOR 7330084 (1)

SEAT OPERATOR 7330084 (1)

1 7330084

  • 7330084 - SEAT OPERATOR

2 7330086

  • 7330086 - CUSHION SEAT

3 7006948

  • 7006948 - HEAD REST

4 7287297

  • 7287297 - ADJUSTER

5 7327923

  • 7327923 - WIRE LEAD

6 7006951

  • 7006951 - BAG DOCUMENT

7 7322956

  • 7322956 - SWITCH HEATER

8 7288167

  • 7288167 - SCREW

9 7287366

  • 7287366 - BOLT
  • HEX

10 7287321

  • 7287321 - BELT
  • SEAT

11 7288599

  • 7288599 - WASHER

12 7322957

  • 7322957 - BELT SEAT

13 7287563

  • 7287563 - COVER

14 7288172

  • 7288172 - SCREW
