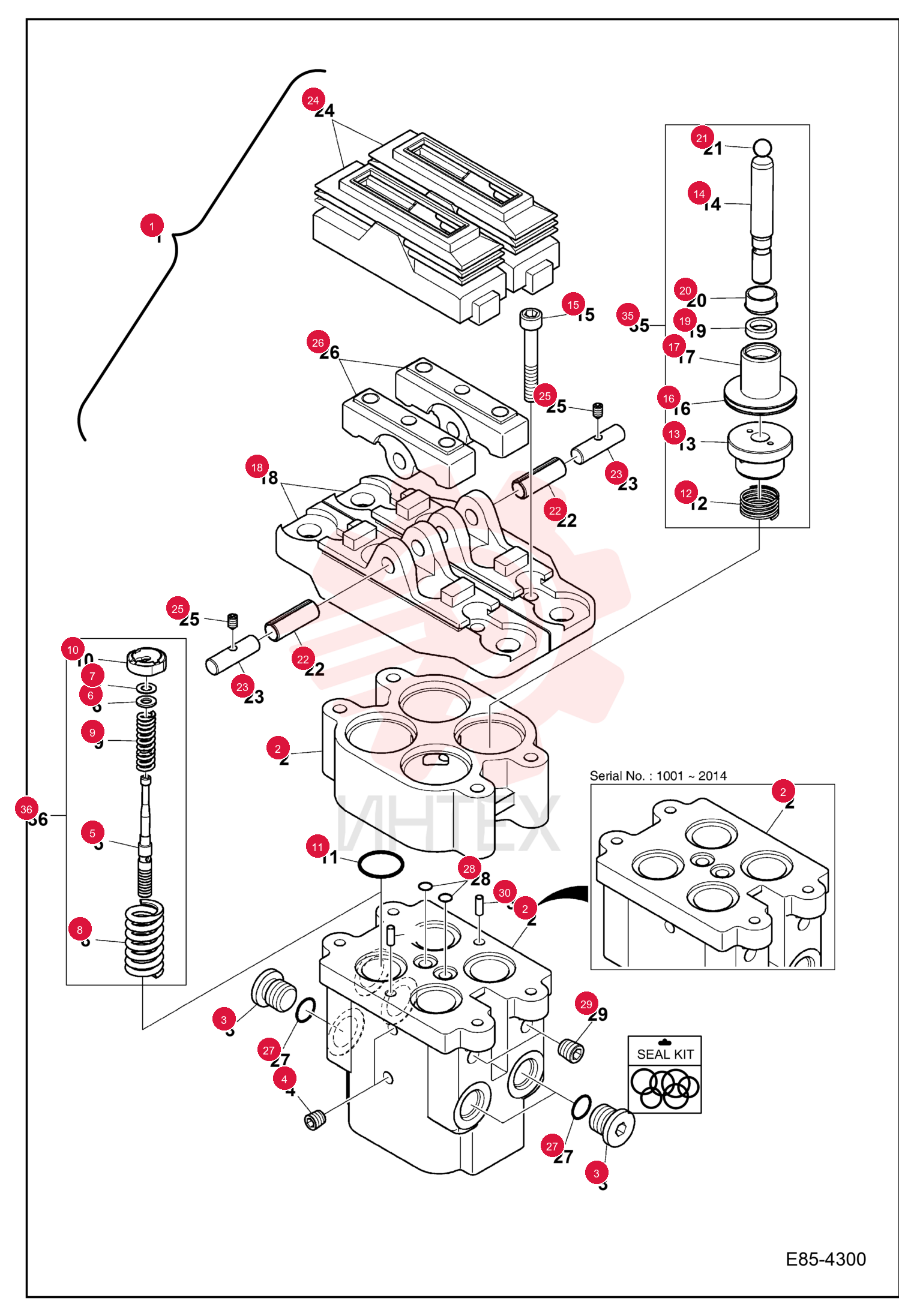

VALVE PEDAL 7283299

VALVE PEDAL 7283299

VALVE PEDAL 7283299

1 7283299

  • 7283299 - VALVE PEDAL
  • Ref. 2-37

2 7004727

  • 7004727 - PLUG

3 7003955

  • 7003955 - PLUG

4 7007913

  • 7007913 - O-RING
  • Was 7007912

5 7007730

  • 7007730 - BOLT SOCKET

6 7004663

  • 7004663 - O-RING

7 7008285

  • 7008285 - COVER

8 7004457

  • 7004457 - BUSHING

9 7007040

  • 7007040 - SHAFT CAM

10 7007041

  • 7007041 - DIAPHRAGM BELLOWS

11 7007791

  • 7007791 - BOLT

12 7028862

  • 7028862 - CAM

13 7283267

  • 7283267 - O-RING
  • Was 7007906

14 7007903

  • 7007903 - O-RING

15 7004673

  • 7004673 - PLUG

16 7283289

  • 7283289 - PIN
  • PARALLEL

17 7029312

  • 7029312 - KIT
  • PLUG

18 7029409

  • 7029409 - SPOOL
  • ACTUATOR ASSY
