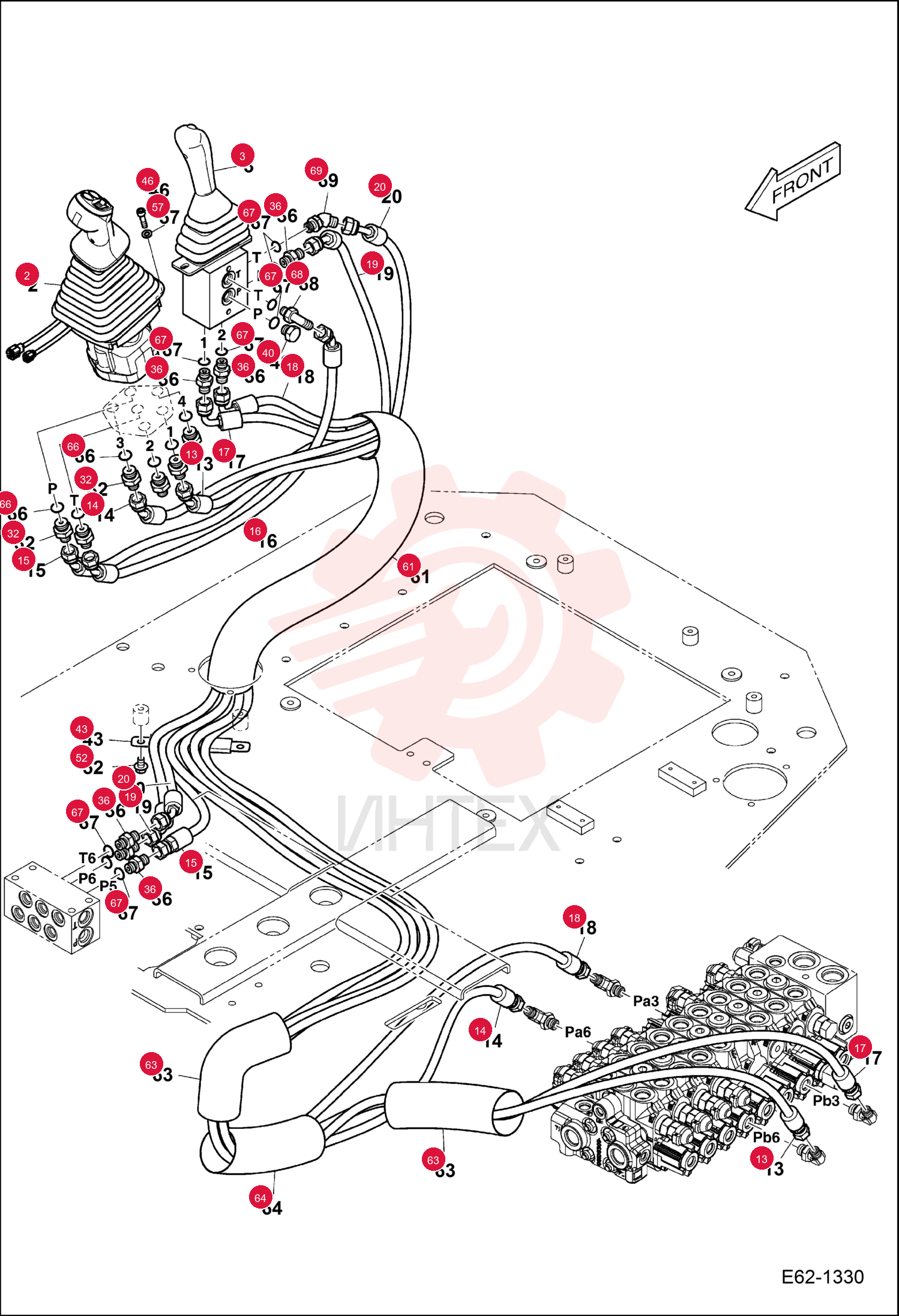

VALVE, JOYSTICK RH 7301828 (1)

VALVE, JOYSTICK RH 7301828 (1)

VALVE, JOYSTICK RH 7301828 (1)

1 7301828

  • 7301828 - VALVE
  • JOYSTICK RH
  • - one wire

2 7030028

  • 7030028 - JOYSTICK
  • BLADE

3 7005284

  • 7005284 - HOSE

4 7029869

  • 7029869 - HOSE
  • HYD

5 7029151

  • 7029151 - HOSE
  • HYD

6 7029156

  • 7029156 - HOSE
  • HYD

7 7029791

  • 7029791 - HOSE

8 7029784

  • 7029784 - HOSE

9 7029821

  • 7029821 - HOSE
  • HYD

10 7029822

  • 7029822 - HOSE
  • HYD

11 7004694

  • 7004694 - ADAPTER

12 7004683

  • 7004683 - ADAPTER

13 7004732

  • 7004732 - PLUG

14 7021815

  • 7021815 - CLIP

15 7007726

  • 7007726 - BOLT

16 7005629

  • 7005629 - BOLT

17 7007814

  • 7007814 - WASHER

18 7029943

  • 7029943 - GUARD
  • HOSE

19 7006523

  • 7006523 - GUARD PROTECTOR

20 7006523

  • 7006523 - GUARD PROTECTOR

21 7284551

  • 7284551 - O-RING
  • Was 7007909

22 7283267

  • 7283267 - O-RING
  • Was 7007906

23 7030062

  • 7030062 - FITTING

24 7004755

  • 7004755 - ELBOW
