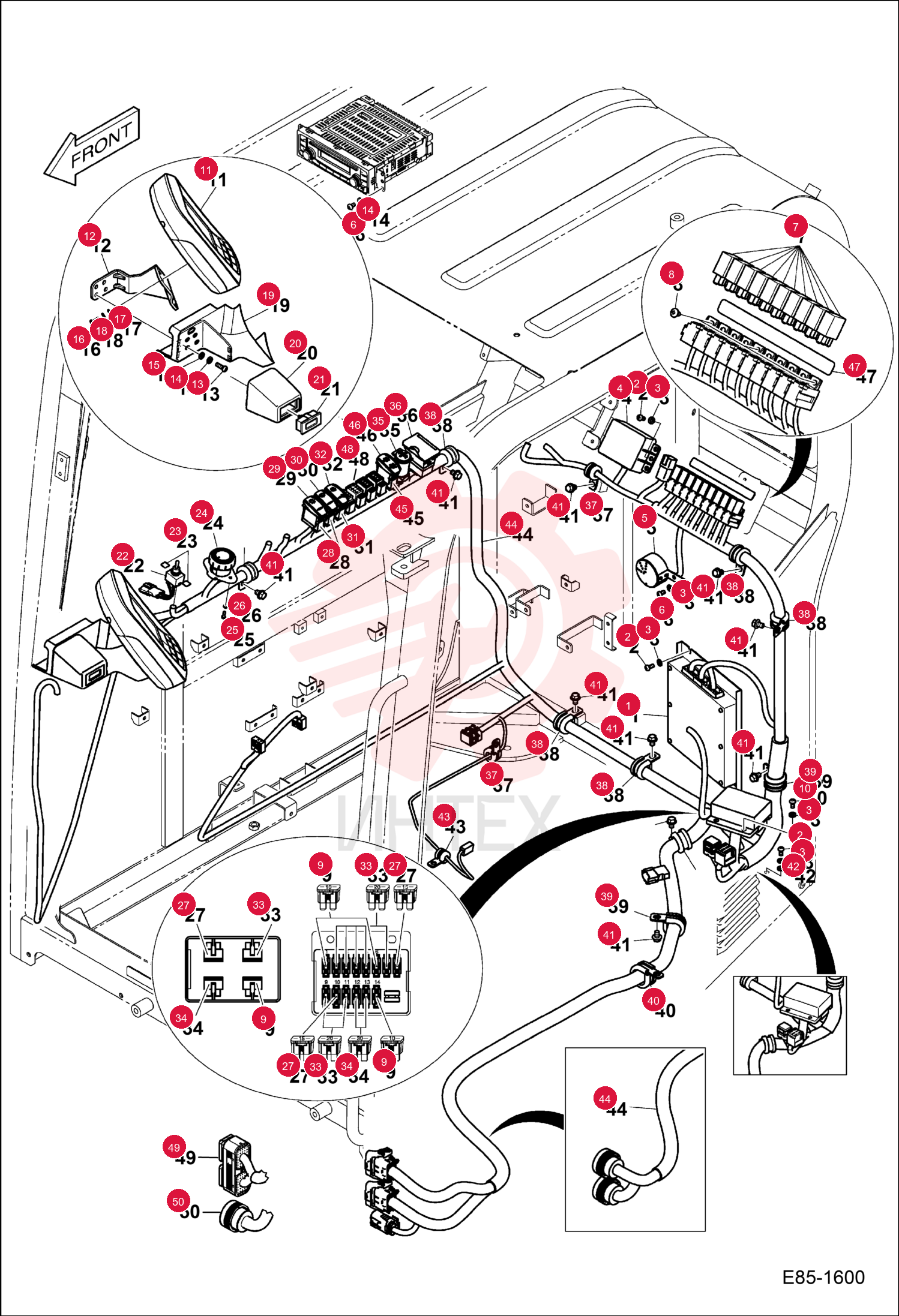

CONTROLLER VCU 7261983 (1)

CONTROLLER VCU 7261983 (1)

CONTROLLER VCU 7261983 (1)

1 7261983

  • 7261983 - CONTROLLER VCU

2 7301855

  • 7301855 - CONTROLLER

3 7369082

  • 7369082 - CONTROLLER VCU

4 7007785

  • 7007785 - SCREW M6X1.0X12

5 7007833

  • 7007833 - WASHER
  • SPRING

6 7029464

  • 7029464 - RELAY

7 7004890

  • 7004890 - ALARM PILOT

8 7007784

  • 7007784 - SCREW M6X1.0X10

9 7017375

  • 7017375 - RELAY

10 7004548

  • 7004548 - BOLT

11 7004893

  • 7004893 - FUSE BLADE 10A

12 7007787

  • 7007787 - BOLT

13 7301853

  • 7301853 - PANEL
  • CONTROL

14 7368857

  • 7368857 - PANEL CONTROL

15 7275618

  • 7275618 - PANEL
  • CONTROL

16 7029250

  • 7029250 - PANEL
  • CONTROL

17 7028760

  • 7028760 - BRACKET
  • MONITOR

18 7007788

  • 7007788 - BOLT

19 7007828

  • 7007828 - WASHER SPRING

20 7007811

  • 7007811 - WASHER PLAIN

21 7007781

  • 7007781 - BOLT

22 7007810

  • 7007810 - WASHER

23 7007832

  • 7007832 - WASHER SPRING

24 7028955

  • 7028955 - COVER

25 7028867

  • 7028867 - COVER

26 7004899

  • 7004899 - METER HOUR

27 7010479

  • 7010479 - SWITCH
  • TOGGLE
  • emergency shut-off

28 7006280

  • 7006280 - DECAL E/G STOP

29 7021835

  • 7021835 - DIAL

30 7007777

  • 7007777 - BOLT

31 7007826

  • 7007826 - WASHER SPRING

32 7004894

  • 7004894 - FUSE BLADE 15A

33 7029451

  • 7029451 - SWITCH
  • ROCKER

34 7029445

  • 7029445 - SWITCH ROCKER
  • lights

35 7029442

  • 7029442 - SWITCH ROCKER

36 7029448

  • 7029448 - SWITCH
  • ROCKER

37 7029446

  • 7029446 - SWITCH ROCKER
  • washer

38 7004895

  • 7004895 - FUSE BLADE 20A

39 7004897

  • 7004897 - FUSE BLADE 30A

40 7029399

  • 7029399 - SOCKET
  • POWER

41 7029010

  • 7029010 - CONNECTOR
  • ELECTRICAL

42 7003894

  • 7003894 - CLIP

43 7003895

  • 7003895 - CLIP

44 7003896

  • 7003896 - CLIP

45 7003897

  • 7003897 - CLIP

46 7005629

  • 7005629 - BOLT

47 7007814

  • 7007814 - WASHER

48 7029532

  • 7029532 - CLIP

49 7343984

  • 7343984 - HARNESS CAB

50 7369083

  • 7369083 - HARNESS CAB

51 7312843

  • 7312843 - HARNESS CAB

52 7299804

  • 7299804 - HARNESS
  • CAB

53 7293889

  • 7293889 - HARNESS
  • WIRE

54 7029072

  • 7029072 - HARNESS
  • CAB

55 7269282

  • 7269282 - HARNESS
  • CAB

56 7029441

  • 7029441 - SWITCH ROCKER

57 7029444

  • 7029444 - SWITCH ROCKER
  • DPF

58 7029301

  • 7029301 - PLATE
  • NAME

59 7255000

  • 7255000 - SWITCH
  • ROCKER
  • quick clamp - if equipped

60 7303720

  • 7303720 - KIT
  • HARNESS
  • square connector

61 7303719

  • 7303719 - KIT
  • HARNESS
  • round connector
