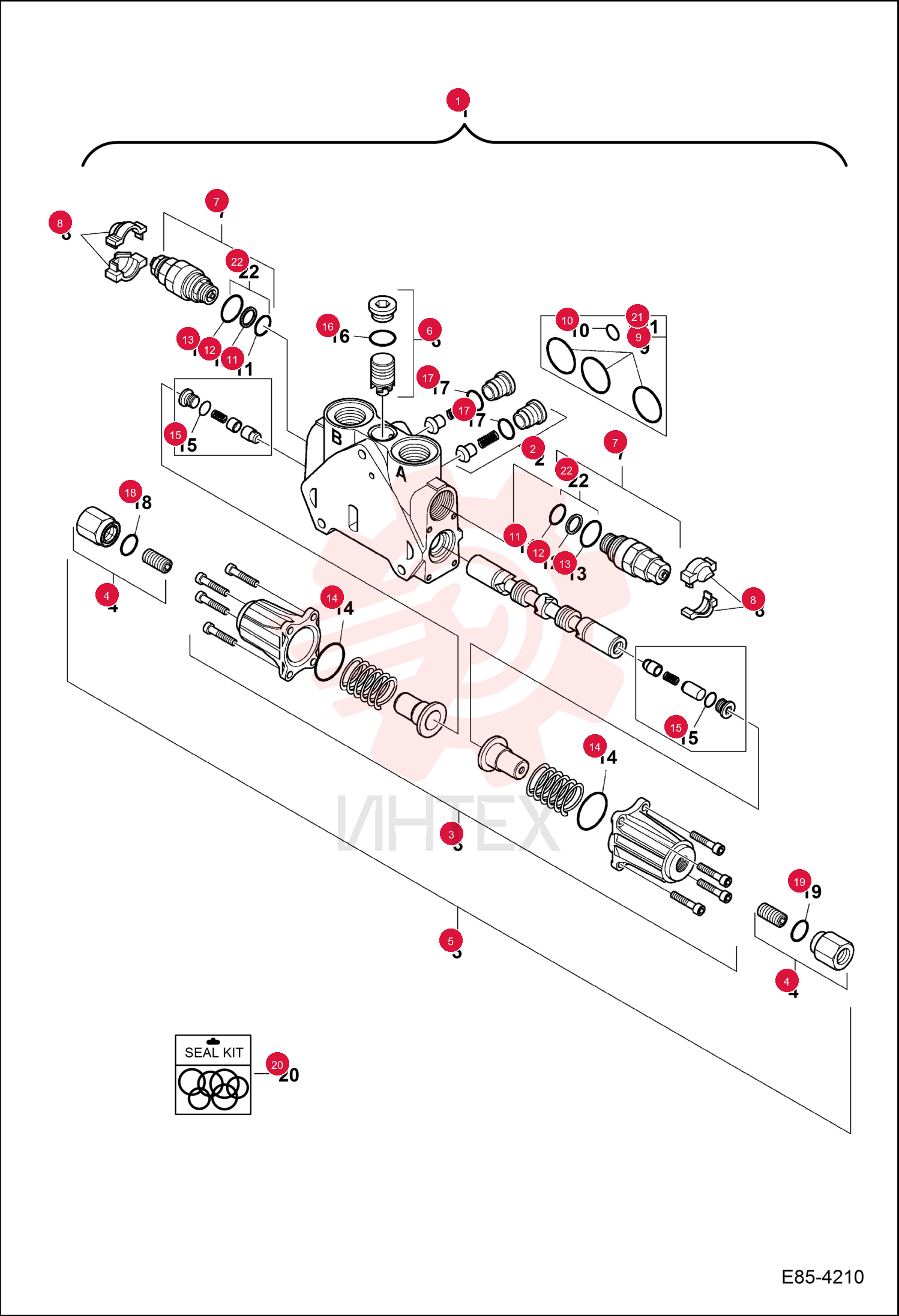

SECTION, VALVE 7284552 (2)

SECTION, VALVE 7284552 (2)

SECTION, VALVE 7284552 (2)

1 7284552

  • 7284552 - SECTION
  • VALVE
  • Ref. 2-19 - auxiliary - Was 7277025

2 7029373

  • 7029373 - SECTION
  • VALVE
  • Ref. 2-3 & 6-19 - auxiliary

3 6691133

  • 6691133 - CHECK VALVE
  • Was 7029475

4 7007576

  • 7007576 - CAP PLUNGER KIT

5 6691075

  • 6691075 - KIT STROKE LIMITOR
  • Was 7007574

6 7007577

  • 7007577 - CAP PLUNGER KIT
  • Ref. 3-4

7 7007572

  • 7007572 - VALVE

8 6685249

  • 6685249 - VALVE
  • RELIEF
  • Was 7007571

9 6687072

  • 6687072 - CAP
  • Was 7007558

10 7029356

  • 7029356 - KIT
  • SEAL
  • Ref. 9-10 & 14-19

11 7007565

  • 7007565 - KIT
  • SEAL
  • Ref. 9-10

12 7007560

  • 7007560 - KIT
  • SEAL
  • Ref. 11-13
