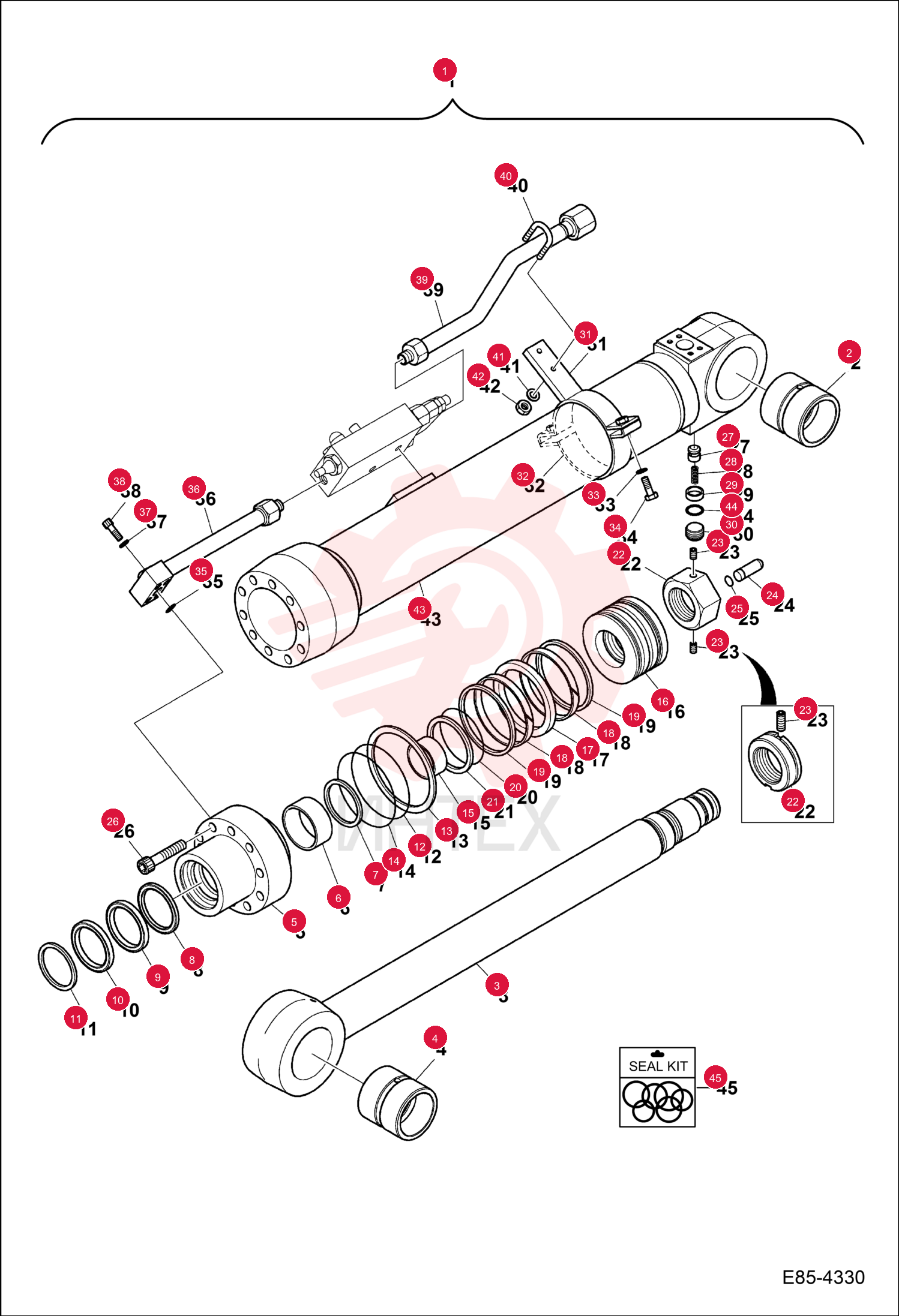

CYLINDER, ARM 7278025 (1)
1 7278025
- 7278025 - CYLINDER
- ARM
- Ref. 2-43
2 7028773
- 7028773 - BUSHING
3 7029342
- 7029342 - ROD
- CYL
4 7278032
- 7278032 - ROD CYLINDER
5 7028773
- 7028773 - BUSHING
6 7278026
- 7278026 - COVER
- ROD
- Was 7278027
7 7003709
- 7003709 - BUSHING DD
8 7003722
- 7003722 - RING RETAINING
9 7003788
- 7003788 - SEAL BUFFER
10 7003758
- 7003758 - SEAL
11 7003791
- 7003791 - WIPER DUST
12 7003862
- 7003862 - RING RETAINING
13 7007944
- 7007944 - O-RING
14 7003766
- 7003766 - RING BACK-UP
15 7007945
- 7007945 - O-RING
16 7006835
- 7006835 - RING CUSHION
17 7006847
- 7006847 - PISTON
18 7003947
- 7003947 - SEAL SLIPPER
19 7007507
- 7007507 - RING WEAR
20 7007502
- 7007502 - RING DUST
21 7003755
- 7003755 - O-RING
22 7006829
- 7006829 - RING BACK-UP
23 7278027
- 7278027 - NUT
24 7007792
- 7007792 - SCREW SET
25 7007792
- 7007792 - SCREW SET
26 7003836
- 7003836 - DIAPHRAGM PLUNGER CUSHION
27 7003728
- 7003728 - RING STOP
28 7007772
- 7007772 - BOLT HEX SOCKET
29 7003826
- 7003826 - VALVE CHECK
30 7003742
- 7003742 - SPRING
31 7003804
- 7003804 - SUPPORT SPRING
32 7004674
- 7004674 - PLUG PT3/8
33 7278033
- 7278033 - FITTING PLUG
34 7007532
- 7007532 - TUBELINE BAND ASSY
35 7007508
- 7007508 - BAND TUBELINE
36 7007830
- 7007830 - WASHER SPRING
37 7007669
- 7007669 - BOLT
- Was 7007668
38 7007913
- 7007913 - O-RING
- Was 7007912
39 7311966
- 7311966 - TUBELINE CYLINDER
40 7008290
- 7008290 - TUBELINE ASSY
41 7007829
- 7007829 - WASHER
42 7007740
- 7007740 - BOLT SOCKET M8X45
43 7008291
- 7008291 - TUBELINE ASSY
44 7007505
- 7007505 - U-BOLT
45 7007829
- 7007829 - WASHER
46 7007796
- 7007796 - NUT
47 7029465
- 7029465 - TUBELINE
- HYD
48 7278030
- 7278030 - TUBE CYLINDER
49 7007909
- 7007909 - O-RING
50 7007412
- 7007412 - KIT
- SEAL
- Ref. 8-10
- 12-14 & 17-21
