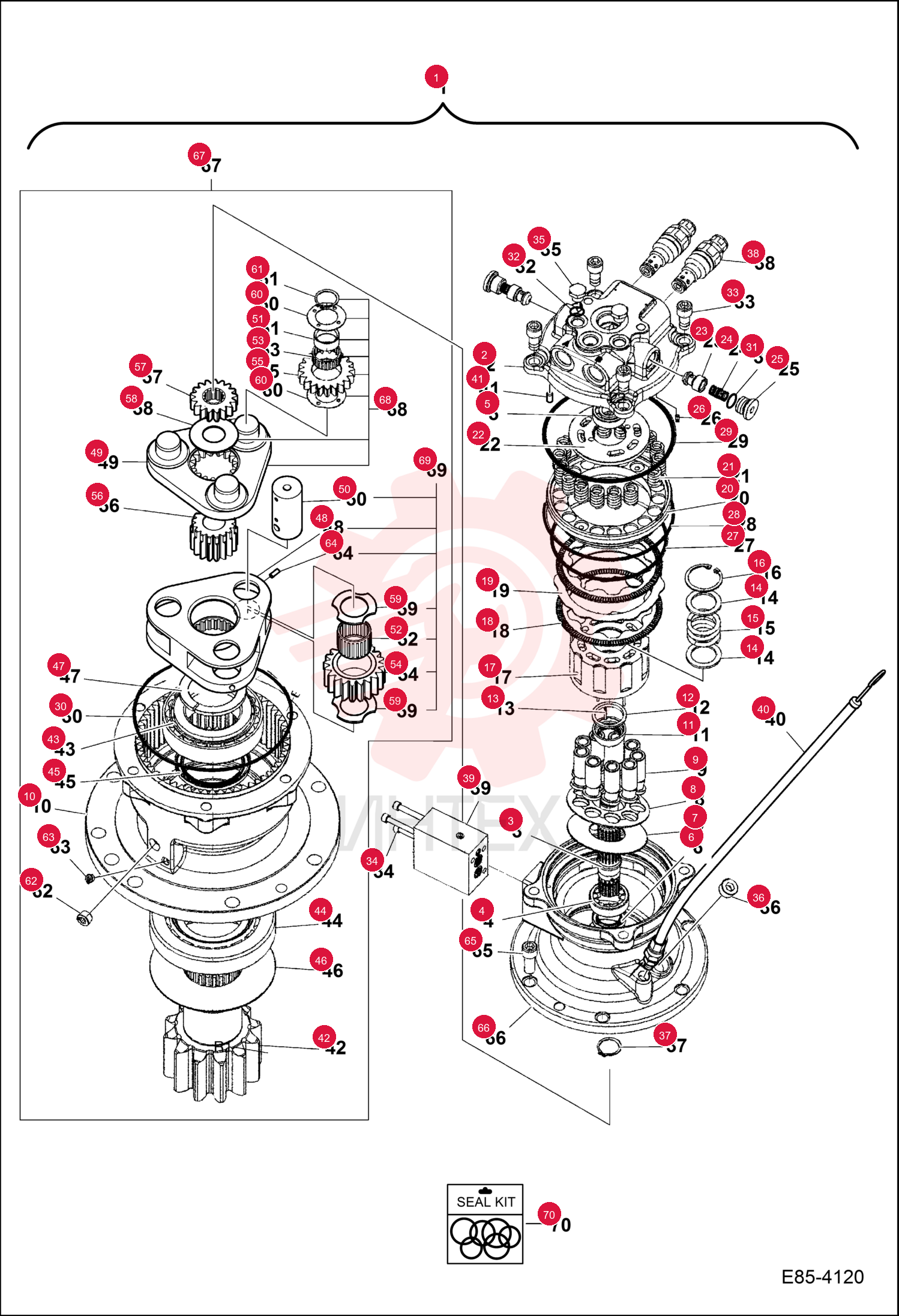

MOTOR, SLEW 7281410

MOTOR, SLEW 7281410

MOTOR, SLEW 7281410

1 7281410

  • 7281410 - MOTOR
  • SLEW
  • Ref. 2-66 - Was 7276983

2 7028990

  • 7028990 - MOTOR
  • SLEW
  • Ref. 2-66

3 7277010

  • 7277010 - HOUSING
  • VALVE

4 7007392

  • 7007392 - SHAFT DRIVE

5 7007234

  • 7007234 - BEARING ROLLER

6 7007403

  • 7007403 - BEARING BALL

7 7007404

  • 7007404 - SEAL OIL

8 7024786

  • 7024786 - PLATE
  • SHOE

9 7007387

  • 7007387 - PLATE RETAINER

10 7007410

  • 7007410 - PISTON ASSEMBLY

11 7007388

  • 7007388 - BALL THRUST

12 7007054

  • 7007054 - WASHER

13 7007389

  • 7007389 - ROLLER

14 7004015

  • 7004015 - WASHER

15 7007390

  • 7007390 - SPRING

16 7007884

  • 7007884 - RING SNAP

17 7007411

  • 7007411 - BLOCK CYLINDER

18 7003820

  • 7003820 - PLATE FRICTION

19 7003821

  • 7003821 - PLATE MATING

20 7007393

  • 7007393 - PISTON BRAKE

21 7007391

  • 7007391 - SPRING BRAKE

22 7029305

  • 7029305 - PLATE
  • VALVE

23 7007218

  • 7007218 - ROLLER PLUNGER

24 7277011

  • 7277011 - PLUNGER

25 7007219

  • 7007219 - SPRING CHECK

26 7007199

  • 7007199 - PLUG

27 7007848

  • 7007848 - PIN PARALLEL

28 7004658

  • 7004658 - O-RING

29 7004659

  • 7004659 - O-RING

30 7004660

  • 7004660 - O-RING

31 7004661

  • 7004661 - O-RING

32 7284557

  • 7284557 - O-RING
  • Was 7007911

33 7283267

  • 7283267 - O-RING
  • Was 7007906

34 7007757

  • 7007757 - BOLT SOCKET

35 7007731

  • 7007731 - BOLT SOCKET

36 7029307

  • 7029307 - PLUG

37 7004675

  • 7004675 - PLUG

38 7007873

  • 7007873 - RING SNAP

39 7029482

  • 7029482 - VALVE
  • RELIEF

40 7029472

  • 7029472 - VALVE
  • BRAKE

41 7028808

  • 7028808 - DIPSTICK
  • OIL

42 7029257

  • 7029257 - PIN
  • STRAIGHT

43 7024791

  • 7024791 - SHAFT

44 7007451

  • 7007451 - BEARING TAPER ROLLER

45 7007405

  • 7007405 - BEARING TAPER ROLLER

46 7007406

  • 7007406 - SEAL OIL

47 7007396

  • 7007396 - COVER BEARING

48 7007203

  • 7007203 - COLLAR HALF

49 7028872

  • 7028872 - CARRIER
  • PINION

50 7028871

  • 7028871 - CARRIER
  • PINION

51 7029253

  • 7029253 - PIN

52 7024794

  • 7024794 - RING
  • INNER

53 7024795

  • 7024795 - BEARING
  • NEEDLE

54 7007233

  • 7007233 - BEARING NEEDLE

55 7024796

  • 7024796 - GEAR

56 7024797

  • 7024797 - GEAR

57 7007400

  • 7007400 - GEAR SUN NO.2

58 7007210

  • 7007210 - GEAR NO.1 SUN

59 7007212

  • 7007212 - WASHER NO.1 THRUST

60 7024798

  • 7024798 - PLATE

61 7007325

  • 7007325 - WASHER THRUST

62 7007873

  • 7007873 - RING SNAP

63 7004674

  • 7004674 - PLUG PT3/8

64 7004671

  • 7004671 - PLUG PT 1/8

65 7024800

  • 7024800 - PIN
  • SPRING

66 7007760

  • 7007760 - BOLT SOCKET

67 7276972

  • 7276972 - KIT GEAR AND SHAFT
  • Ref. 10
  • 30 & 42-64

68 7024872

  • 7024872 - CARRIER
  • MOTOR
  • Ref. 49
  • 51
  • 53
  • 55
  • 58
  • 60 & 61

69 7028870

  • 7028870 - GEAR
  • IDLE ASSY
  • Ref. 48
  • 50
  • 52
  • 54
  • 59 & 64

70 7007415

  • 7007415 - KIT
  • SEAL
  • Ref. 27-31 & 45
