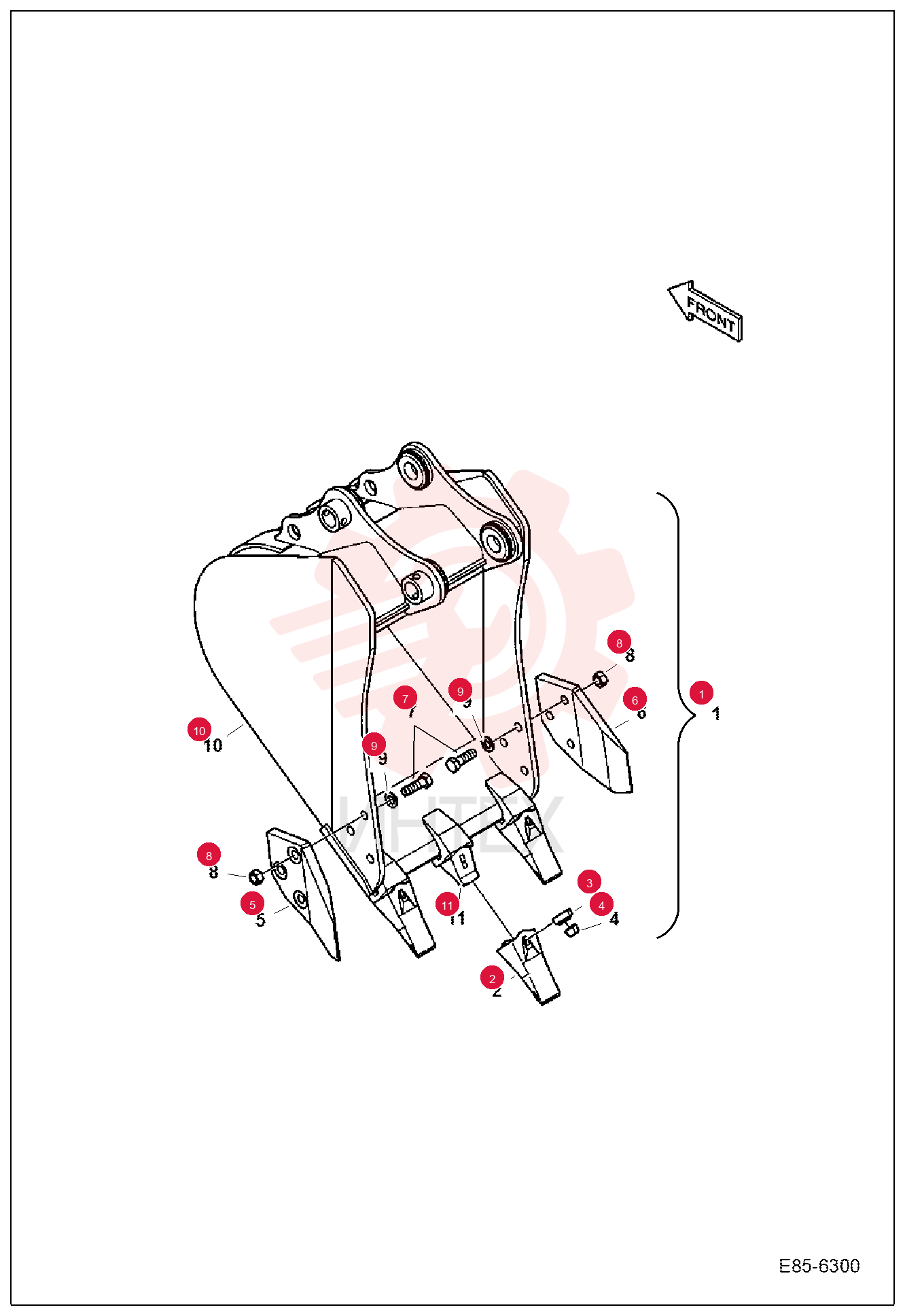

BUCKET 7281489 (2)

BUCKET 7281489 (2)

BUCKET 7281489 (2)

1 7281489

  • 7281489 - BUCKET
  • Ref. 2-11

2 7010465

  • 7010465 - POINT
  • TOOTH

3 7004935

  • 7004935 - PIN LOCK

4 7004938

  • 7004938 - PIN LOCK RUBBER
  • Was 7029347

5 7004942

  • 7004942 - CUTTER SIDE L

6 7004941

  • 7004941 - CUTTER SIDE R

7 7007714

  • 7007714 - BOLT

8 7008299

  • 7008299 - NUT
  • M20X2.5

9 7004524

  • 7004524 - WASHER HARDEN

10 7008212

  • 7008212 - BUCKET

11 7028665

  • 7028665 - ADAPTER
