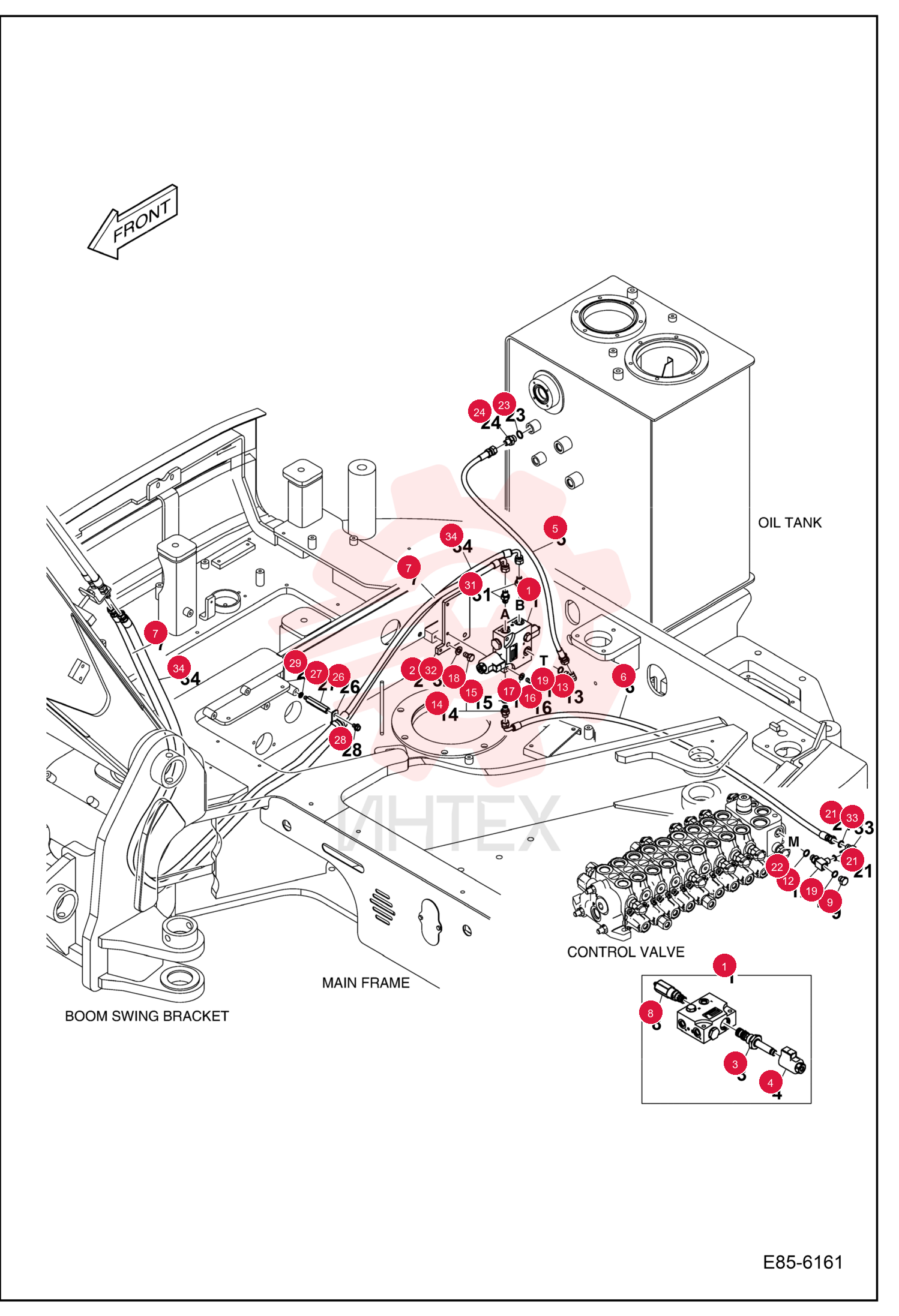

VALVE 7288568 (1)

VALVE 7288568 (1)

VALVE 7288568 (1)

1 7288568

  • 7288568 - VALVE

2 7369582

  • 7369582 - PLATE VALVE

3 7288574

  • 7288574 - VALVE
  • SOLENOID

4 7028916

  • 7028916 - COIL
  • SOLENOID

5 7005475

  • 7005475 - HOSE

6 7369583

  • 7369583 - HOSE HYDRAULIC

7 7369584

  • 7369584 - HOSE HYDRAULIC

8 7288569

  • 7288569 - VALVE

9 7004732

  • 7004732 - PLUG

10 7369585

  • 7369585 - FITTING HYDRAULIC TEE

11 7004713

  • 7004713 - ELBOW

12 7287293

  • 7287293 - ADAPTER
  • FILTER

13 7007906

  • 7007906 - O-RING

14 7007660

  • 7007660 - BOLT

15 7278246

  • 7278246 - WASHER

16 7007626

  • 7007626 - BOLT

17 7007906

  • 7007906 - O-RING

18 7010493

  • 7010493 - O-RING

19 7007961

  • 7007961 - O-RING

20 7007909

  • 7007909 - O-RING

21 7004694

  • 7004694 - ADAPTER

22 7003902

  • 7003902 - CLIP

23 7029436

  • 7029436 - STUD

24 7005629

  • 7005629 - BOLT

25 7276756

  • 7276756 - WASHER

26 7369586

  • 7369586 - ADAPTER FILTER

27 7288588

  • 7288588 - WASHER

28 7369587

  • 7369587 - HOSE HYDRAULIC

29 7369588

  • 7369588 - FITTING HYDRAULIC ELBOW
