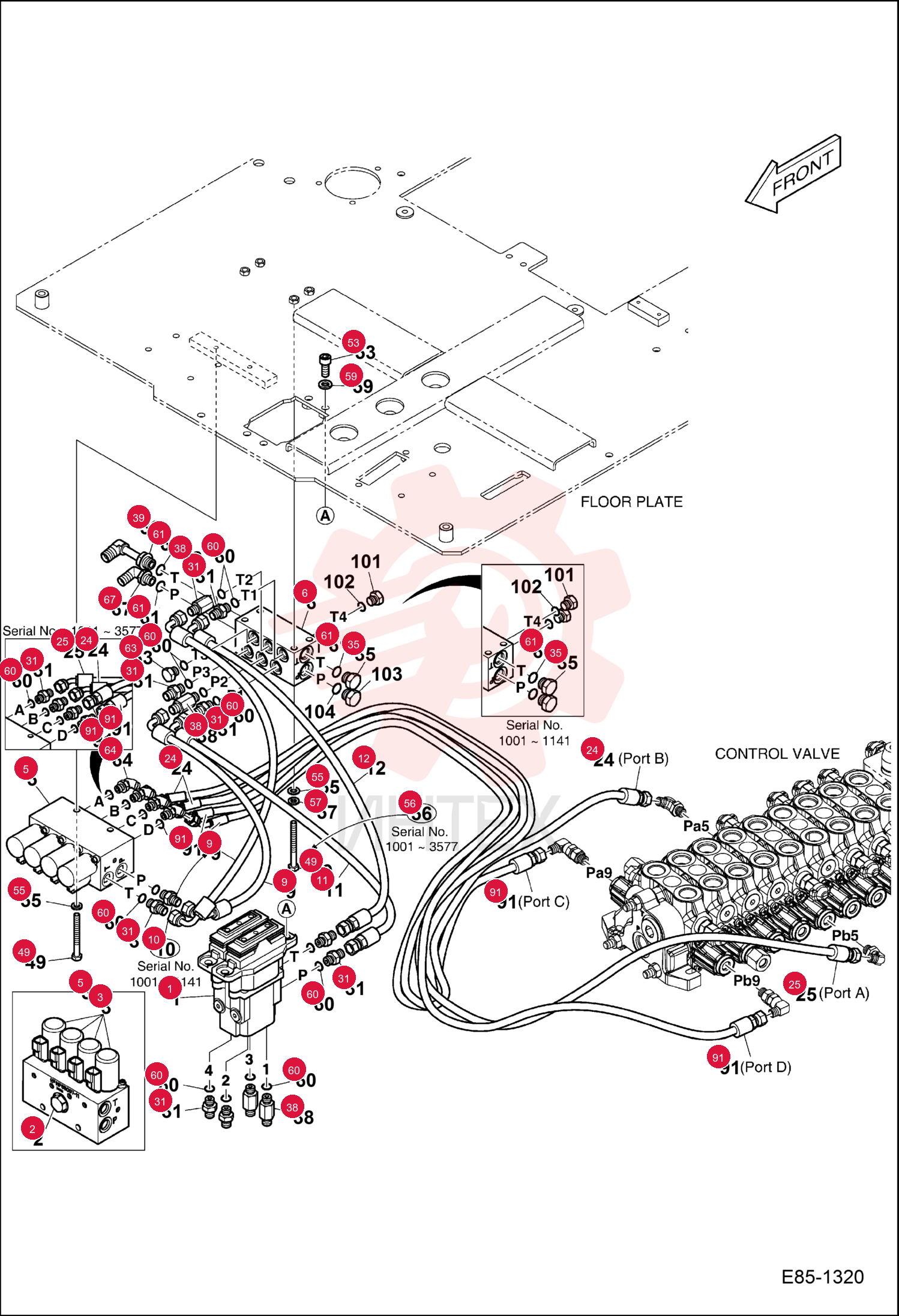

VALVE PEDAL 7283299 (3)

VALVE PEDAL 7283299 (3)

VALVE PEDAL 7283299 (3)

1 7283299

  • 7283299 - VALVE PEDAL

2 7028873

  • 7028873 - SCREEN

3 7020878

  • 7020878 - PROPORTIONAL SOLENOID
  • Was 7028845

4 7028846

  • 7028846 - VALVE PRESSURE REDUCING
  • W/Ref. 2
  • 3

5 7028697

  • 7028697 - BLOCK
  • PORT

6 7332426

  • 7332426 - HOSE HYDRAULIC

7 7029102

  • 7029102 - HOSE
  • HYD

8 7029102

  • 7029102 - HOSE
  • HYD

9 7029102

  • 7029102 - HOSE
  • HYD

10 7021850

  • 7021850 - HOSE HYDRAULIC ASSY

11 7005413

  • 7005413 - HOSE PF1/4-340L

12 7005448

  • 7005448 - HOSE 245L

13 7005361

  • 7005361 - HOSE PF1/4-310L

14 7029795

  • 7029795 - HOSE

15 7029105

  • 7029105 - HOSE
  • HYD

16 7018658

  • 7018658 - HOSE
  • HYD

17 7004683

  • 7004683 - ADAPTER

18 7004683

  • 7004683 - ADAPTER

19 7004683

  • 7004683 - ADAPTER

20 7004683

  • 7004683 - ADAPTER

21 7004734

  • 7004734 - PLUG

22 7004734

  • 7004734 - PLUG

23 7004702

  • 7004702 - ADAPTER

24 7029002

  • 7029002 - FITTING
  • ELBOW

25 7007665

  • 7007665 - BOLT

26 7007665

  • 7007665 - BOLT

27 7007747

  • 7007747 - BOLT HEXSOCKET M10X25

28 7276756

  • 7276756 - WASHER
  • Was 7007834

29 7007667

  • 7007667 - BOLT

30 7007816

  • 7007816 - WASHER

31 7007835

  • 7007835 - WASHER SPRING

32 7283267

  • 7283267 - O-RING
  • Was 7007906

33 7283267

  • 7283267 - O-RING
  • Was 7007906

34 7284551

  • 7284551 - O-RING
  • Was 7007909

35 7284551

  • 7284551 - O-RING
  • Was 7007909

36 7004732

  • 7004732 - PLUG

37 7004755

  • 7004755 - ELBOW

38 7004755

  • 7004755 - ELBOW

39 7004716

  • 7004716 - ELBOW

40 7005278

  • 7005278 - HOSE

41 7029107

  • 7029107 - HOSE
  • HYD
