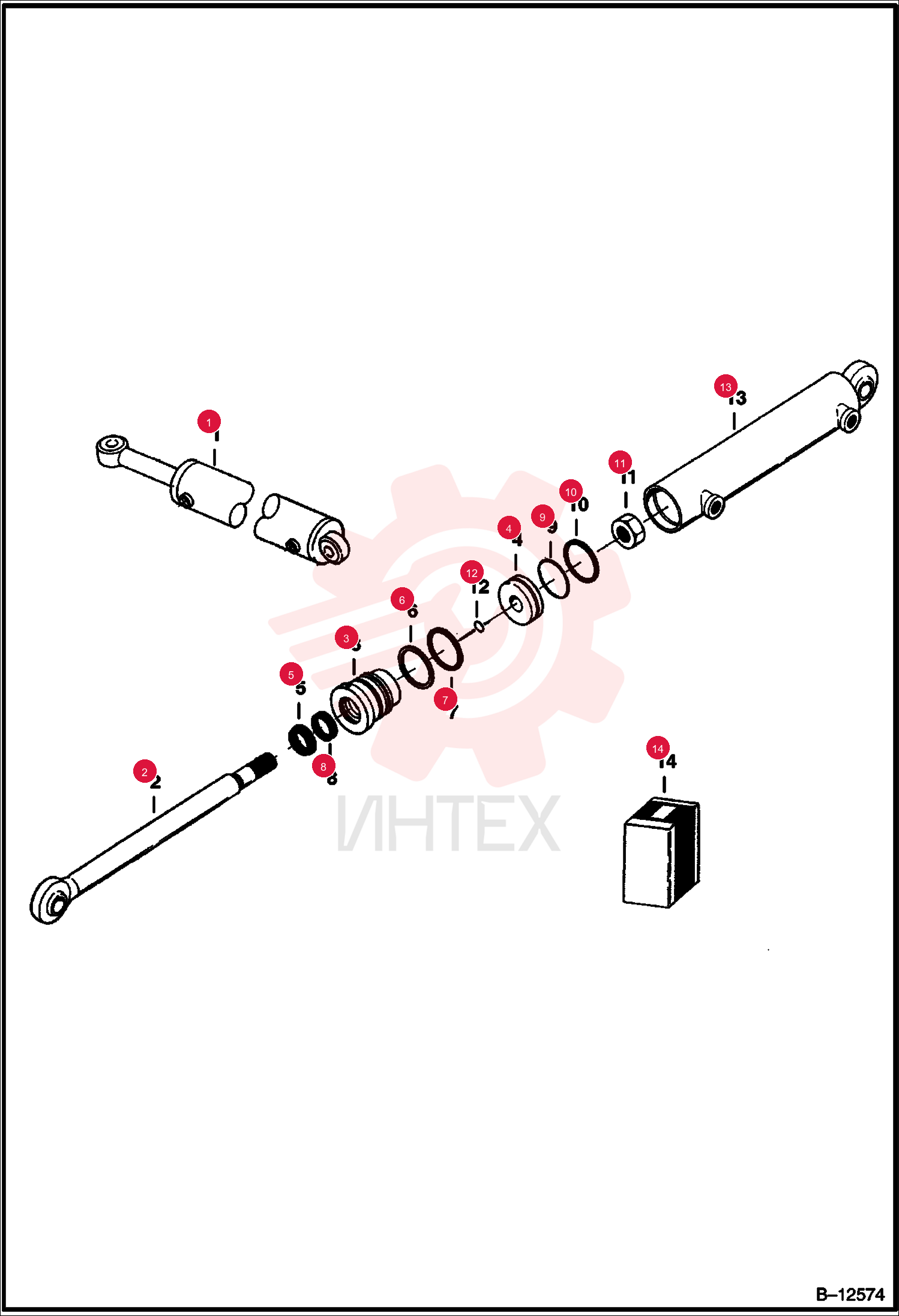

PISTON 6593092

PISTON 6593092

PISTON 6593092

1 6593092

  • 6593092 - PISTON

2 6690707

  • 6690707 - WIPER
  • ROD CYL
  • Was 6665086

3 73K228

  • 73K228 - RING
  • BACK-UP

4 54K40208

  • 54K40208 - O-RING
  • Was 25K40208

5 6667326

  • 6667326 - SEAL

6 54K30202

  • 54K30202 - O-RING
  • Was 25K30202

7 1522534

  • 1522534 - SEAL

8 6810539

  • 6810539 - NUT
  • Was 6804592

9 82K230

  • 82K230 - O-RING
  • Was 58K000230B

10 6532213

  • 6532213 - CASE

11 7135540

  • 7135540 - SEAL KIT
  • Ref. 5-12 - Was 6803324
