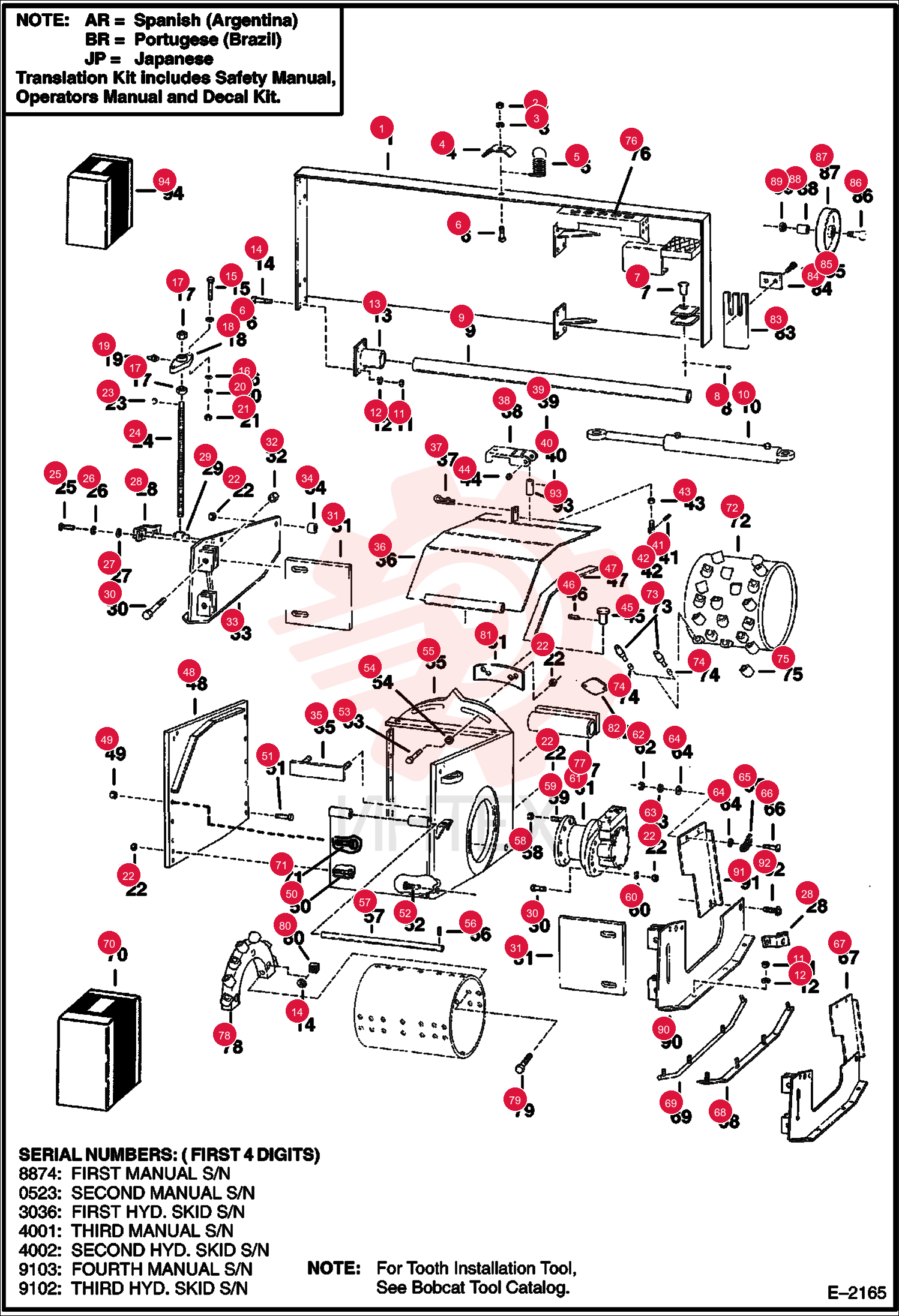

FRAME 6650159 (2)
1 6650159
- 6650159 - FRAME
2 61D5
- 61D5 - NUT HEX FINISHED GR5
3 4E5
- 4E5 - WASHER
4 6648599
- 6648599 - CLAMP
5 30H82
- 30H82 - CLAMP INSULATED
- Was 6660002
6 17C520
- 17C520 - BOLT 5
7 1F832
- 1F832 - COTTERPIN
8 6905473
- 6905473 - ROD
- Was 6650161
9 61D8
- 61D8 - NUT 5
10 4E8
- 4E8 - WASHER
11 6650162
- 6650162 - END CAP
12 17C624
- 17C624 - BOLT 5
13 25E17
- 25E17 - WASHER FLAT PLAIN
14 7D16
- 7D16 - NUT
- Was 6654890
15 6659867
- 6659867 - BEARING
16 10H35
- 10H35 - FTG GREASE STRAIGHT
17 4E6
- 4E6 - WASHER
18 61D6
- 61D6 - NUT HEX FINISHED GR5
19 59D12
- 59D12 - NUT
20 5J606
- 5J606 - KEY
21 6661760
- 6661760 - SCREW
- adjusting
22 17C716
- 17C716 - BOLT
23 4E7
- 4E7 - WASHER
24 25E17
- 25E17 - WASHER FLAT PLAIN
25 6650176
- 6650176 - BRACKET
26 6662310
- 6662310 - BRACKET
27 6660275
- 6660275 - SWIVEL
- block
28 6661761
- 6661761 - SWIVEL
- block
29 17C1032
- 17C1032 - BOLT
30 6659863
- 6659863 - FLAP
31 59D10
- 59D10 - NUT
32 6659864
- 6659864 - PLATE
- SKID
33 6662259
- 6662259 - BUSHING
34 6650167
- 6650167 - CLAMP
35 6655953
- 6655953 - DOOR
36 6648587
- 6648587 - PIN
- SNAP
37 6563681
- 6563681 - HANDLE
38 38C624
- 38C624 - BOLT 5
- Was 6564599
39 33G404
- 33G404 - SET SCRW5
40 6599361
- 6599361 - PIN 5
41 6565629
- 6565629 - SCREW
42 6565627
- 6565627 - NUT 5
43 85D5
- 85D5 - NUT PRETRQ HEX LOCK
44 6650166
- 6650166 - PIN
45 1F832
- 1F832 - COTTERPIN
46 6610379
- 6610379 - WHEEL NUT
47 17C1252
- 17C1252 - BOLT
- Was 6654220
48 17C1240
- 17C1240 - BOLT
49 17C1240
- 17C1240 - BOLT
- Was 6654219
50 37C1240
- 37C1240 - BOLT
- Was 17C001232B
51 25E27
- 25E27 - WASHER
52 6650168
- 6650168 - HOUSING
53 14J2524
- 14J2524 - PIN
- ROLL
54 6650171
- 6650171 - PIN
55 6651480
- 6651480 - WHEEL NUT
56 6650213
- 6650213 - STUD
57 4E10
- 4E10 - WASHER
58 12D8
- 12D8 - NUT HEX MACH SCREW
59 17E8
- 17E8 - WASHER
60 25E8
- 25E8 - WSHR
61 41G812
- 41G812 - SCREW
62 6655954
- 6655954 - WEAR BAR
- flat
63 6655955
- 6655955 - WEARBAR
- round
64 6650191
- 6650191 - STUD
65 7257786EF
- 7257786EF - BIT PLANER
- NA - all purpose - sharp point
66 6659946EF
- 6659946EF - BIT
- TOOTH CARBIDE EF
67 7285499
- 7285499 - BIT
- PLANER
- heavy duty - Was 6659946
68 7280508
- 7280508 - BIT
- PLANER
- concrete - Was 6650138
69 7280507
- 7280507 - BIT
- PLANER
- NA - all purpose - sharp point - 20 mm (.75") dia bit shank - Was 7257786
70 7311787
- 7311787 - BIT PLANER
- EMEA - all purpose - sharp point
71 7287132
- 7287132 - BIT
- PLANER
- NA - all purpose - blunt point for longer life - Was 6650137
72 7312187
- 7312187 - BIT PLANER
- EMEA - all purpose - blunt point for longer life
73 6650137EF
- 6650137EF - BIT
- EF TOOTH BLUNT POINT
- NA - all purpose - blunt point for longer life
74 6650138EF
- 6650138EF - BIT
- TOOTH CARBIDE EF
75 6664475
- 6664475 - RETAINR 5
76 6577917
- 6577917 - STEP
77 6665660
- 6665660 - TUBE
- Welded on
78 17C1040
- 17C1040 - BOLT
79 61D10
- 61D10 - NUT
- Was 6707999
80 6667551
- 6667551 - COVER
81 6668932
- 6668932 - SCRAPER
82 6668954
- 6668954 - PLATE
83 84G3712
- 84G3712 - SCREW THD ROLLING TT
84 38C1264
- 38C1264 - BOLT
- shoulder
85 6670683
- 6670683 - WHEEL
- W/Ref. 88 - Was 6668933
86 6668934
- 6668934 - BUSHING
87 59D10
- 59D10 - NUT
88 6669028
- 6669028 - PLATE
- SKID
89 6671104
- 6671104 - MOUNT
- Was 6669029
90 84G3710
- 84G3710 - SCREW
91 6565628
- 6565628 - NUT
92 6716761AR
- 6716761AR - KIT
- TRANSLATION
- translation - SEE NOTE
93 6716761BR
- 6716761BR - KIT
- TRANSLATION
- translation - SEE NOTE
94 6716760JP
- 6716760JP - KIT
- DECAL
- decal - SEE NOTE
95 6716760BR
- 6716760BR - KIT
- DECAL
- decal - SEE NOTE
96 6716760AR
- 6716760AR - KIT
- DECAL
- decal - SEE NOTE
