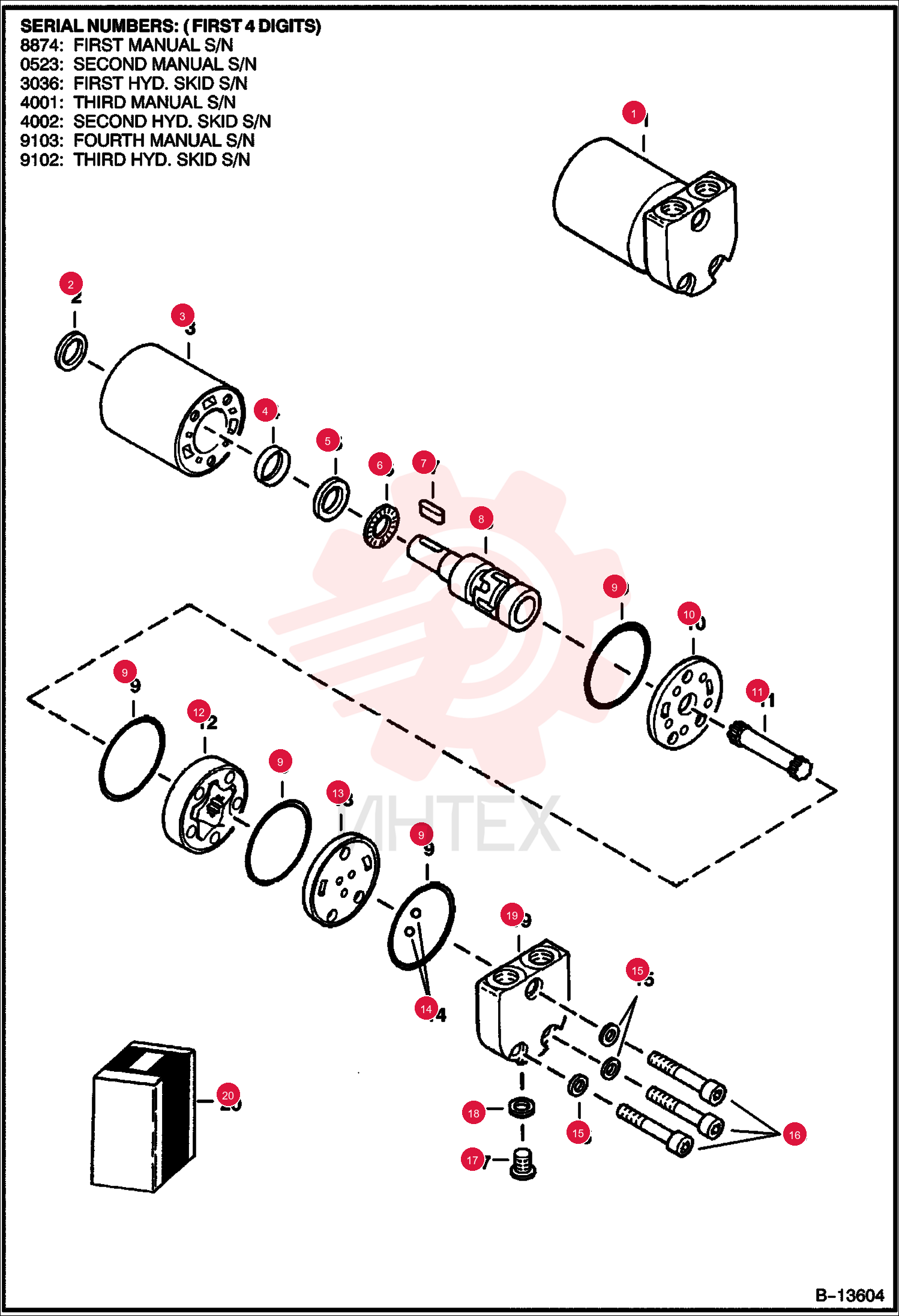

SEAL 6660087

SEAL 6660087

SEAL 6660087

1 6660087

  • 6660087 - SEAL

2 6660088

  • 6660088 - RACE

3 6660089

  • 6660089 - BEARING

4 6662272

  • 6662272 - KEY
  • Was 7J002012B

5 6660094

  • 6660094 - O-RING

6 6660091

  • 6660091 - PLATE

7 6667945

  • 6667945 - SHAFT
  • Was 6660092

8 6660093

  • 6660093 - GEAR

9 6660095

  • 6660095 - PLATE

10 6660100

  • 6660100 - WASHER

11 6660099

  • 6660099 - PLUG

12 6660098

  • 6660098 - WASHER

13 6660097

  • 6660097 - COVER

14 6660103

  • 6660103 - SEAL KIT
  • W/Ref. 2
  • 4
  • 9
  • 15 & 18
