(B110B) - BACKHOE LOADER TIER 3 (2008)
/

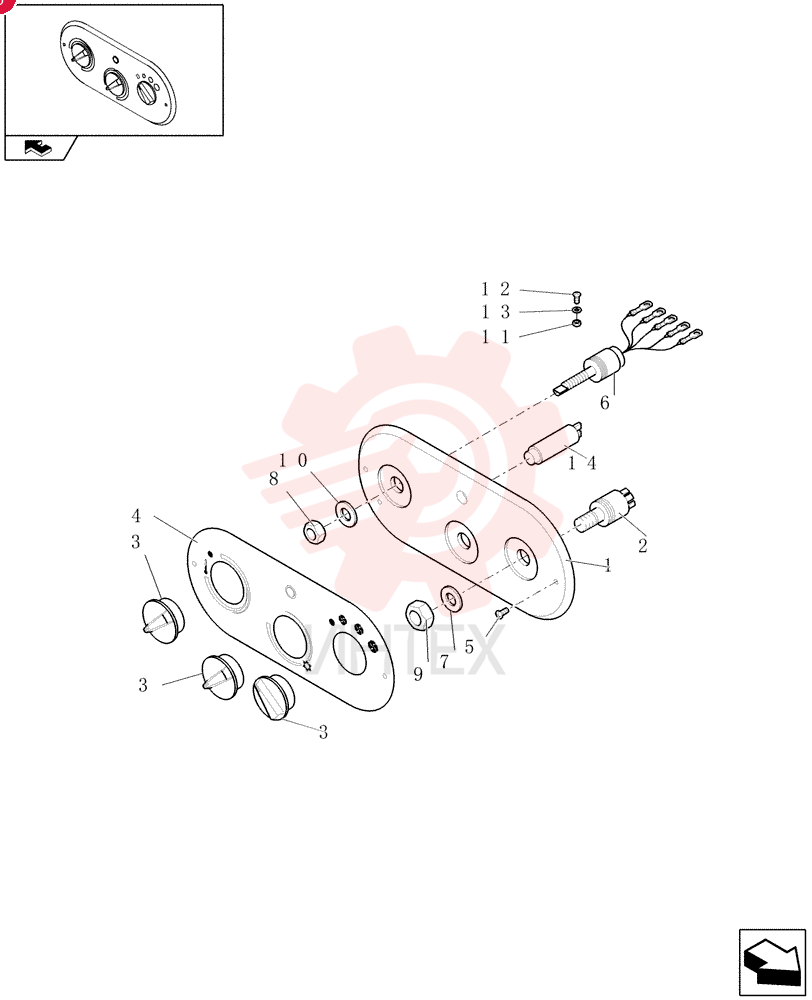

DASHBOARD 87314743 (1)

DASHBOARD 87314743 (1)

DASHBOARD 87314743 (1)

1 87314743

  • 87314743 - DASHBOARD

2 87314747

  • 87314747 - SWITCH ASSY

3 87314749

  • 87314749 - KNOB

4 87567694

  • 87567694 - SCREEN

5 87314750

  • 87314750 - DECAL

6 12678401

  • 12678401 - SELF-TAP SCREW
  • Flat Hd
  • M4 x 2.5 x 14mm

7 87314753

  • 87314753 - POTENTIOMETER

8 87358348

  • 87358348 - COPPER WASHER

9 87334860

  • 87334860 - NUT

10 87334861

  • 87334861 - NUT

11 87358349

  • 87358349 - COPPER WASHER

12 14372671

  • 14372671 - SPRING NUT
  • M4.2
  • U
  • 12.4mm long

13 15693507

  • 15693507 - SCREW
  • Over Head
  • M4.8 x 1.6 x 22mm

14 12601174

  • 12601174 - WAVE WASHER
  • Wave
  • M4.3

15 87314751

  • 87314751 - BULB
