(B110B) - BACKHOE LOADER TIER 3 (2008)
/

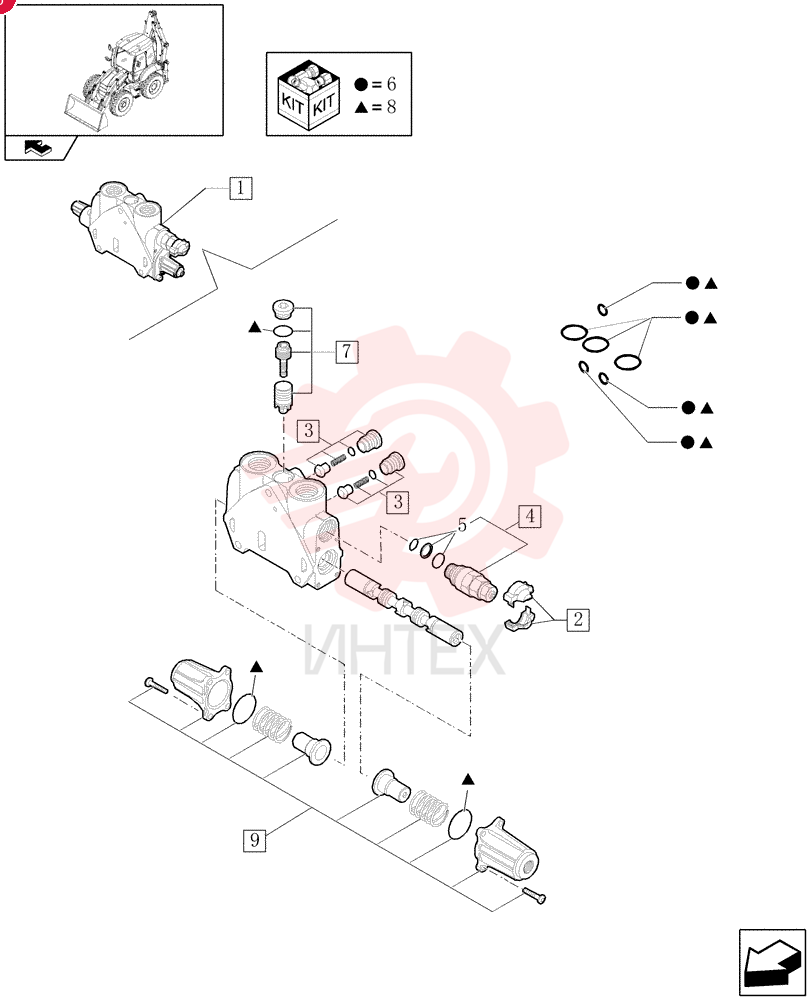

VALVE SECTION 87346911

VALVE SECTION 87346911

VALVE SECTION 87346911

1 87346911

  • 87346911 - VALVE SECTION

2 85811934

  • 85811934 - KIT
  • Half
  • Orange

3 85811938

  • 85811938 - KIT
  • Check Valve

4 85812116

  • 85812116 - VALVE PRESSURE RELIE

5 85811933

  • 85811933 - SEAL KIT
  • Secondary Valve

6 85819148

  • 85819148 - SEAL KIT
  • Between Control Valve Sections

7 85819378

  • 85819378 - KIT

8 85824281

  • 85824281 - SEAL KIT
  • Control Valve Section
  • Complete

9 87346914

  • 87346914 - KIT
