(B110B) - BACKHOE LOADER TIER 3 (2008)
/

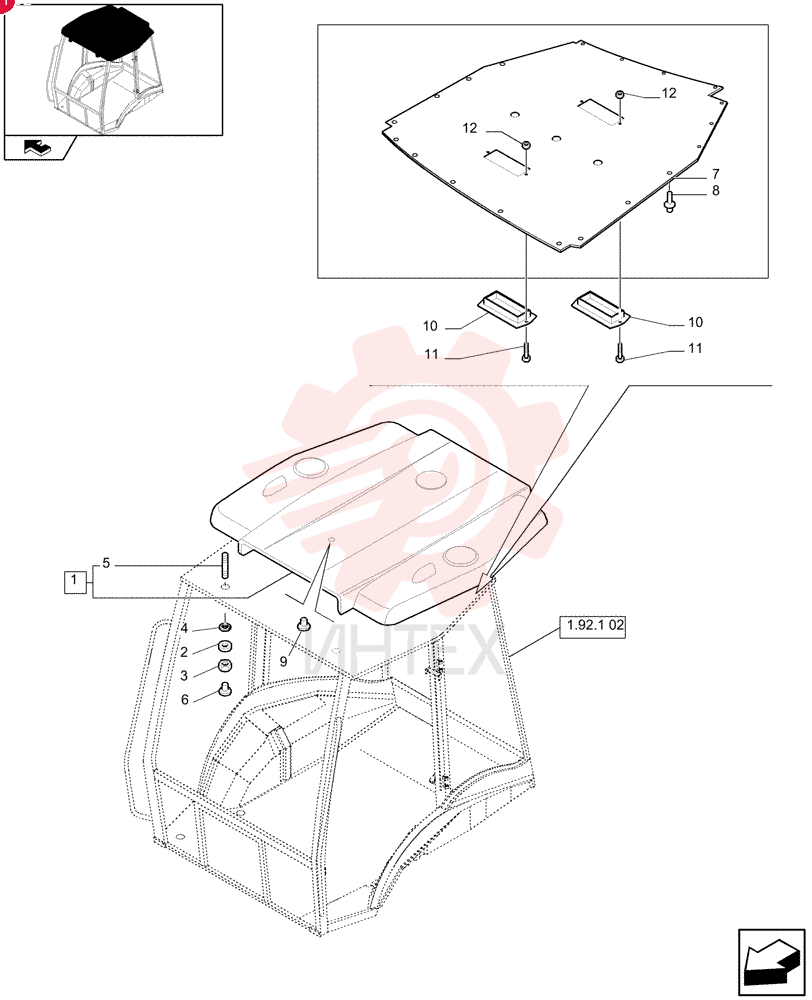

ROOF 87315646

ROOF 87315646

ROOF 87315646

1 87315646

  • 87315646 - ROOF

2 87315647

  • 87315647 - ROOF

3 87349055

  • 87349055 - ROOF

4 87349058

  • 87349058 - ROOF

5 12647004

  • 12647004 - WASHER
  • 8.15mm ID x 25mm OD x 2.5mm Thk

6 16104111

  • 16104111 - NUT
  • Prevailing Torque
  • M8
  • 1.25 Pitch
  • 10.6mm High
  • Cl 08
  • ZND

7 85801801

  • 85801801 - RUBBER SEAL
  • 6mm ID x 24mm OD x 2mm Thk

8 13517021

  • 13517021 - STUD
  • M8 x 12mm x 25mm
  • Cl 8.8

9 87350247

  • 87350247 - PLUG
  • Light Grey

10 87319727

  • 87319727 - ROOF LINING

11 5162852

  • 5162852 - RIVET
  • 7.3mm OD x 12mm L

12 85805777

  • 85805777 - PLUG
  • Black

13 87318763

  • 87318763 - PLUG

14 14440327

  • 14440327 - SCREW
  • Flat Csk Hd
  • M4 x 20mm
  • Cl 8.8

15 14084011

  • 14084011 - FLANGE NUT
  • M4 x .7
  • Flg
