(B110B) - BACKHOE LOADER TIER 3 (2008)
/

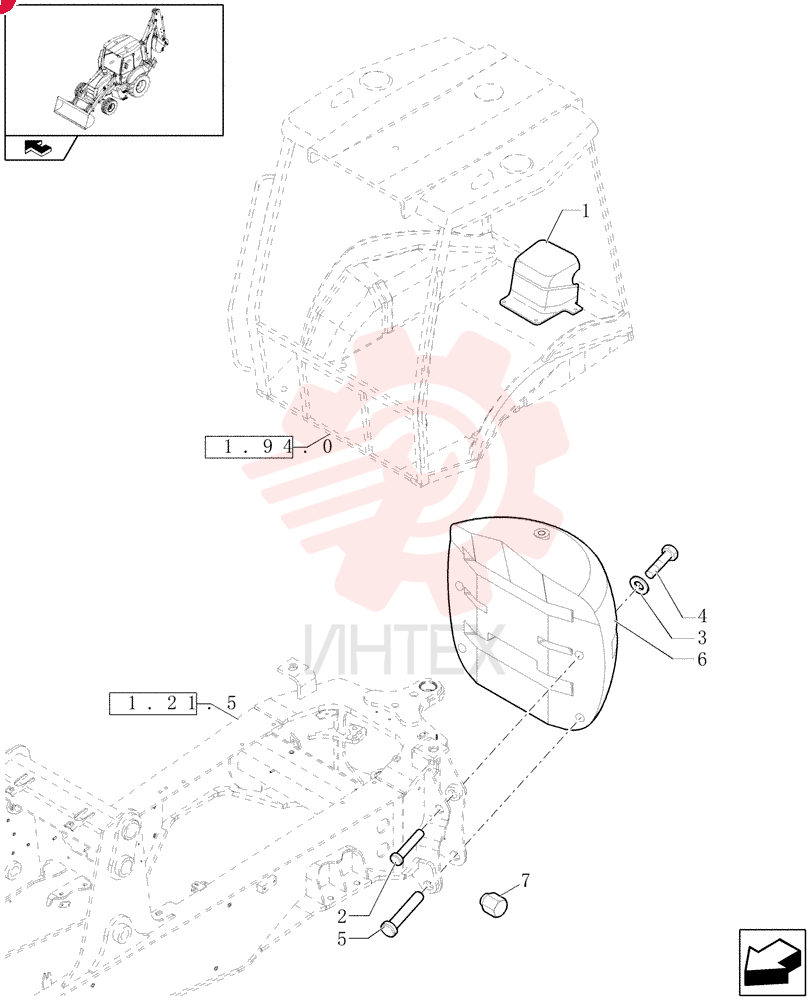

SOFT TRIM 87387648

SOFT TRIM 87387648

SOFT TRIM 87387648

1 87387648

  • 87387648 - SOFT TRIM

2 85807935

  • 85807935 - PIN

3 85807951

  • 85807951 - WASHER

4 15998731

  • 15998731 - BOLT
  • Hex
  • M24 x 2 x 180mm
  • Cl 10.9

5 85807934

  • 85807934 - PIN

6 87388774

  • 87388774 - COUNTERWEIGHT

7 85807932

  • 85807932 - PLUG
