(B110B) - BACKHOE LOADER TIER 3 (2008)
/

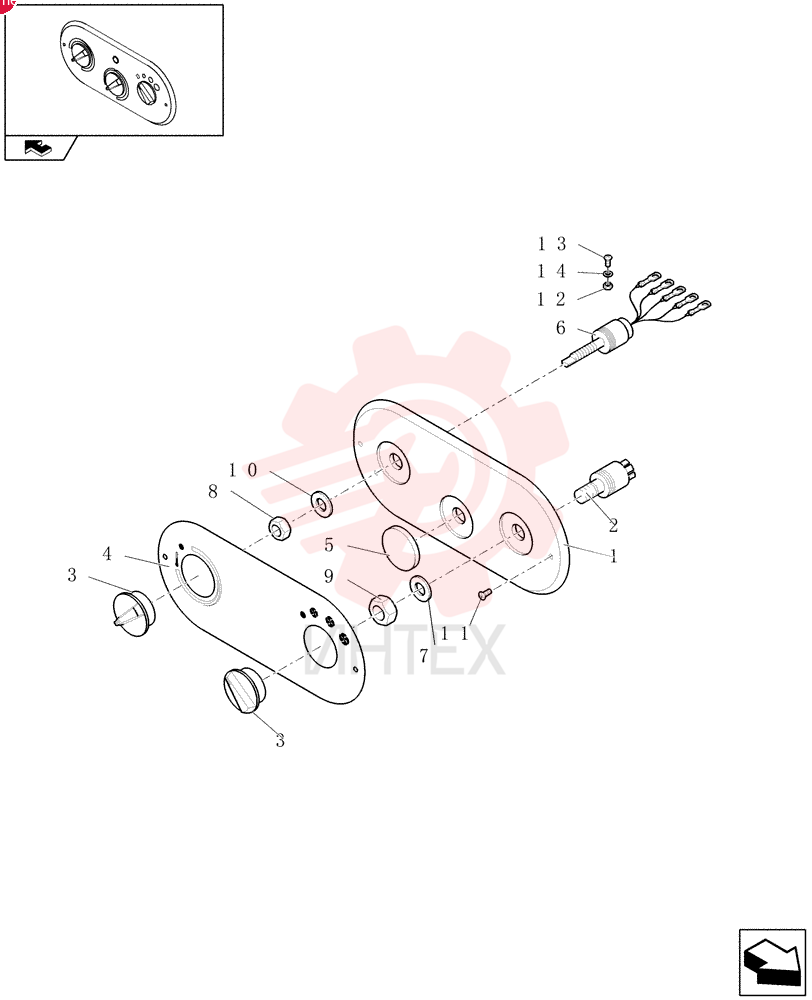

DASHBOARD 87314743 (2)

DASHBOARD 87314743 (2)

DASHBOARD 87314743 (2)

1 87314743

  • 87314743 - DASHBOARD

2 87314747

  • 87314747 - SWITCH ASSY

3 87314749

  • 87314749 - KNOB

4 87316443

  • 87316443 - DECAL

5 87316442

  • 87316442 - PLUG

6 87314753

  • 87314753 - POTENTIOMETER

7 87358348

  • 87358348 - COPPER WASHER

8 87334860

  • 87334860 - NUT

9 87334861

  • 87334861 - NUT

10 87358349

  • 87358349 - COPPER WASHER

11 12678401

  • 12678401 - SELF-TAP SCREW
  • Flat Hd
  • M4 x 2.5 x 14mm

12 86639241

  • 86639241 - NUT
  • Prev Torque
  • M5 x 0.8
  • Cl 8

13 15687801

  • 15687801 - SELF-TAP SCREW
  • Cross Pan Hd
  • M4.8 x 9.50mm

14 12601174

  • 12601174 - WAVE WASHER
  • Wave
  • M4.3
