(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

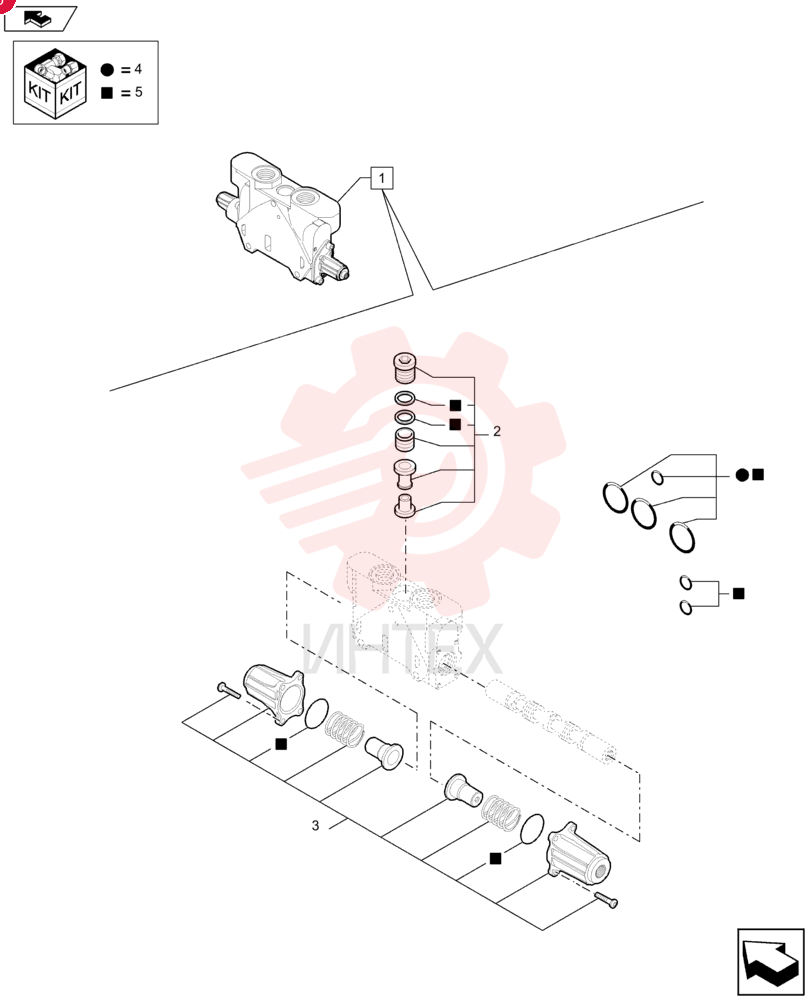

HYD VALVE SECTION 84373285

HYD VALVE SECTION 84373285

HYD VALVE SECTION 84373285

1 84373285

  • 84373285 - HYD VALVE SECTION

2 84232114

  • 84232114 - VALVE

3 85826344

  • 85826344 - KIT
  • Operation

4 85825473

  • 85825473 - SEAL KIT

5 87617657

  • 87617657 - O-RING KIT
