(B110C) - BACKHOE LOADER - TIER 4A (3/12-)
/

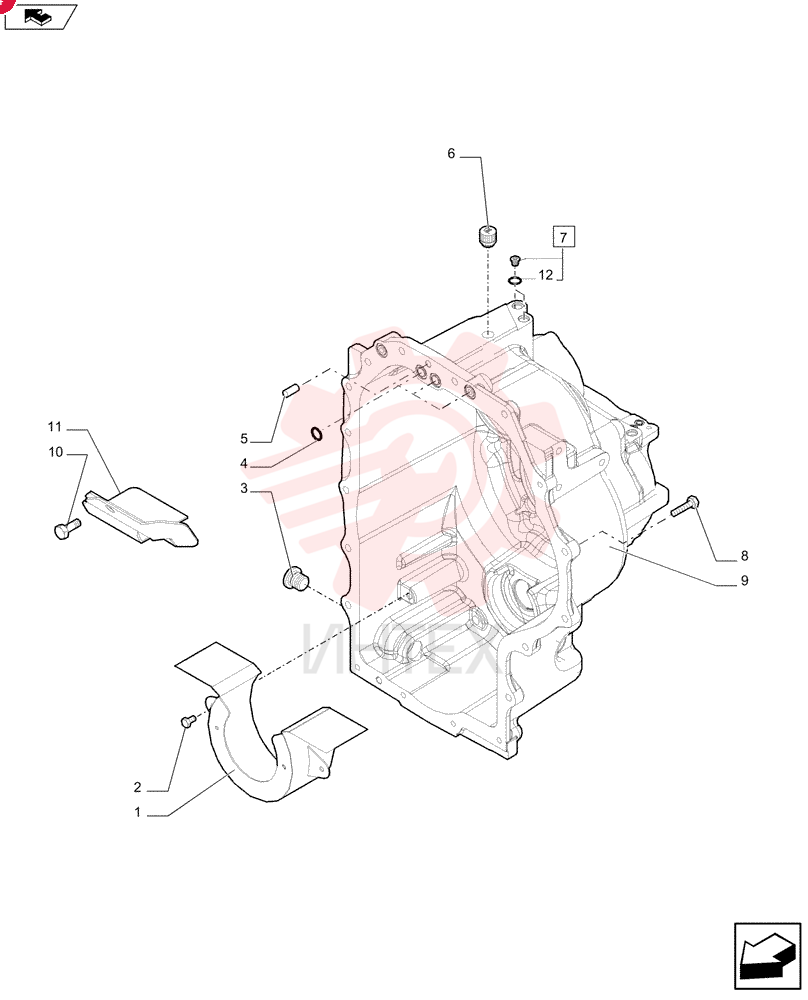

SHIELD 84299411

SHIELD 84299411

SHIELD 84299411

1 84299411

  • 84299411 - SHIELD

2 120104

  • 120104 - BOLT
  • Hex
  • M8 x 1.25 x 20mm
  • Cl 8.8

3 85806012

  • 85806012 - PLUG
  • M30 x 2

4 181141A1

  • 181141A1 - O-RING
  • 17.12mm ID x 2.62mm Width

5 K260177

  • K260177 - PIN

6 1530028C1

  • 1530028C1 - BREATHER

7 9625178

  • 9625178 - PLUG
  • 9/16" - 18 ORB

8 9706704

  • 9706704 - BOLT
  • Hex
  • M10 x 1.5 x 41.58mm
  • Cl 8.8

9 87705453

  • 87705453 - TRANSMISSION HOUSING

10 84299422

  • 84299422 - BOLT

11 84280256

  • 84280256 - SHIELD

12 9617873

  • 9617873 - O-RING
  • 0.078" Thk x 0.468" ID
  • -906
  • Cl 6
  • 90 Duro
